Part Number: 02959907 / Vendor ID Number: 11420 / Custom:
TNMG332-M6

TNMG332-M6
by Seco Tools

Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview
Turning Insert

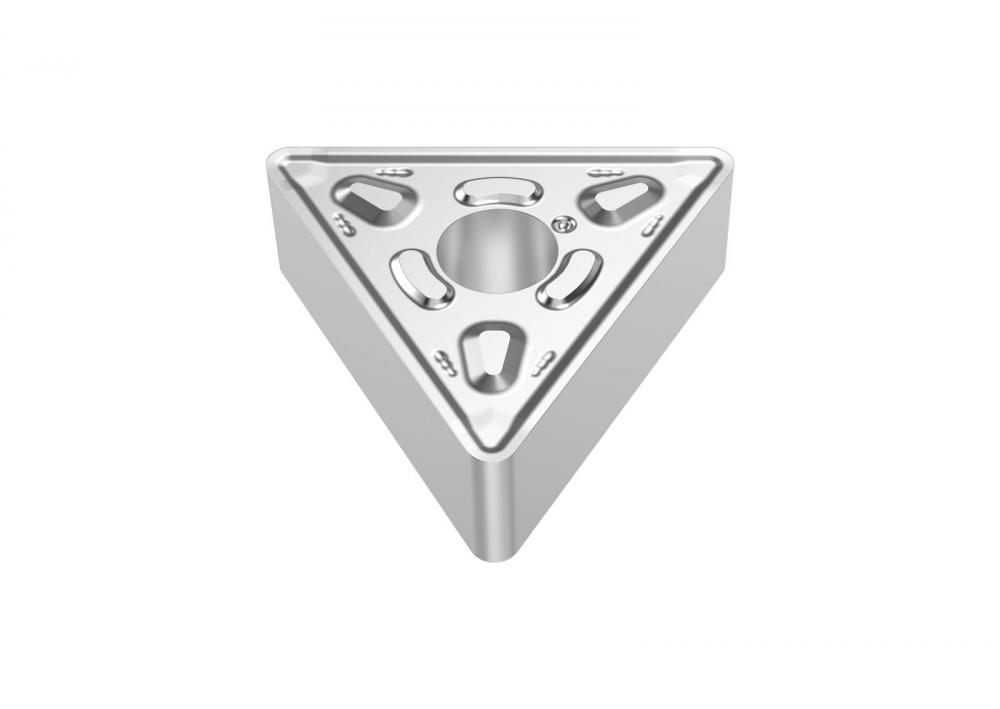

Seco TNMG332-M6 ISO Turning Insert Duratomic - General Turning Insert
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Insert Seat Size:
Chipbreaker:
Additional options that would change other selections
Included Angle:
Additional options that would change other selections
Number of Cutting Edges:
Additional options that would change other selections
Specific Products:
Info & Guides
STEP
Technical Details
Details
Category:
Turning
Subcategory:
External Turning
Subtype:
Turning Indexable Inserts
Chipbreaker:
M6
Grade:
TP1501
Insert Seat Size:
16
AN - Clearance Angle Major (Deg):
0.0
ANSI Code:
TNMG332-M6
Applicable Material:
Optimized-Steels
Brand Name:
Seco
CEDC - Cutting Edge Count:
6
Chip Breaker Type:
M6
Chipbreaker Description:
-M6 for roughing feeds
Corner Radius (Decimal):
0.03
Corner Radius (Metric):
0.80
Cutting Edge Effective Length (Decimal):
0.57
Cutting Edge Effective Length (Metric):
14.50
D1 - Fixing Hole Dia. (In):
0.150
D1 - Fixing Hole Dia. (mm):
3.81
Direction of Hand:
Neutral
EPSR - Insert Included Angle (Deg):
60.0
Fixing Hole Diameter (Decimal):
0.15
Fixing Hole Diameter (Metric):
3.81
Grade Description:
Grade TP1501-carbide, chrome Duratomic® coating, optimized-steels
Gradetype:
Carbide CVD
IC - Inscribed Circle Dia. (In):
0.375
IC - Inscribed Circle Dia. (mm):
9.525
IH - Insert Hand:
Neutral
Included Angle:
60 degrees
Inscribed Circle Diameter:
0.38 Inch
Inscribed Circle Diameter (Metric):
9.53
Item Quantity:
10
Item Weight (lbs.):
0.014

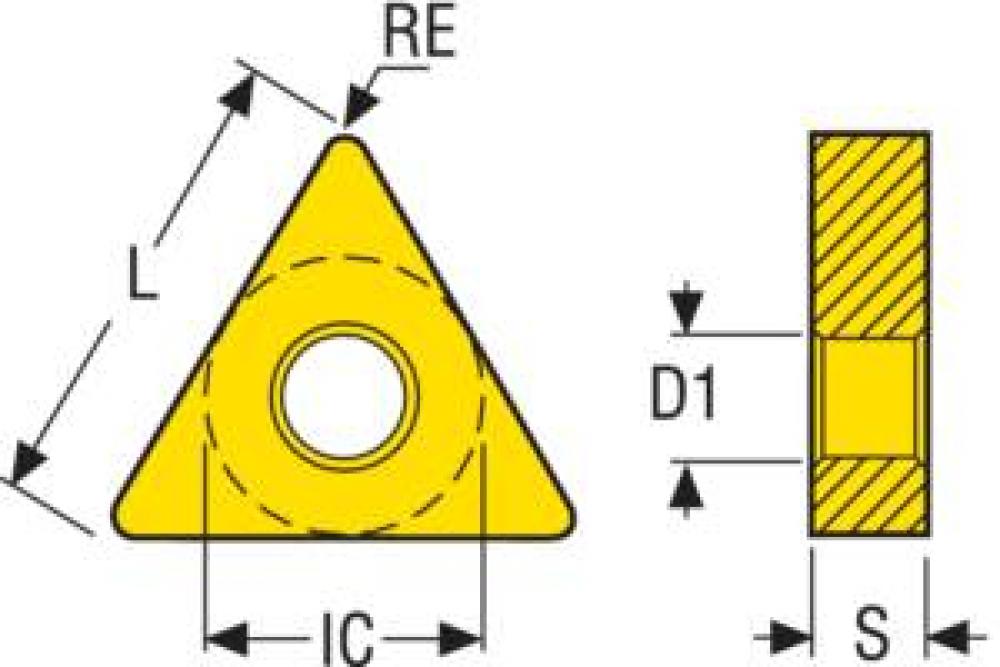

L - Theoretical Cutting Edge Length (In):
0.650
L - Theoretical Cutting Edge Length (mm):
16.5
LE - Cutting Edge Effective Length (In):
0.571
LE - Cutting Edge Effective Length (mm):
14.5
Material:
Carbide
Number of Cutting Edges:
6
Package Height (inches):
0.394
Package Length (inches):
3.543
Package Weight (lbs):
0.14
Package Width (inches):
1.496
Product Series:
TNMG
RE - Radius Value (In):
0.0315
RE - Radius Value (mm):
0.8
S - Insert Thickness (In):
0.187
S - Insert Thickness (mm):
4.76
SC - Insert Shape Code:
T
Series:
Duratomic
Style:
TN1604
Theoretical Cutting Edge Length (Decimal):
0.65
Theoretical Cutting Edge Length (Metric):
16.50
Thickness:
0.19 Inch
Thickness (Metric):
4.76
Unit of Measure:
Imperial
UPC Number:
59907029001000
Weight:
0.014 LB
Manufactured By:
Seco Tools
