Product Overview

Turning Insert

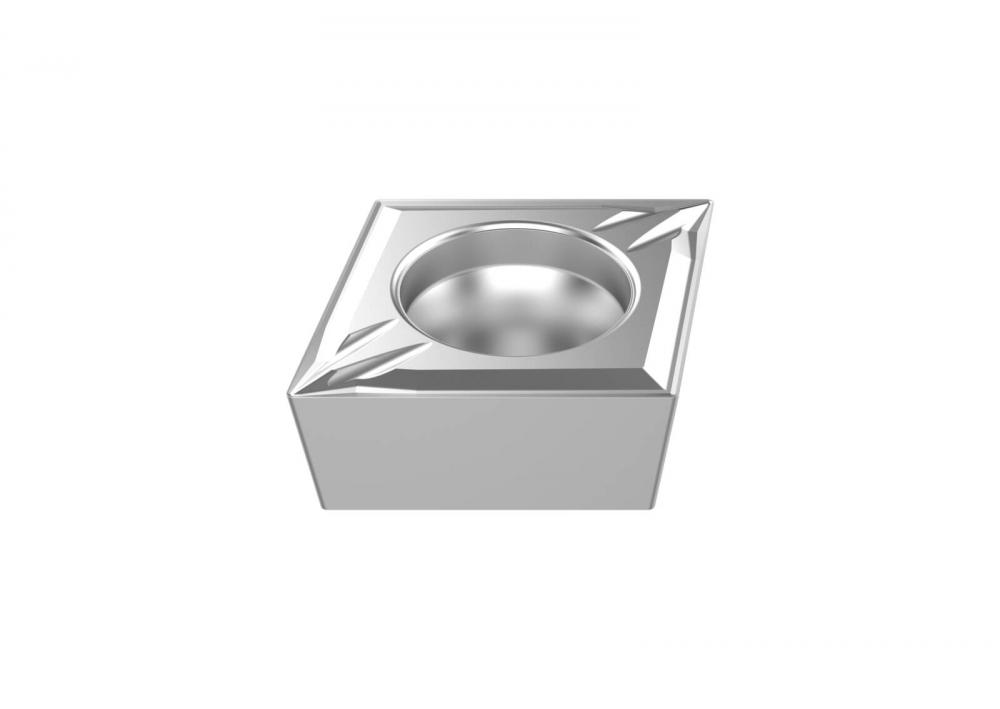

Seco CCMT32.50.5-MF2 ISO Turning Insert Duratomic - General Turning Insert

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Insert Seat Size:

Chipbreaker:

Additional options that would change other selections

Included Angle:

Additional options that would change other selections

Number of Cutting Edges:

Additional options that would change other selections

Specific Products:

Technical Details

Details

Category:

Turning

Subcategory:

External Turning

Subtype:

Turning Indexable Inserts

Chipbreaker:

MF2

Grade:

TP2501

Insert Seat Size:

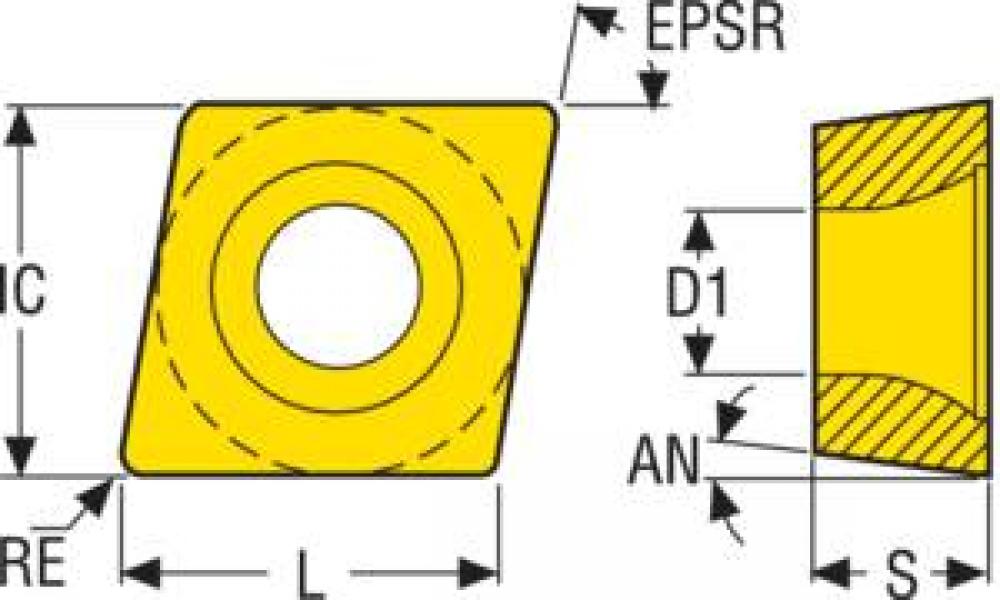

AN - Clearance Angle Major (Deg):

7.0

ANSI Code:

CCMT32.50.5-MF2

Applicable Material:

High Versatility-Steel

Brand Name:

Seco

CEDC - Cutting Edge Count:

Chip Breaker Type:

MF2

Chipbreaker Description:

-MF2 for finishing-light roughing feeds

Clearance Angle Major:

7 degrees

Corner Radius (Decimal):

0.01

Corner Radius (Metric):

0.20

Cutting Edge Effective Length (Decimal):

0.37

Cutting Edge Effective Length (Metric):

9.50

D1 - Fixing Hole Dia. (In):

0.177

D1 - Fixing Hole Dia. (mm):

4.5

Direction of Hand:

Neutral

EPSR - Insert Included Angle (Deg):

80.0

Fixing Hole Diameter (Decimal):

0.18

Fixing Hole Diameter (Metric):

4.50

Grade Description:

Grade TP2501-carbide, chrome Duratomic® coating, high versatility-steel

Gradetype:

Carbide CVD

IC - Inscribed Circle Dia. (In):

0.375

IC - Inscribed Circle Dia. (mm):

9.525

IH - Insert Hand:

Neutral

Included Angle:

80 degrees

Inscribed Circle Diameter:

0.38 Inch

Inscribed Circle Diameter (Metric):

9.53

Item Quantity:

Item Weight (lbs.):

0.007

L - Theoretical Cutting Edge Length (In):

0.382

L - Theoretical Cutting Edge Length (mm):

9.7

LE - Cutting Edge Effective Length (In):

0.374

LE - Cutting Edge Effective Length (mm):

9.5

Material:

Carbide

Number of Cutting Edges:

Package Height (inches):

0.394

Package Length (inches):

3.543

Package Weight (lbs):

0.07

Package Width (inches):

1.496

Product Series:

CCMT

RE - Radius Value (In):

0.0079

RE - Radius Value (mm):

0.2

S - Insert Thickness (In):

0.156

S - Insert Thickness (mm):

3.97

SC - Insert Shape Code:

Series:

Duratomic

Style:

CC09T3

Theoretical Cutting Edge Length (Decimal):

0.38

Theoretical Cutting Edge Length (Metric):

9.70

Thickness:

0.16 Inch

Thickness (Metric):

3.97

Unit of Measure:

Imperial

UPC Number:

56306029001004

Weight:

0.008 LB

Manufactured By:

Seco Tools
