Part Number: 02959891 / Vendor ID Number: 11420 / Custom:
DNMG442-M6

DNMG442-M6
by Seco Tools

Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview
Turning Insert

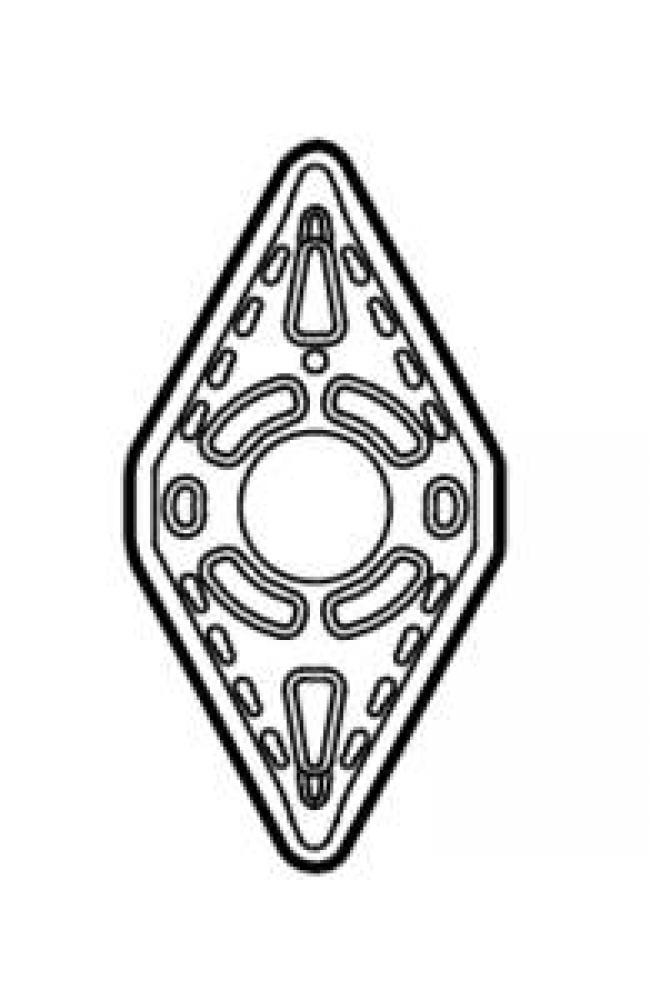

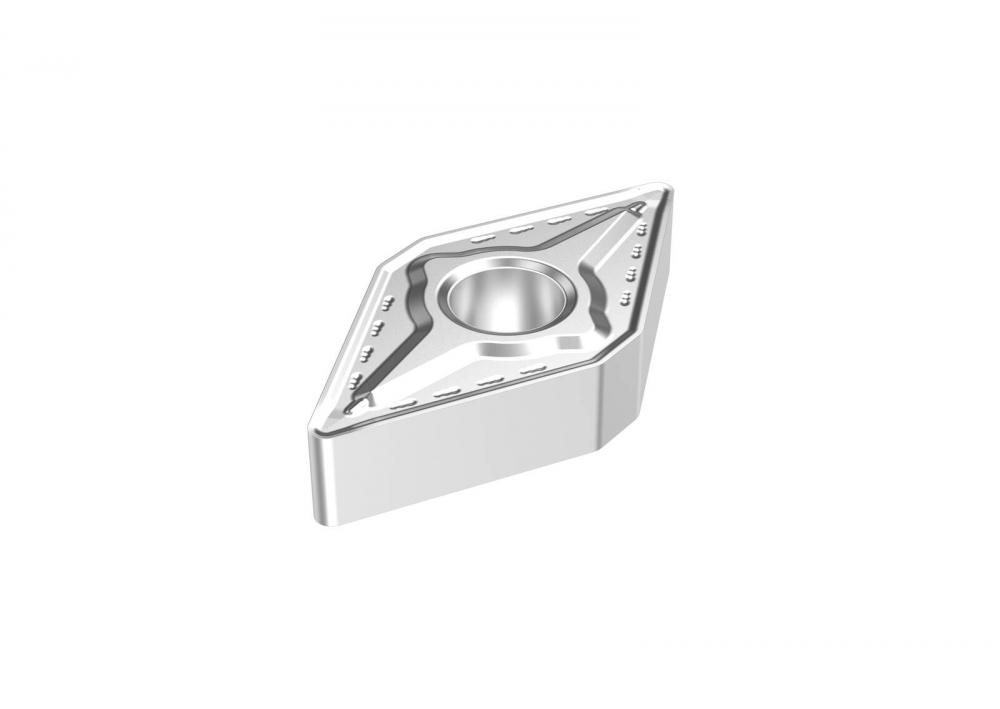

Seco DNMG442-M6 ISO Turning Insert Duratomic - General Turning Insert
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Insert Seat Size:
Chipbreaker:
Additional options that would change other selections
Included Angle:
Additional options that would change other selections
Number of Cutting Edges:
Additional options that would change other selections
Specific Products:
Info & Guides
STEP
Technical Details
Details
Category:
Turning
Subcategory:
External Turning
Subtype:
Turning Indexable Inserts
Chipbreaker:
M6
Grade:
TP1501
Insert Seat Size:
15
AN - Clearance Angle Major (Deg):
0.0
ANSI Code:
DNMG442-M6
Applicable Material:
Optimized-Steels
Brand Name:
Seco
CEDC - Cutting Edge Count:
4
Chip Breaker Type:
M6
Chipbreaker Description:
-M6 for roughing feeds
Corner Radius (Decimal):
0.03
Corner Radius (Metric):
0.80
Cutting Edge Effective Length (Decimal):
0.58
Cutting Edge Effective Length (Metric):
14.70

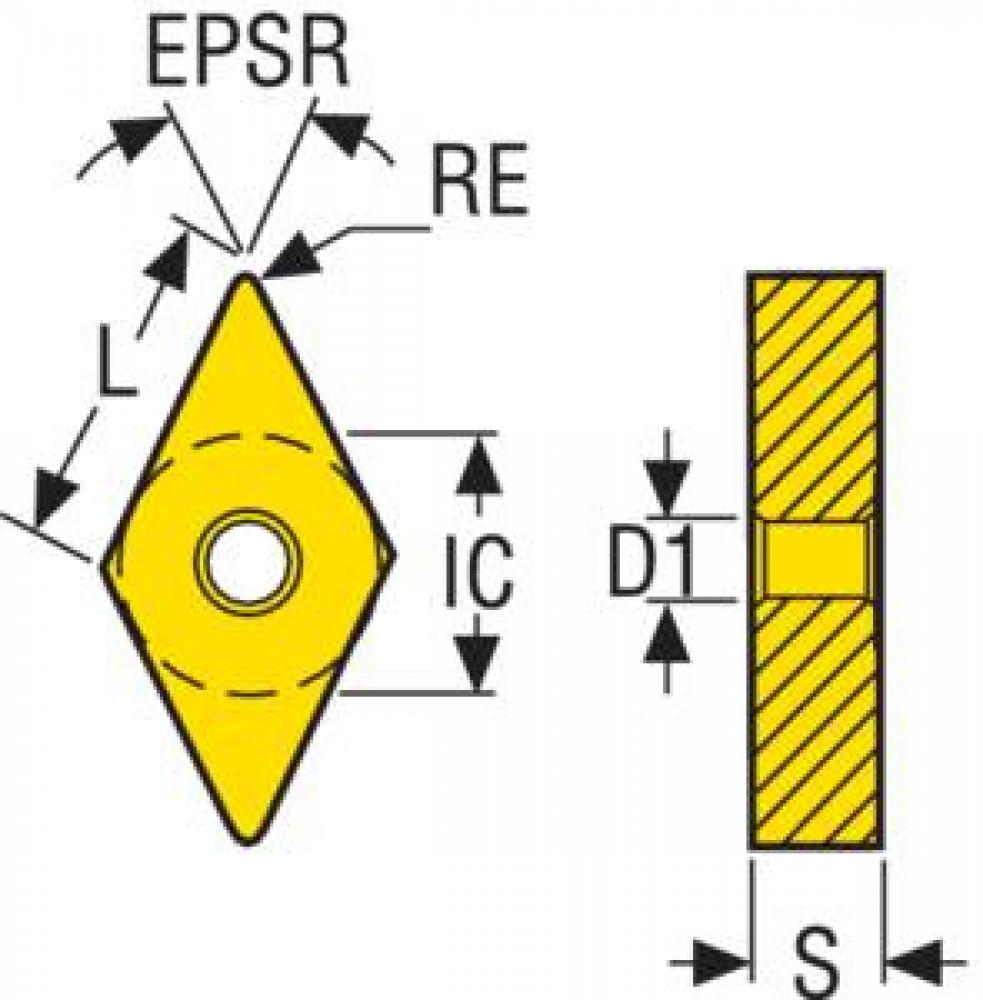

D1 - Fixing Hole Dia. (In):
0.203
D1 - Fixing Hole Dia. (mm):
5.15
Direction of Hand:
Neutral
EPSR - Insert Included Angle (Deg):
55.0
Fixing Hole Diameter (Decimal):
0.20
Fixing Hole Diameter (Metric):
5.15
Grade Description:
Grade TP1501-carbide, chrome Duratomic® coating, optimized-steels
Gradetype:
Carbide CVD
IC - Inscribed Circle Dia. (In):
0.500
IC - Inscribed Circle Dia. (mm):
12.7
IH - Insert Hand:
Neutral
Included Angle:
55 degrees
Inscribed Circle Diameter:
0.50 Inch
Inscribed Circle Diameter (Metric):
12.70
Item Quantity:
10
Item Weight (lbs.):
0.033
L - Theoretical Cutting Edge Length (In):
0.610
L - Theoretical Cutting Edge Length (mm):
15.5
LE - Cutting Edge Effective Length (In):
0.579
LE - Cutting Edge Effective Length (mm):
14.7
Material:
Carbide
Number of Cutting Edges:
4
Package Height (inches):
0.472
Package Length (inches):
4.331
Package Weight (lbs):
0.33
Package Width (inches):
1.969
Product Series:
DNMG
RE - Radius Value (In):
0.0315
RE - Radius Value (mm):
0.8
S - Insert Thickness (In):
0.250
S - Insert Thickness (mm):
6.35
SC - Insert Shape Code:
D
Series:
Duratomic
Style:
DN1506
Theoretical Cutting Edge Length (Decimal):
0.61
Theoretical Cutting Edge Length (Metric):
15.50
Thickness:
0.25 Inch
Thickness (Metric):
6.35
Unit of Measure:
Imperial
UPC Number:
59891029001002
Weight:
0.033 LB
Manufactured By:
Seco Tools
