Part Number: 02959902 / Vendor ID Number: 11420 / Custom:
SNMG543-M6

SNMG543-M6
by Seco Tools

Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview
Turning Insert

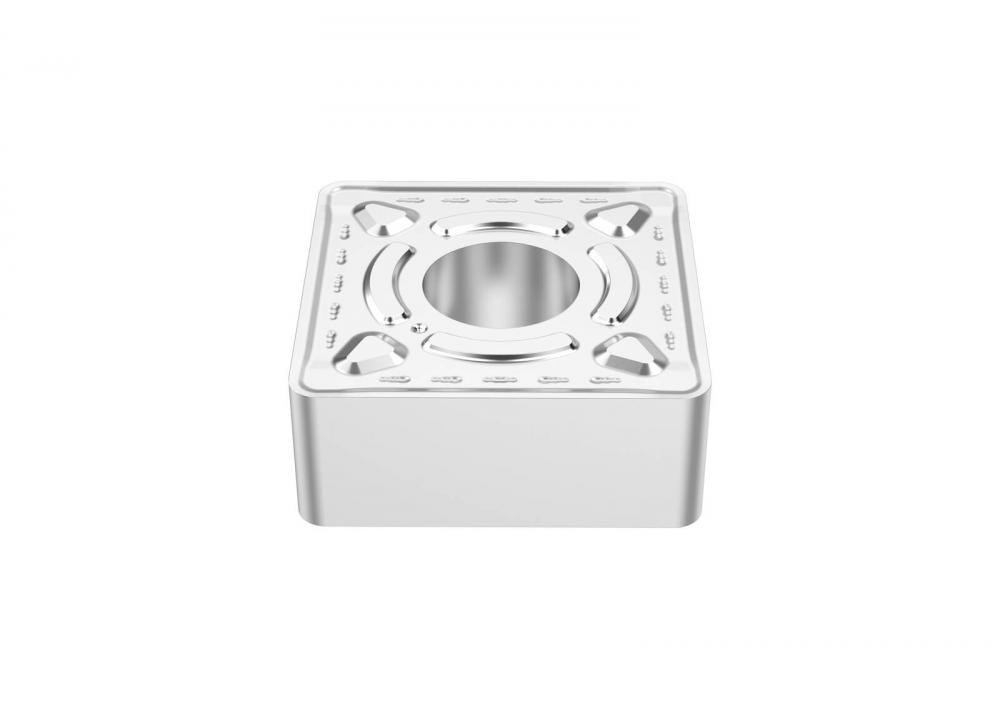

Seco SNMG543-M6 ISO Turning Insert Duratomic - General Turning Insert
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Insert Seat Size:
Chipbreaker:
Additional options that would change other selections
Included Angle:
Additional options that would change other selections
Number of Cutting Edges:
Additional options that would change other selections
Specific Products:
Info & Guides
STEP
Technical Details
Details
Category:
Turning
Subcategory:
External Turning
Subtype:
Turning Indexable Inserts
Chipbreaker:
M6
Grade:
TP1501
Insert Seat Size:
1506
AN - Clearance Angle Major (Deg):
0.0
ANSI Code:
SNMG543-M6
Applicable Material:
Optimized-Steels
Brand Name:
Seco
CEDC - Cutting Edge Count:
8
Chip Breaker Type:
M6
Chipbreaker Description:
-M6 for roughing feeds
Corner Radius (Decimal):
0.05
Corner Radius (Metric):
1.20
Cutting Edge Effective Length (Decimal):
0.58
Cutting Edge Effective Length (Metric):
14.70
D1 - Fixing Hole Dia. (In):
0.250
D1 - Fixing Hole Dia. (mm):
6.35
Direction of Hand:
Neutral
EPSR - Insert Included Angle (Deg):
90.0
Fixing Hole Diameter (Decimal):
0.25
Fixing Hole Diameter (Metric):
6.35
Grade Description:
Grade TP1501-carbide, chrome Duratomic® coating, optimized-steels
Gradetype:
Carbide CVD
IC - Inscribed Circle Dia. (In):
0.625
IC - Inscribed Circle Dia. (mm):
15.875
IH - Insert Hand:
Neutral
Included Angle:
90 degrees
Inscribed Circle Diameter:
0.63 Inch
Inscribed Circle Diameter (Metric):
15.88
Item Quantity:
10
Item Weight (lbs.):
0.041
L - Theoretical Cutting Edge Length (In):
0.625
L - Theoretical Cutting Edge Length (mm):
15.875
LE - Cutting Edge Effective Length (In):
0.579
LE - Cutting Edge Effective Length (mm):
14.7
Material:
Carbide
Number of Cutting Edges:
8
Package Height (inches):
0.472
Package Length (inches):
4.331
Package Weight (lbs):
0.41
Package Width (inches):
1.969
Product Series:
SNMG
RE - Radius Value (In):
0.0472
RE - Radius Value (mm):
1.2
S - Insert Thickness (In):
0.250
S - Insert Thickness (mm):
6.35
SC - Insert Shape Code:
S
Series:
Duratomic
Style:
SN1506
Theoretical Cutting Edge Length (Decimal):
0.63
Theoretical Cutting Edge Length (Metric):
15.88
Thickness:
0.25 Inch
Thickness (Metric):
6.35
Unit of Measure:
Imperial
UPC Number:
59902029001005
Weight:
0.042 LB
Manufactured By:
Seco Tools
