Part Number: 02959954 / Vendor ID Number: 11420 / Custom:
DNMU331-M3

DNMU331-M3
by Seco Tools

Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview
Turning Insert

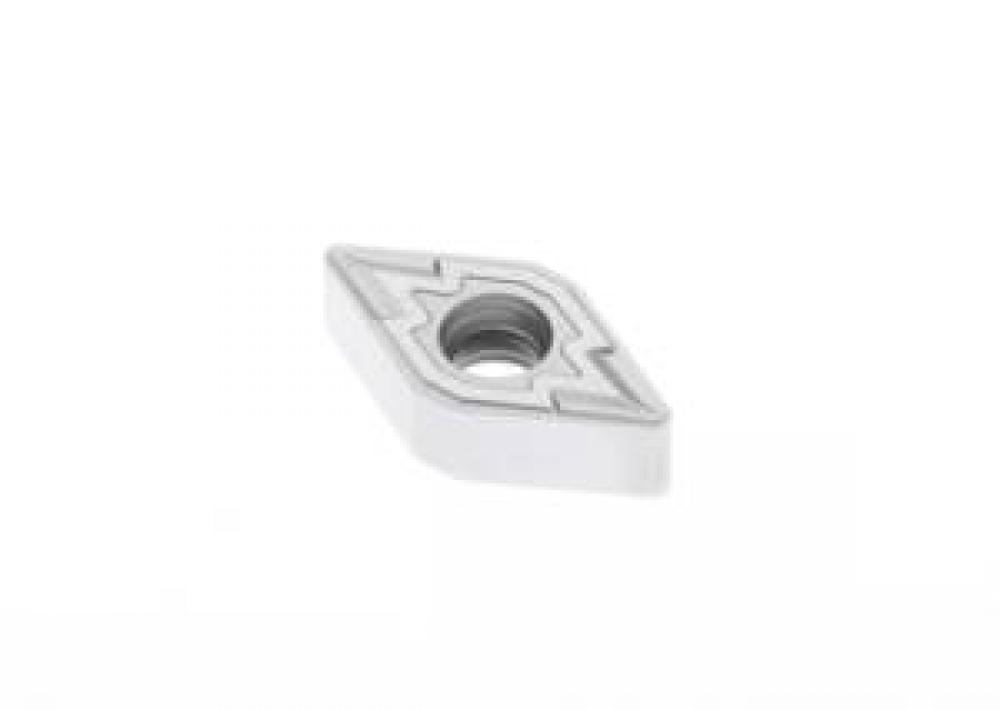

Seco DNMU331-M3 ISO Turning Insert Duratomic - General Turning Insert
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Insert Seat Size:
Chipbreaker:
Additional options that would change other selections
Included Angle:
Additional options that would change other selections
Number of Cutting Edges:
Additional options that would change other selections
Info & Guides
STEP
Technical Details
Details
Category:
Turning
Subcategory:
External Turning
Subtype:
Turning Indexable Inserts

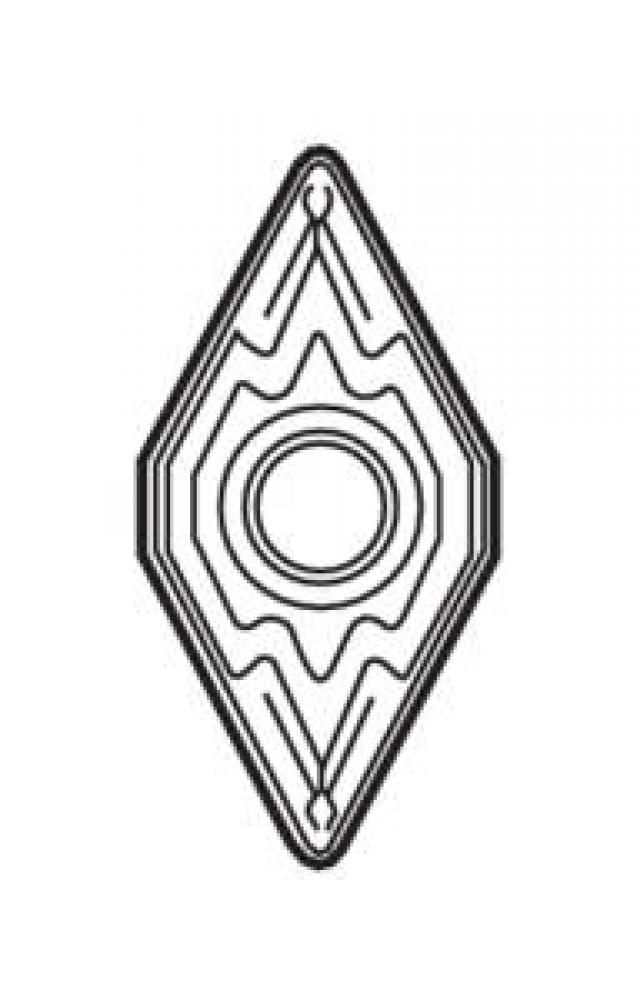

Chipbreaker:
M3
Grade:
TP2501
Insert Seat Size:
11

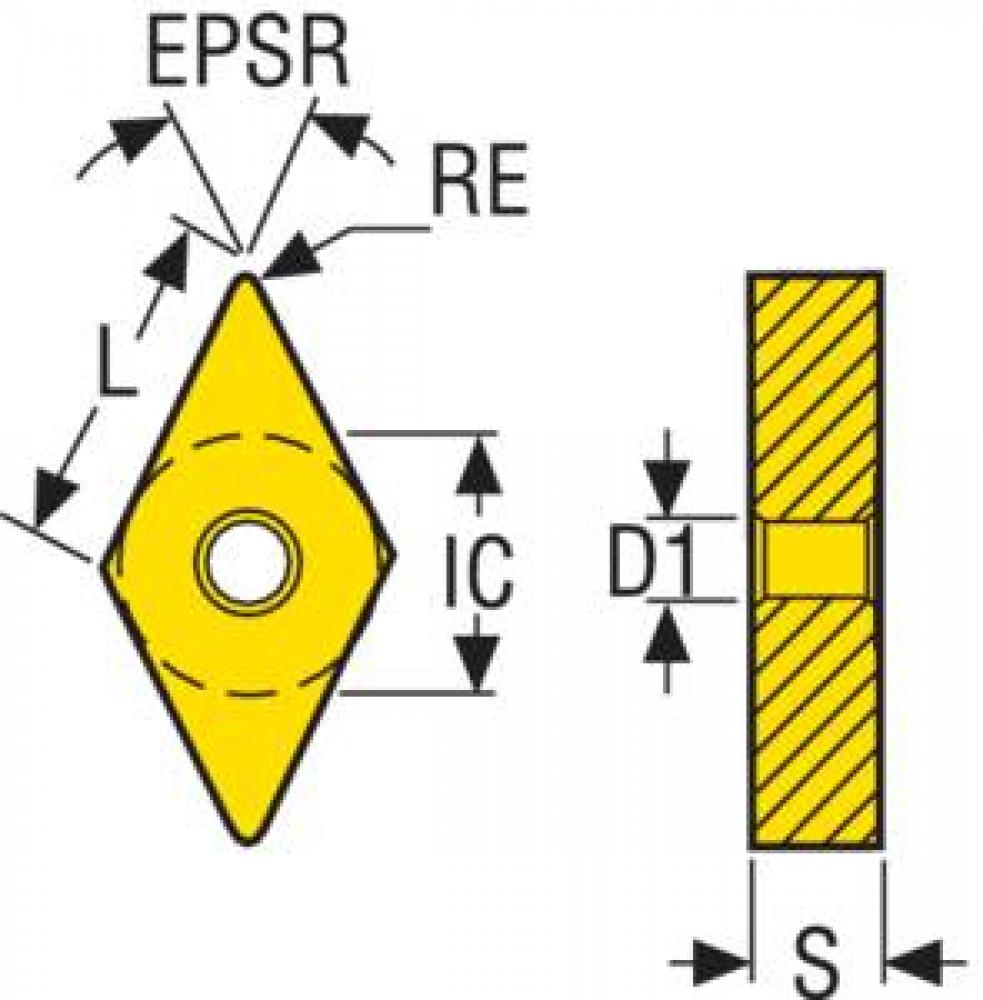

AN - Clearance Angle Major (Deg):
0.0
ANSI Code:
DNMU331-M3
Applicable Material:
High Versatility-Steel
Brand Name:
Seco
CEDC - Cutting Edge Count:
8
Chip Breaker Type:
M3
Chipbreaker Description:
-M3 first choice for medium feeds
Corner Radius (Decimal):
0.02
Corner Radius (Metric):
0.40
Cutting Edge Effective Length (Decimal):
0.38
Cutting Edge Effective Length (Metric):
9.70
D1 - Fixing Hole Dia. (In):
0.150
D1 - Fixing Hole Dia. (mm):
3.81
Direction of Hand:
Neutral
EPSR - Insert Included Angle (Deg):
55.0
Fixing Hole Diameter (Decimal):
0.15
Fixing Hole Diameter (Metric):
3.81
Grade Description:
Grade TP2501-carbide, chrome Duratomic® coating, high versatility-steel
Gradetype:
Carbide CVD
IC - Inscribed Circle Dia. (In):
0.375
IC - Inscribed Circle Dia. (mm):
9.525
IH - Insert Hand:
Neutral
Included Angle:
55 degrees
Inscribed Circle Diameter:
0.38 Inch
Inscribed Circle Diameter (Metric):
9.53
Item Quantity:
10
Item Weight (lbs.):
0.014
L - Theoretical Cutting Edge Length (In):
0.457
L - Theoretical Cutting Edge Length (mm):
11.6
LE - Cutting Edge Effective Length (In):
0.382
LE - Cutting Edge Effective Length (mm):
9.7
Material:
Carbide
Number of Cutting Edges:
8
Package Height (inches):
0.394
Package Length (inches):
3.543
Package Weight (lbs):
0.14
Package Width (inches):
1.496
Product Series:
DNMU
RE - Radius Value (In):
0.0157
RE - Radius Value (mm):
0.4
S - Insert Thickness (In):
0.187
S - Insert Thickness (mm):
4.76
SC - Insert Shape Code:
D
Series:
Duratomic
Style:
DN1104
Theoretical Cutting Edge Length (Decimal):
0.46
Theoretical Cutting Edge Length (Metric):
11.60
Thickness:
0.19 Inch
Thickness (Metric):
4.76
Unit of Measure:
Imperial
UPC Number:
59954029001004
Weight:
0.014 LB
Manufactured By:
Seco Tools
