Part Number: 02956349 / Vendor ID Number: 11420 / Custom:
VNMG330.5-FF2

VNMG330.5-FF2
by Seco Tools

Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview
Turning Insert

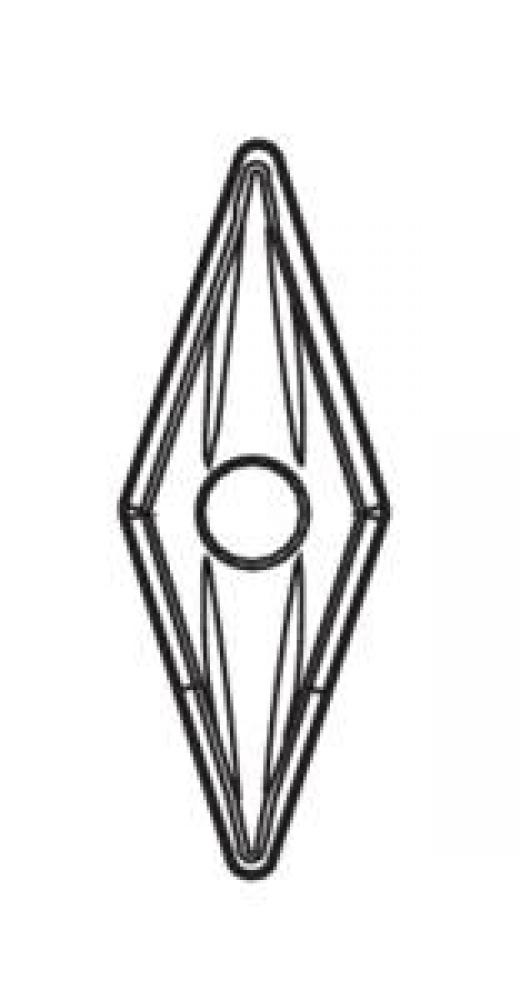

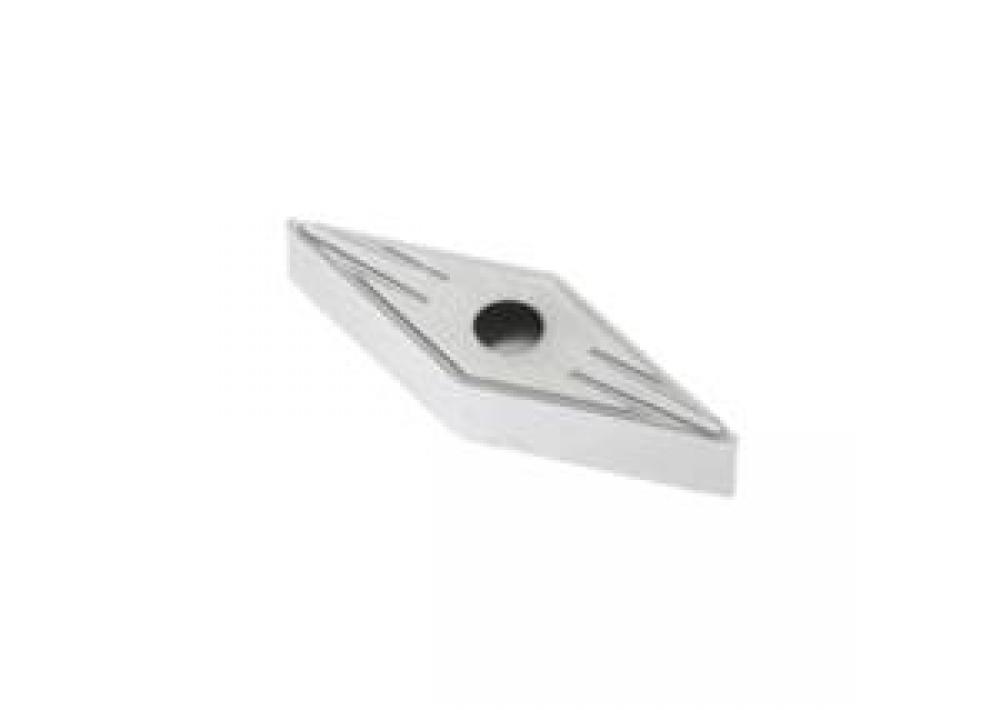

Seco VNMG330.5-FF2 ISO Turning Insert Duratomic - General Turning Insert
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Insert Seat Size:
Chipbreaker:
Additional options that would change other selections
Included Angle:
Additional options that would change other selections
Number of Cutting Edges:
Additional options that would change other selections
Specific Products:
Info & Guides
STEP
Technical Details
Details
Category:
Turning
Subcategory:
External Turning
Subtype:
Turning Indexable Inserts
Chipbreaker:
FF2
Grade:
TP2501
Insert Seat Size:
16
AN - Clearance Angle Major (Deg):
0.0
ANSI Code:
VNMG330.5-FF2
Applicable Material:
High Versatility-Steel
Brand Name:
Seco
CEDC - Cutting Edge Count:
4
Chip Breaker Type:
FF2
Chipbreaker Description:
-FF2 for fine finishing medium feeds, excellent chip control
Corner Radius (Decimal):
0.01
Corner Radius (Metric):
0.20
Cutting Edge Effective Length (Decimal):
0.62
Cutting Edge Effective Length (Metric):
15.80
D1 - Fixing Hole Dia. (In):
0.150
D1 - Fixing Hole Dia. (mm):
3.81
Direction of Hand:
Neutral

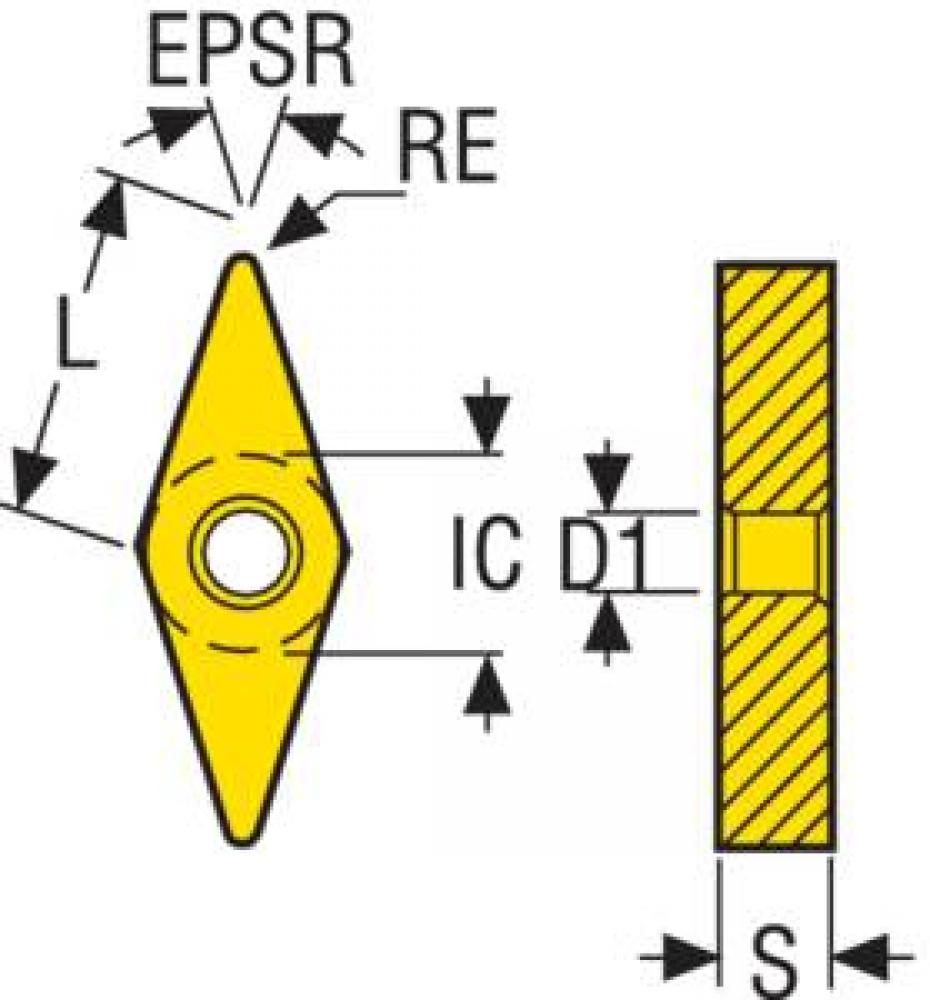

EPSR - Insert Included Angle (Deg):
35.0
Fixing Hole Diameter (Decimal):
0.15
Fixing Hole Diameter (Metric):
3.81
Grade Description:
Grade TP2501-carbide, chrome Duratomic® coating, high versatility-steel
Gradetype:
Carbide CVD
IC - Inscribed Circle Dia. (In):
0.375
IC - Inscribed Circle Dia. (mm):
9.525
IH - Insert Hand:
Neutral
Included Angle:
35 degrees
Inscribed Circle Diameter:
0.38 Inch
Inscribed Circle Diameter (Metric):
9.53
Item Quantity:
5
Item Weight (lbs.):
0.022
L - Theoretical Cutting Edge Length (In):
0.654
L - Theoretical Cutting Edge Length (mm):
16.6
LE - Cutting Edge Effective Length (In):
0.622
LE - Cutting Edge Effective Length (mm):
15.8
Material:
Carbide
Number of Cutting Edges:
4
Package Height (inches):
0.551
Package Length (inches):
4.331
Package Weight (lbs):
0.11
Package Width (inches):
1.969
Product Series:
VNMG
RE - Radius Value (In):
0.0079
RE - Radius Value (mm):
0.2
S - Insert Thickness (In):
0.187
S - Insert Thickness (mm):
4.76
SC - Insert Shape Code:
V
Series:
Duratomic
Style:
VN1604
Theoretical Cutting Edge Length (Decimal):
0.65
Theoretical Cutting Edge Length (Metric):
16.60
Thickness:
0.19 Inch
Thickness (Metric):
4.76
Unit of Measure:
Imperial
UPC Number:
56349029000509
Weight:
0.022 LB
Manufactured By:
Seco Tools
