Part Number: 03276276 / Vendor ID Number: 11420 / Custom:
DNMG432-MF4

DNMG432-MF4
by Seco Tools

Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview
Turning Insert

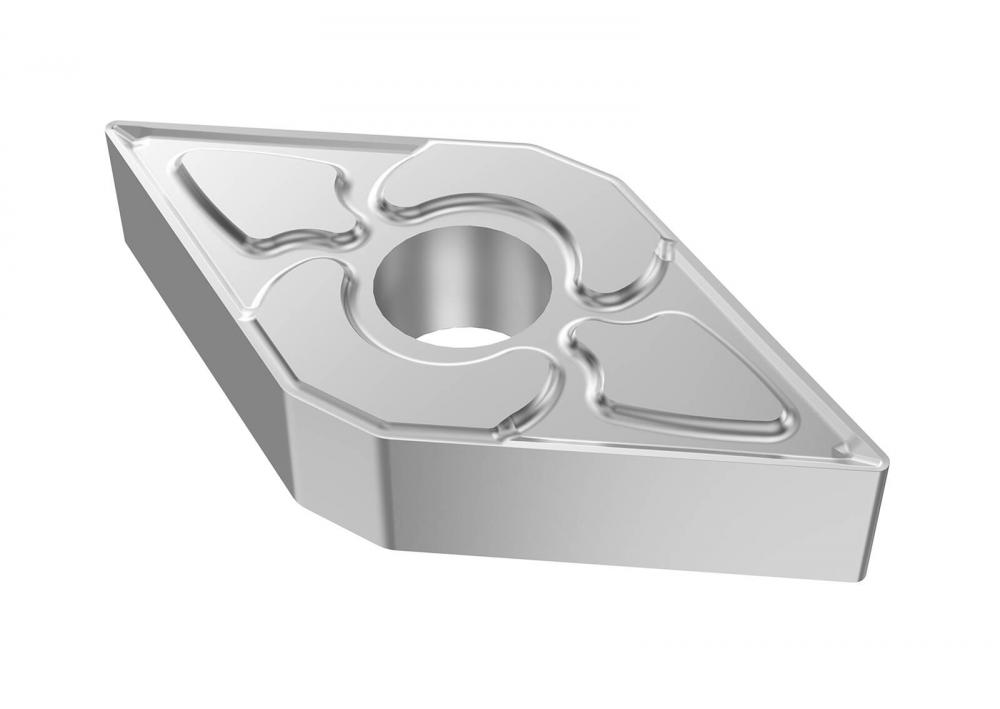

Seco DNMG432-MF4 ISO Turning Insert Duratomic - General Turning Insert
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Insert Seat Size:
Chipbreaker:
Additional options that would change other selections
Included Angle:
Additional options that would change other selections
Number of Cutting Edges:
Additional options that would change other selections
Technical Details
Details
Category:
Turning
Subcategory:
External Turning
Subtype:
Turning Indexable Inserts
Chipbreaker:
MF4
Grade:
TM2501
Insert Seat Size:
15
AN - Clearance Angle Major (Deg):
0.0
ANSI Code:
DNMG432-MF4
Applicable Material:
High Versatility-Stainless
Brand Name:
Seco
CEDC - Cutting Edge Count:
4
Chip Breaker Type:
MF4
Chipbreaker Description:
-MF4 for medium-finishing feeds, low cut depth
Corner Radius (Decimal):
0.03
Corner Radius (Metric):
0.80
Cutting Edge Effective Length (Decimal):
0.50
Cutting Edge Effective Length (Metric):
12.73
D1 - Fixing Hole Dia. (In):
0.203
D1 - Fixing Hole Dia. (mm):
5.15
Direction of Hand:
Neutral
EPSR - Insert Included Angle (Deg):
55.0
Fixing Hole Diameter (Decimal):
0.20
Fixing Hole Diameter (Metric):
5.15
Grade Description:
Grade TM2501-carbide, chrome Duratomic® coating, high versatility-stainless
Gradetype:
Carbide CVD
IC - Inscribed Circle Dia. (In):
0.500
IC - Inscribed Circle Dia. (mm):
12.7
IH - Insert Hand:
Neutral
Included Angle:
55 degrees
Inscribed Circle Diameter:
0.50 Inch
Inscribed Circle Diameter (Metric):
12.70
Item Quantity:
10
Item Weight (lbs.):
0.024
L - Theoretical Cutting Edge Length (In):
0.610
L - Theoretical Cutting Edge Length (mm):
15.5
LE - Cutting Edge Effective Length (In):
0.501
LE - Cutting Edge Effective Length (mm):
12.73
Material:
Carbide
Number of Cutting Edges:
4
Package Height (inches):
0.472
Package Length (inches):
4.331
Package Weight (lbs):
0.24
Package Width (inches):
1.969
Product Series:
DNMG
RE - Radius Value (In):
0.0315
RE - Radius Value (mm):
0.8
S - Insert Thickness (In):
0.187
S - Insert Thickness (mm):
4.762
SC - Insert Shape Code:
D
Series:
Duratomic
Style:
DN1504
Theoretical Cutting Edge Length (Decimal):
0.61
Theoretical Cutting Edge Length (Metric):
15.50
Thickness:
0.19 Inch
Thickness (Metric):
4.76
Unit of Measure:
Imperial
UPC Number:
76276032001008
Weight:
0.024 LB
Manufactured By:
Seco Tools
