Part Number: TPC03292 / Vendor ID Number: 10831 / Custom:
KYOCERA Precision Tools TPC03292

KYOCERA Precision Tools TPC03292
by KYOCERA Precision Tools

Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview

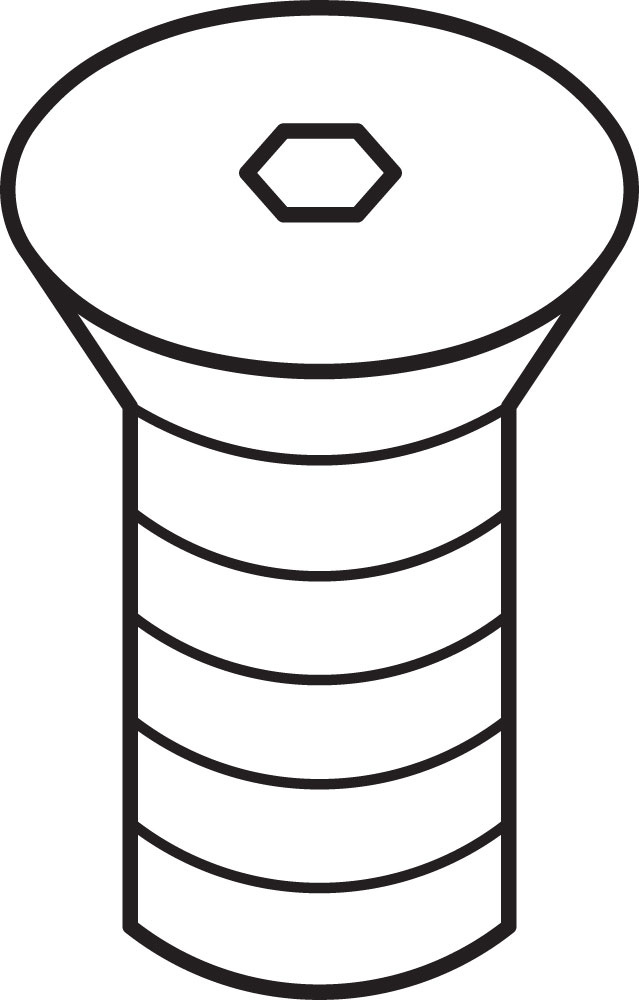

Kyocera HF20x53HA M20X2.5 Arbor / Mounting Bolt
Kyocera HF20x53HA M20X2.5 Arbor / Mounting Bolt with Coolant Hole for MFAH Milling Series
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Number of Flutes:
Chipbreaker:
Material:
Additional options that would change other selections
Insert Holding Method:
Additional options that would change other selections
Specific Products:
Additional Information
Compatible with DTP-15 Wrench
Hex Drive
Technical Details
Details
Category:
Cutting Tools
Subcategory:
Cutting Tools Spare Parts and Blanks
Subtype:
Cutting Tool Spare Parts
Category Level 4:
Screws
ANSI Part Number:
HF20X53HA
California Prop 65 Item:
View
Compatible Tool Style:
MFAH
Compatible Tool Type:
Face Mills
Country of Origin:
US, JAPAN, CHINA, SOUTH KOREA, OTHER
Discount Category Description:
Steel / Hardware
Drive Type:
Hex
ECCN:
EAR99
Harmonized Code:
7318.15.8085
Insert Size (ISO):
X5
ISO Part Number:
HF20X53HA
Key/Drive Compatibility:
14.00mm Hex
Lead Time:
7 - 10
Material:
Steel
Material Group / Grade:
GR98
Min Order Qty:
1
Notes:
With Coolant Hole
Origin:
JPN
Series:
MFAH
Series Description:
MFAH Milling
Shipping Weight:
1.1610
Spare Part Type:
Arbor / Mounting Bolt
Thread Hand:
Right-Hand
UNSPSC:
31161600
UNSPSC Title:
Bolts

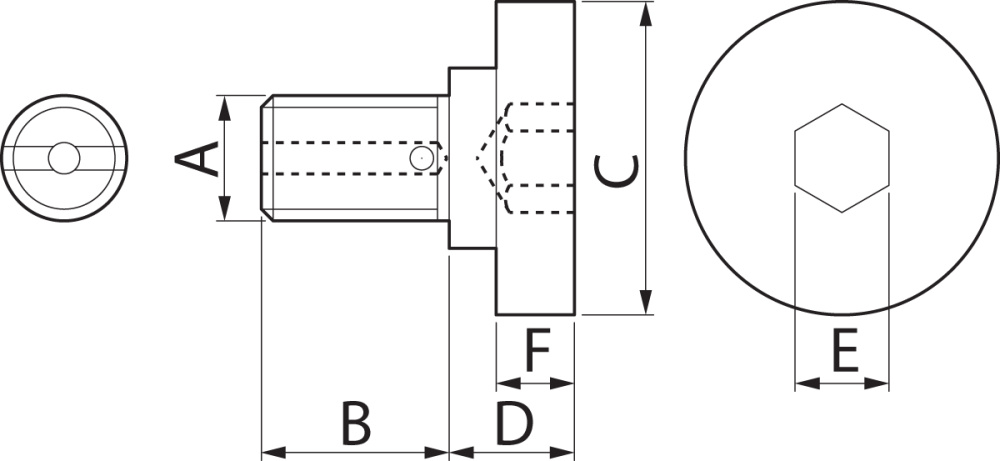

[A] (mm):
M20x2.50
[B] (Decimal Inch):
1.2992
[B] (mm):
33.00
[C] (Decimal Inch):
1.9685
[C] (mm):
50.00
[D] (Decimal Inch):
0.7874
[D] (mm):
20.00
[E] (Decimal Inch):
0.5512
[E] (mm):
14.00
[F] (Decimal Inch):
0.5512
[F] (mm):
14.00
Manufactured By:
KYOCERA Precision Tools
