Product Overview

Kyocera MFAH 125RA16T254SF Inch Bore Diameter, 90 Degree Face Mill

Kyocera MFAH 125RA16T254SF Inch Bore Diameter, Standard Pitch, 16 Flute, 90 Degree Face Mill with a 125.00mm Cutting Diameter for Aluminum Facing, Finishing Applications

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Number of Flutes:

Chipbreaker:

Material:

Additional options that would change other selections

Insert Holding Method:

Additional options that would change other selections

Info & Guides

PDF

Technical Details

Details

Category:

Milling

Subcategory:

Indexable

Subtype:

Indexable Face Mills

Insert Holding Method:

Screw or Clamp

Material:

Steel/Aluminum

Number of Flutes:

Additional Manufacturer Part Number:

8858658

ANSI Part Number:

MFAH125RA16T254SF

Application:

Facing|Finish Milling

Bore Diameter (Inch/Metric):

Inch

California Prop 65 Item:

View

Coolant Through (Yes/No):

Yes

Country of Origin:

US, JAPAN, CHINA, SOUTH KOREA, OTHER

Cutter Pitch:

Standard Pitch

Discount Category Description:

Steel / Hardware

ECCN:

EAR99

Feature 1:

90 Degree Lead Angle Face Mill

Feature 2:

Application: Aluminum Facing, Finishing

Feature 3:

Low cutting forces minimize burrs and chipping for high quality machining

Feature 4:

Easily adjustable blade runout for efficient machining

Feature 5:

3 different cutting edge designs

Hand:

Right-Hand

Harmonized Code:

8466.10.0130

ISO Part Number:

MFAH125RA-16T-254-SF

Material Group / Grade:

GR99

Min Order Qty:

Number of Inserts:

Origin:

JPN

Pack Height:

12.717

Pack Length:

15.394

Pack Width:

3.780

Product URL:

https://app.catsy.com/app/share/739/o/collections/4004662142/digitalcatalog/item?sku=8858658

Series Description:

MFAH Milling

Series.1:

MFAH

Shipping Weight:

5.6945

Tool Style:

MFAH

Unit (inch/mm):

UNSPSC:

23242106

UNSPSC Title:

Indexable Tool Bodies or Holders

Video 1:

https://www.youtube.com/watch?v=A-85rVJNNMk

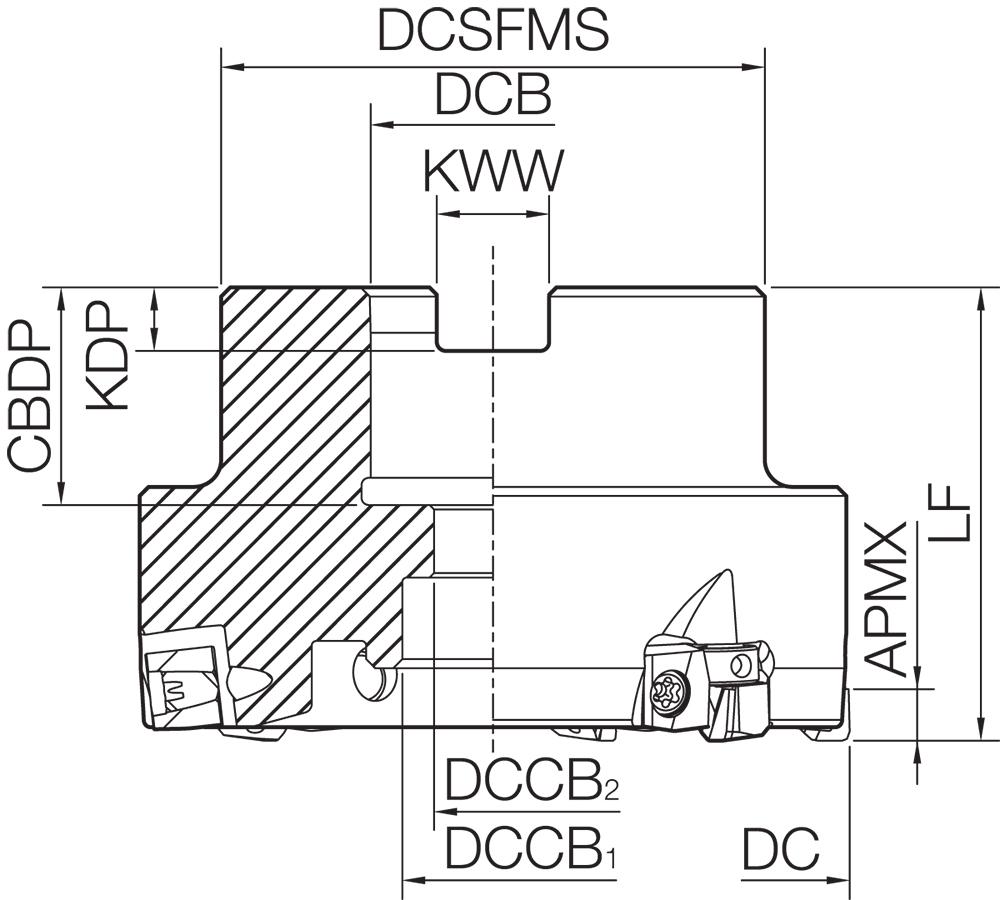

[APMX] Maximum Depth of Cut (Decimal Inch):

0.1811

[APMX] Maximum Depth of Cut (mm):

4.60

[DCB] Connection Bore Diameter (Decimal Inch):

1.0000

[DCB] Connection Bore Diameter (mm):

25.40

[DCN] Cutting Diameter Minimum (Decimal Inch):

4.9213

[DCN] Cutting Diameter Minimum (mm):

125.00

[DCSFMS] Contact Surface Diameter Machine Side (De:

2.3622

[DCSFMS] Contact Surface Diameter Machine Side (mm:

60.00

[DCX] Cutting Diameter Maximum (Decimal Inch):

4.9213

[DCX] Cutting Diameter Maximum (mm):

125.00

[DC] Cutting Diameter (Decimal Inch):

4.9213

[DC] Cutting Diameter (mm):

125.00

[KAPR] Tool Entering Angle (Degree):

Manufactured By:

KYOCERA Precision Tools
