Product Overview

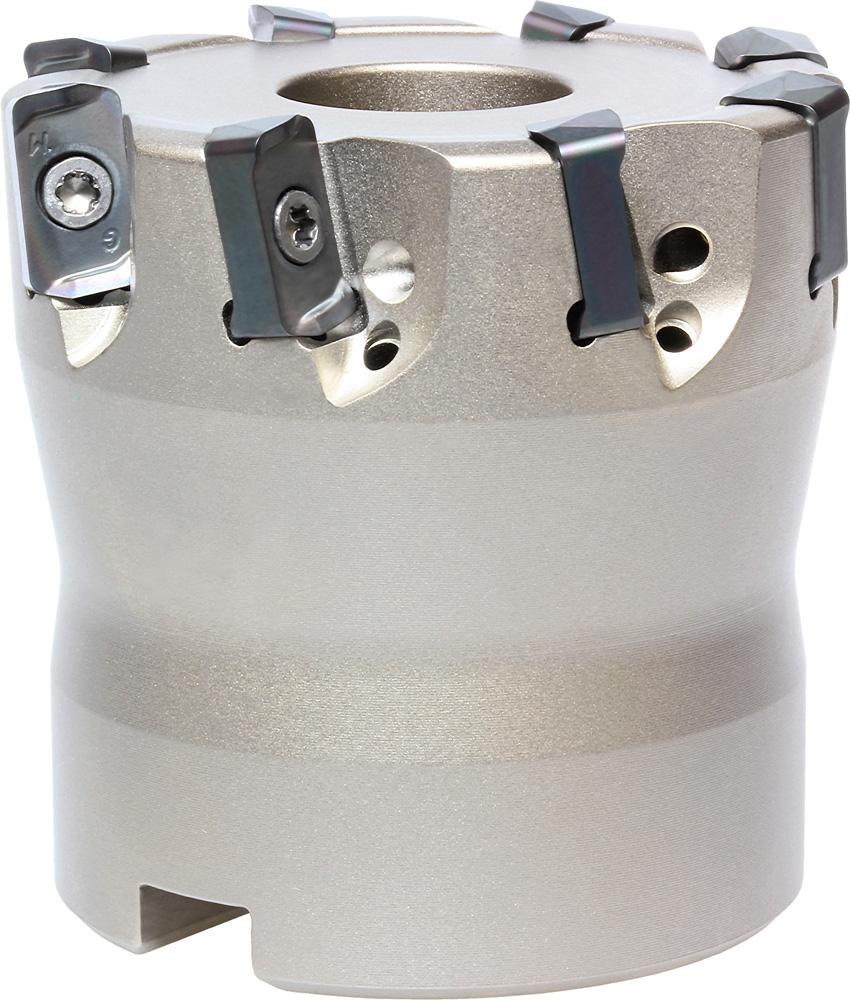

Kyocera MFH 2000R039T, MFH-Mini 2.0000" Cutting Diameter, High-Feed Face Mill

Kyocera MFH 2000R039T, MFH-Mini High-Feed Face Mill, 10 Degree Lead Angle, Standard Pitch Face Mill with a 2.0000" Cutting Diameter and Inch Bore Diameter for Facing, Shouldering, Slotting, Ramping, Helical Milling, Plunging Applications

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Number of Flutes:

Shank Type:

Additional options that would change other selections

Chipbreaker:

Additional options that would change other selections

Material:

Additional options that would change other selections

Info & Guides

PDF

Technical Details

Details

Category:

Milling

Subcategory:

Indexable

Subtype:

Indexable Face Mills

Insert Holding Method:

Screw

Material:

Steel

Number of Flutes:

Additional Manufacturer Part Number:

8609522

ANSI Part Number:

MFH2000R039T

Application:

Bore Diameter (Inch/Metric):

Inch

California Prop 65 Item:

View

Coolant Through (Yes/No):

Yes

Country of Origin:

US, JAPAN, CHINA, SOUTH KOREA, OTHER

Cutter Pitch:

Standard Pitch

Discount Category Description:

Steel / Hardware

ECCN:

EAR99

Feature 1:

10 Degree Lead Angle High Feed Face Mill

Feature 2:

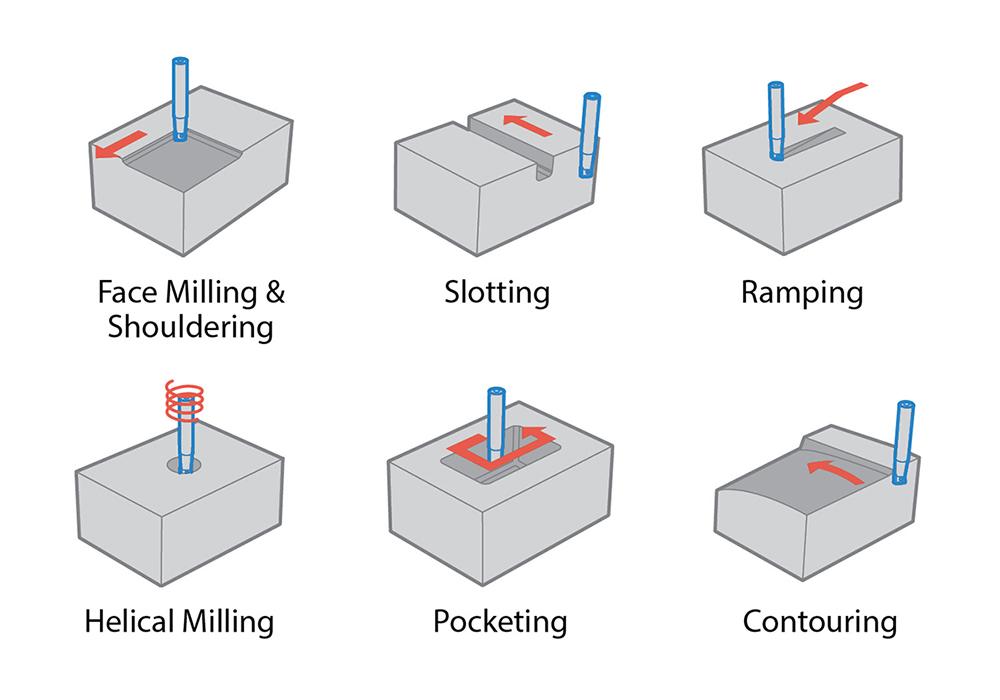

Application: Facing, Shouldering, Slotting, Ramping, Helical Milling, Plunging

Feature 3:

Clamp Screw Insert Holding Design

Feature 4:

Compatible with (9) LOGU03… Inserts

Feature 5:

Reduced chattering with convex cutting edge design controls initial impact when entering the workpiece

Hand:

Right-Hand

Harmonized Code:

8466.10.0130

ISO Part Number:

MFH2000R-03-9T

Material Group / Grade:

GR99

Min Order Qty:

Number of Inserts:

Origin:

USA

Pack Height:

3.250

Pack Length:

8.750

Pack Width:

3.250

Product URL:

https://app.catsy.com/app/share/739/o/collections/4004662142/digitalcatalog/item?sku=8609522

Series Description:

MFH-Mini Milling

Series.1:

MFHI

Shipping Weight:

1.2000

Tool Style:

MFH

Unit (inch/mm):

inch

UNSPSC:

23242106

UNSPSC Title:

Indexable Tool Bodies or Holders

Video 1:

https://www.youtube.com/watch?v=Za2btdmBzyI

Video 2:

https://www.youtube.com/watch?v=-wsbRf-mfqE

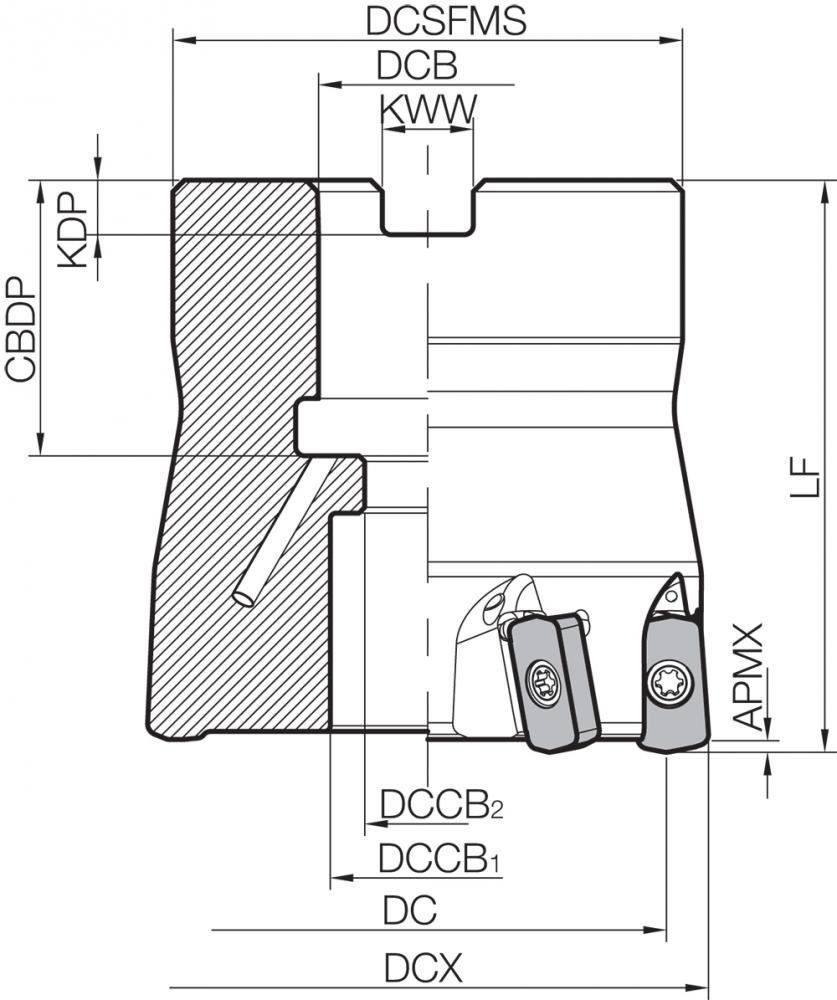

[APMX] Maximum Depth of Cut (Decimal Inch):

0.0394

[APMX] Maximum Depth of Cut (mm):

1.00

[DCB] Connection Bore Diameter (Decimal Inch):

0.7500

[DCB] Connection Bore Diameter (mm):

19.05

[DCN] Cutting Diameter Minimum (Decimal Inch):

1.6850

[DCN] Cutting Diameter Minimum (mm):

42.80

[DCSFMS] Contact Surface Diameter Machine Side (De:

1.7500

[DCSFMS] Contact Surface Diameter Machine Side (mm:

44.45

[DCX] Cutting Diameter Maximum (Decimal Inch):

2.0000

[DCX] Cutting Diameter Maximum (mm):

50.80

[DC] Cutting Diameter (Decimal Inch):

1.6850 - 2.0000

[DC] Cutting Diameter (mm):

42.80 - 50.80

[KAPR] Tool Entering Angle (Degree):

Manufactured By:

KYOCERA Precision Tools
