Item Sales Info
Part Number: THN07622 / Vendor ID Number: 10831 / Custom:
KYOCERA Precision Tools THN07622

KYOCERA Precision Tools THN07622
by KYOCERA Precision Tools

Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview

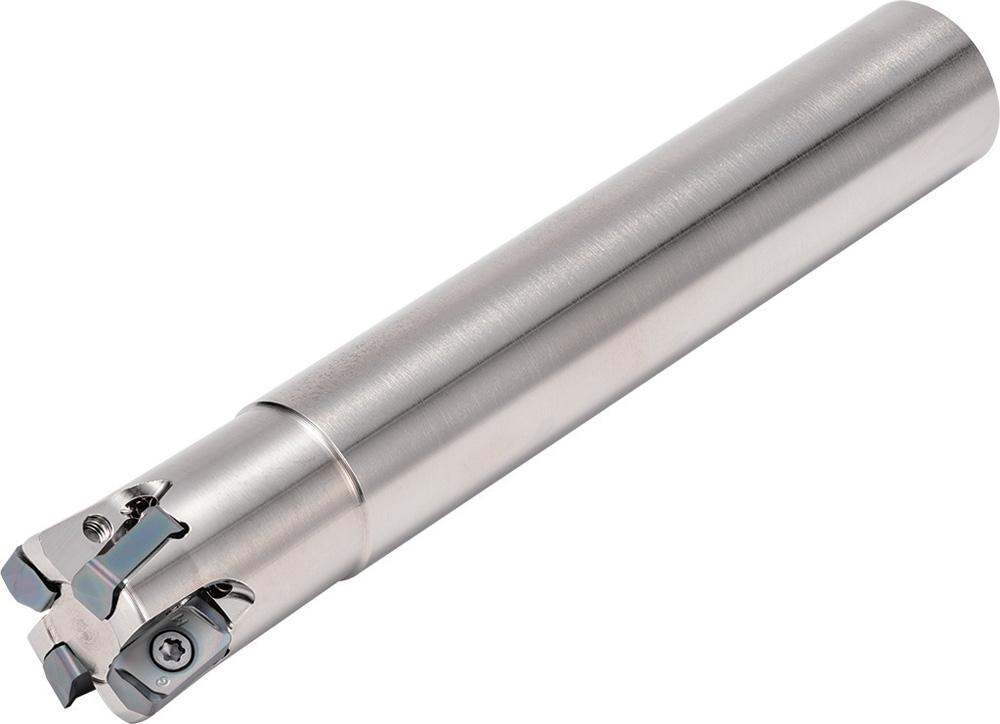

Kyocera MFH 16W16032T, MFH-Mini, Standard Length Shank, High-Feed End Mill

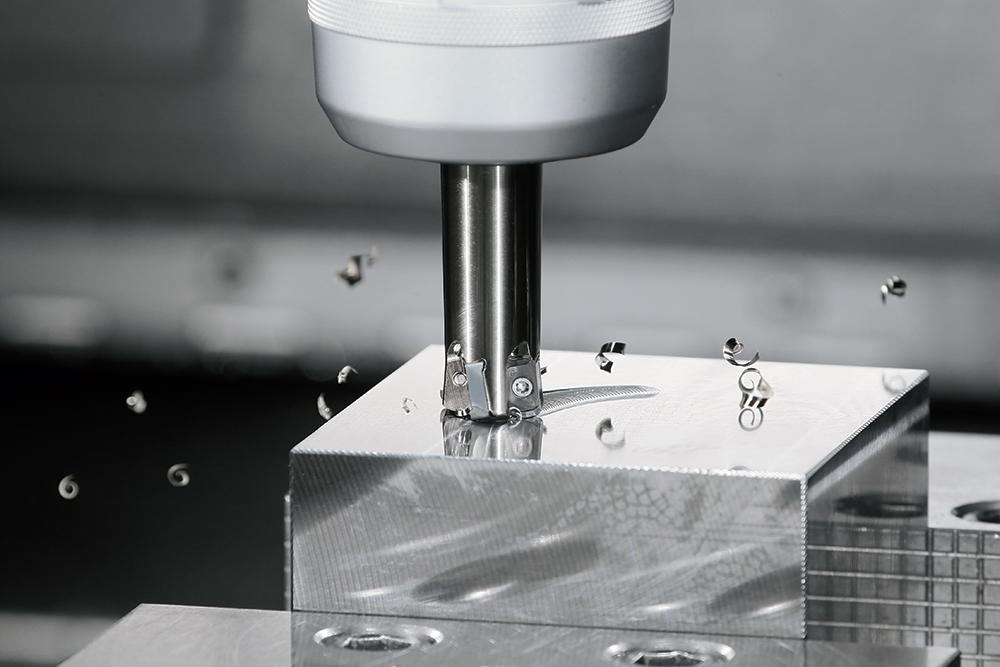

Kyocera MFH 16W16032T, Standard Length, Weldon Shank, 2 Flute, 10 Degree High-Feed End Mill with a 16.00mm Cutting Diameter for Shouldering, Facing, Slotting, Ramping, Helical Milling, Plunging Applications
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Number of Flutes:
Shank Type:
Chipbreaker:
Additional options that would change other selections
Material:
Additional options that would change other selections
Info & Guides
PDF
PDF
Technical Details
Details
Category:
Milling
Subcategory:
Indexable
Subtype:
Indexable End Mills
Insert Holding Method:
Screw
Material:
Steel
Number of Flutes:
2
Shank Type:
Standard Length
Additional Manufacturer Part Number:
8844037
ANSI Part Number:
MFH16W16032T
Application:
Facing|Helical Milling|Plunging|Ramping|Shouldering|Slotting
California Prop 65 Item:
View
Coolant Through (Yes/No):
Yes
Country of Origin:
US, JAPAN, CHINA, SOUTH KOREA, OTHER
Discount Category Description:
Steel / Hardware
ECCN:
EAR99
Feature 1:
Reduce cycle time during roughing applications
Feature 2:
Economical Inserts with 4 cutting edges
Feature 3:
MFH-Mini controls chip biting with convex cutting edge design
Feature 4:
Fine pitch availability for efficient machining
Feature 5:
Compatible with (2) LOGU03… style inserts
Hand:
Right-Hand
Harmonized Code:
8466.10.0130
ISO Part Number:
MFH16-W16-03-2T
Material Group / Grade:
GR99
Min Order Qty:
1
Number of Inserts:
2
Origin:
KOR
Pack Height:
1.535
Pack Length:
8.268
Pack Width:
1.535
Product URL:
https://app.catsy.com/app/share/739/o/collections/4004662142/digitalcatalog/item?sku=8844037
Series Description:
MFH-Mini Milling
Series.1:
MFHI
Shipping Weight:
0.3430
Tool Style:
MFH
Unit (inch/mm):
mm
UNSPSC:
27112803
UNSPSC Title:
End Mills
Video 1:
https://www.youtube.com/watch?v=Za2btdmBzyI
Video 2:
https://www.youtube.com/watch?v=-wsbRf-mfqE
Weldon Flat:
Yes

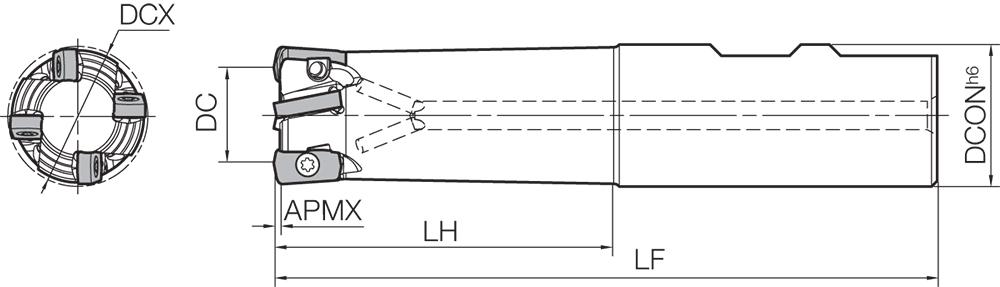

[APMX] Maximum Depth of Cut (Decimal Inch):
0.0394
[APMX] Maximum Depth of Cut (mm):
1.00
[DCN] Cutting Diameter Minimum (Decimal Inch):
0.3150
[DCN] Cutting Diameter Minimum (mm):
8.00
[DCON] Connection Diameter (Decimal Inch):
0.6299
[DCON] Connection Diameter (mm):
16.00
[DCX] Cutting Diameter Maximum (Decimal Inch):
0.6299
[DCX] Cutting Diameter Maximum (mm):
16.00
[DC] Cutting Diameter (Decimal Inch):
0.3150 - 0.6299
[DC] Cutting Diameter (mm):
8.00 - 16.00
[KAPR] Tool Entering Angle (Degree):
10
Manufactured By:
KYOCERA Precision Tools
