Item Sales Info
Part Number: THN07510 / Vendor ID Number: 10831 / Custom:
KYOCERA Precision Tools THN07510

KYOCERA Precision Tools THN07510
by KYOCERA Precision Tools

Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview

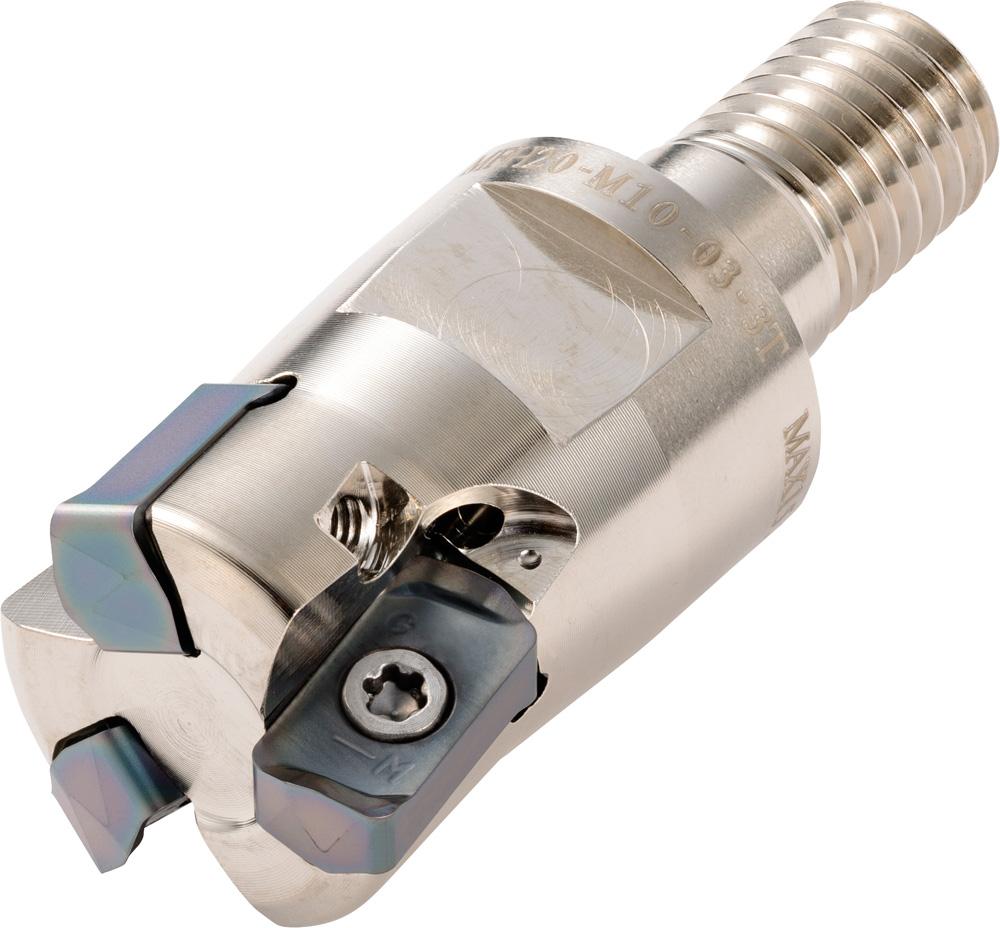

Kyocera MFH 22M10033T, MFH-Mini, Modular Head, High-Feed End Mill
Kyocera MFH 22M10033T MFH-Mini Series, 3 Flute, Modular Head, High-Feed End Mill with a 22.00mm Cutting Diameter for High-Feed MIlling, Facing, Shoulding, Slotting, Ramping, Helical Milling, Plunging Applications
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Number of Flutes:
Shank Type:
Chipbreaker:
Additional options that would change other selections
Material:
Additional options that would change other selections
Info & Guides
PDF
Technical Details
Details
Category:
Milling
Subcategory:
Indexable
Subtype:
Indexable End Mills
Insert Holding Method:
Screw
Material:
Steel
Number of Flutes:
3
Shank Type:
Modular Connection
Additional Manufacturer Part Number:
8844053
ANSI Part Number:
MFH22M10033T
Application:
Facing|Helical Milling|High Feed|Plunging|Ramping|Shouldering|Slotting
California Prop 65 Item:
View
Coolant Through (Yes/No):
Yes
Country of Origin:
US, JAPAN, CHINA, SOUTH KOREA, OTHER
Discount Category Description:
Steel / Hardware
ECCN:
EAR99
Feature 1:
Reduce cycle time during roughing applications
Feature 2:
Economical Inserts with 4 cutting edges
Feature 3:
MFH-Mini controls chip biting with convex cutting edge design
Feature 4:
Fine pitch availability for efficient machining
Feature 5:
Compatible with (3) LOGU03… style inserts
Hand:
Right-Hand
Harmonized Code:
8466.10.0130
ISO Part Number:
MFH22-M10-03-3T
Material Group / Grade:
GR99
Min Order Qty:
1
Number of Inserts:
3
Origin:
JPN
Pack Height:
1.535
Pack Length:
8.268
Pack Width:
1.535
Product URL:
https://app.catsy.com/app/share/739/o/collections/4004662142/digitalcatalog/item?sku=8844053
Series Description:
MFH-Mini Milling
Series.1:
MFHI
Shipping Weight:
0.2751
Tool Style:
MFH
Unit (inch/mm):
mm
UNSPSC:
27112803
UNSPSC Title:
End Mills
Video 1:
https://www.youtube.com/watch?v=Za2btdmBzyI
Video 2:
https://www.youtube.com/watch?v=-wsbRf-mfqE
Weldon Flat:
No

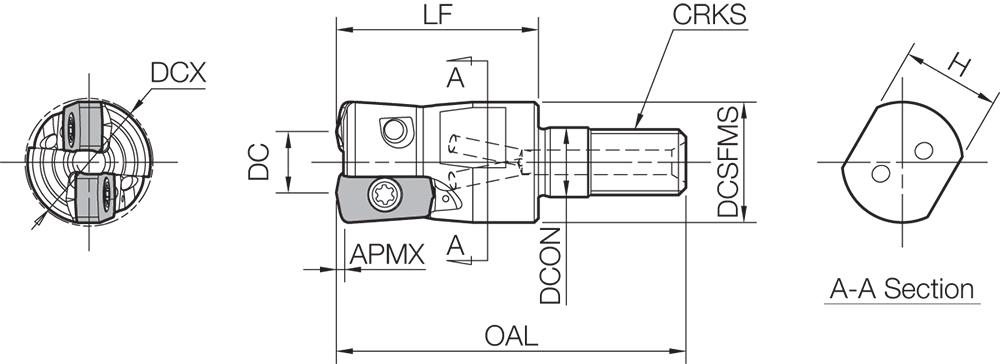

[APMX] Maximum Depth of Cut (Decimal Inch):
0.0394
[APMX] Maximum Depth of Cut (mm):
1.00
[DCN] Cutting Diameter Minimum (Decimal Inch):
0.5512
[DCN] Cutting Diameter Minimum (mm):
14.00
[DCON] Connection Diameter (Decimal Inch):
0.4134
[DCON] Connection Diameter (mm):
10.50
[DCSFMS] Contact Surface Diameter Machine Side (De:
0.7362
[DCSFMS] Contact Surface Diameter Machine Side (mm:
18.70
[DCX] Cutting Diameter Maximum (Decimal Inch):
0.8661
[DCX] Cutting Diameter Maximum (mm):
22.00
[DC] Cutting Diameter (Decimal Inch):
0.5512 - 0.8661
[DC] Cutting Diameter (mm):
14.00 - 22.00
[H] Shank Height (Decimal Inch):
0.5906
[H] Shank Height (mm):
15.00
Manufactured By:
KYOCERA Precision Tools
