Item Sales Info

Part Number: 6719394 / Vendor ID Number: 11770 / Custom:

Solid carbide shoulder/slot mills
by Walter Tool

Add To Quote

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Overview

Solid carbide shoulder/slot mills MC326-12.0W4BCJ-WK40TF

Solid carbide shoulder/slot mills MC326 • Supreme • DIN 6535 HB shank • metric • flute helix angle 50° • Long reach • Type N 50 • center cutting capability • WK40TF • Dc=0.4724in • Z=4

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Specific Products:

Additional Information

Long reach

Long reach|Type N 50

Type N 50

Info & Guides

Technical Details

Details

Category:

Milling

Subcategory:

Solid

Subtype:

Square End Mills

A1 Cutting diameter:

12 mm

A1_INCH Cutting diameter:

0,47244094488189 inch

A5 Neck diameter:

11,4 mm

A5_INCH Neck diameter:

0,448818897637795 inch

APMX Depth of cut maximum:

12 mm

APMX_INCH Depth of cut maximum:

0,47244094488189 inch

ART_ID_TO type=others:

5007112;5007122;5007377;5012622;5012628;5012637;5017243;5033137;5033138;5033139;5033140;5034294;5034308;5034501;5035307;5040063;5012458;5029303;5040066;5040067;5029304;5040069;5040070;5029305;5040072;5029306;5040074;5040075;5040664;5043220;5043221;5043222;

B2 Depth of cut maximum:

12 mm

B2_INCH Depth of cut maximum:

0,47244094488189 inch

B3 Protruding length:

38 mm

B3_INCH Protruding length:

1,49606299212598 inch

B4 Usable length:

36 mm

B4_INCH Usable length:

1,41732283464567 inch

B5 Overall length:

83 mm

B5_INCH Overall length:

3,26771653543307 inch

B6 Head length:

38 mm

B6_INCH Head length:

1,49606299212598 inch

B71 Functional length:

60,5 mm

B71_INCH Functional length:

2,38188976377953 inch

B9 Neck length:

35,48

BD Body diameter:

11,4 mm

BD_INCH Body diameter:

0,448818897637795 inch

BLD Tool style code:

BMC Body material code:

C11 Connection code type machine side:

ZYL

C12 Connection code form at machine side:

C14 Connection code unit base machine side:

C15 Connection code style machine side:

C2 Connection size code machine side:

120

C3 Connection diameter machine side:

12 mm

C31 ISO-tolerance class shank diameter:

C3_INCH Connection diameter machine side:

0,47244094488189 inch

C4 Shank length:

45 mm

C4_INCH Shank length:

1,77165354330709 inch

CBMD Chip breaker manufacturers designation:

STRAI

CCMS Connection code machine side:

ZYL10G1200h$05

CHW Corner chamfer width:

0,1 mm

CHW_INCH Corner chamfer width:

0,00393700787401575 inch

CNSC Coolant entry style code:

COATING Coating:

TiAlN

CONTENT_UNIT:

PCE

CP Coolant pressure:

0 MPa

CPDF Cutting pitch differential:

CUB Connection unit basis:

CUBPMS Connection unit base precision machine side:

CURRENCY:

USD

CXSC Coolant exit style code:

CZCMS Connection size code machine side:

120

D6 Rotational speed maximum:

80000 1/min

D7 Weight of item:

0,124 kg

D7_INCH Weight of item:

0,2733704 lbs

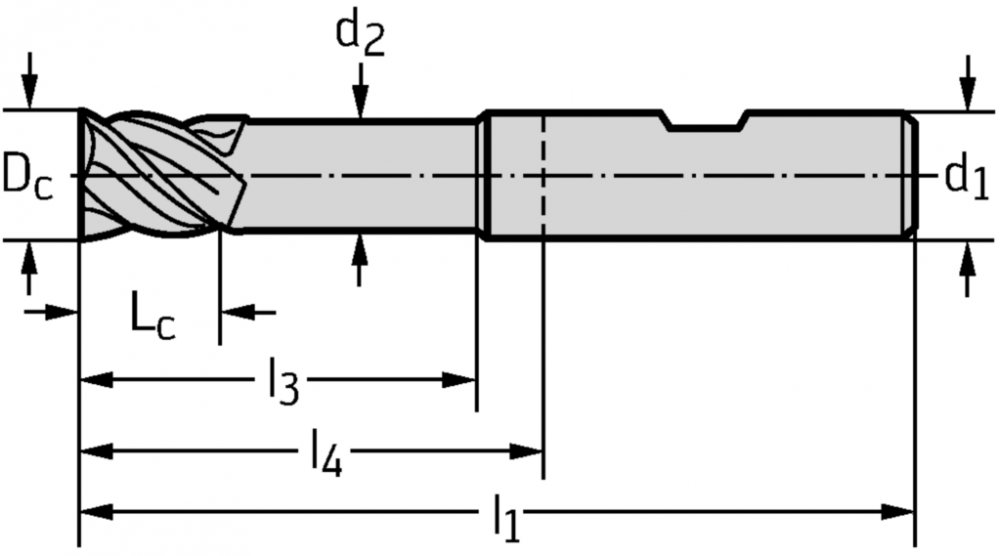

d1 Shank diameter:

12 mm

d2 Body diameter:

11,4 mm

Dc Cutting edge diameter:

12 mm

DC Cutting diameter:

12 mm

DC_INCH Cutting diameter:

0,47244094488189 inch

Designation Tool designation:

MC326-12.0W4BCJ-WK40TF

DN Neck diameter:

11,4 mm

DN_INCH Neck diameter:

0,448818897637795 inch

E2 Rake angle radial:

10,5 °

E3 Rake angle axial:

4 °

E4 Ramping angle maximum:

6 °

EAN:

4042446262624

F1 Cutting direction:

F21 Peripheral effective cutting edge count:

F22 Face effective cutting edge count:

F3 Flute helix hand:

F4 Flute helix angle:

50 °

FHA Flute helix angle:

50 °

FHH Flute helix hand:

FMT Form type machine side:

EXT

G2 Corner chamfer width:

0,1 mm

G2_INCH Corner chamfer width:

0,00393700787401575 inch

G3 Corner chamfer angle:

45 °

GAMF Rake angle radial:

10,5 °

GAMP Rake angle axial:

4 °

GRADE Grade manufacturer's designation:

WK40TF

H11 Standard designation of the grade, main applic:

H21 Coolant entry style code:

H22 Coolant exit style code:

H3 Grade manufacturer's designation:

WK40TF

H4 Body material code:

H5 Coating:

TiAlN

HAND Cutting direction:

IEP Interupted edge property:

J1 Standard:

DIN 6527 L

J11 Standard letter to the standard number:

J21 Article number:

MC326-12.0W4BCJ-WK40TF

J3 Company code:

J6 Connection code machine side:

ZYL10G1200h$05

J7 Data chip provision:

J8 Machining operation:

FPL

KAP Kappa:

90 °

KAPR Tool cutting edge angle:

90 °

KCH Corner chamfer angle:

45 °

KEYWORD:

Solid Cutting Tool|Milling||Slotting and milling cutters|MC326

l11 Corner chamfer width:

0,1 mm

l1 Overall length:

83 mm

l3 Usable length:

36 mm

l4 Functional length:

38 mm

Lc Cutting edge length:

12 mm

LB Body length:

36,52 mm

LB_INCH Body length:

1,43779527559055 inch

LF Functional length:

60,5 mm

LF_INCH Functional length:

2,38188976377953 inch

LPR Protruding length:

38 mm

LPR_INCH Protruding length:

1,49606299212598 inch

LS Shank length:

45 mm

LSC Clamping length:

45 mm

LSC_INCH Clamping length:

1,77165354330709 inch

LS_INCH Shank length:

1,77165354330709 inch

LU Usable length:

36 mm

LU_INCH Usable length:

1,41732283464567 inch

MANUFACTURER_AID:

MC326-12.0W4BCJ-WK40TF

NO_CU_PER_OU:

NSM Standard number of properties layout:

DIN4000-82

OAL Overall length:

83 mm

OAL_INCH Overall length:

3,26771653543307 inch

OHX Protruding length:

38 mm

OHX_INCH Protruding length:

1,49606299212598 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

QUANTITY_INTERVAL:

QUANTITY_MIN:

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

Solid carbide shoulder/slot mills MC326 • Supreme • metric • DIN 6535 HB shank • flute helix angle 50° • Long reach • Type N 50 • center cutting capability

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21180602

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21180602

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21180602

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21010504

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21010504

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21010504

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21180602

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21180602

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21180602

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21180602

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21180602

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21180602

REFERENCE_FEATURE_GROUP_ID_GTC:

MILSQS

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

23241614

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

23241614

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

23171612

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

23171612

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

23171612

REFERENCE_FEATURE_GROUP_ID_Walter:

MC326-W-4-BCJ

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

RMPX Ramping angle maximum:

6 °

RPMX Rotational speed maximum:

80000 1/min

SUPPLIER_AID:

6719394

SUPPLIER_ALT_AID:

6719394

TERRITORY:

TSYC Tool style code:

MC326-W-4-BCJ

UDX.APPAREA:

Milling

UDX.BRAND:

Walter Prototyp

UDX.BULLETTEXT_1:

Long reach

UDX.BULLETTEXT_2:

Type N 50

UDX.CATFAM_CODE:

MC326

UDX.CATFAM_DESCR:

Solid carbide shoulder/slot mills

UDX.DESCR_APPLICATION:

For roughing and finishing;For pocket milling, ramping and contour milling;Primary application: ISO material group P;Secondary applications: ISO material groups M, K and S;Areas of use: General mechanical engineering, and the energy, medical, aerospace and

UDX.DESCR_TOOL:

Full slotting up to 0.9 × D_c;The reduced neck also makes it suitable for machining relatively deep cavities;Universal high-performance milling cutter;50° helix angle

UDX.DISCOUNTGROUP:

M30

UDX.ITEMTYPE:

Solid Cutting Tool

UDX.NET_WEIGHT:

.2734

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

.7087

UDX.PACKAGING_HEIGHT_UNIT:

UDX.PACKAGING_LENGTH:

3.5433

UDX.PACKAGING_LENGTH_UNIT:

UDX.PACKAGING_MATERIAL_WEIGHT:

.2778

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

1.7795

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

.7087

UDX.PACKAGING_WIDTH_UNIT:

UDX.PRODUCTFAMILY:

MC326

UDX.PRODUCTLINE:

Supreme

UDX.RANKING_ISO_H:

No application

UDX.RANKING_ISO_K:

Additional application

UDX.RANKING_ISO_M:

Additional application

UDX.RANKING_ISO_N:

No application

UDX.RANKING_ISO_O:

No application

UDX.RANKING_ISO_P:

Main application

UDX.RANKING_ISO_S:

Additional application

UDX.WORKING_CONDITION_ISO_H:

n/a

UDX.WORKING_CONDITION_ISO_K:

moderate

UDX.WORKING_CONDITION_ISO_M:

moderate

UDX.WORKING_CONDITION_ISO_N:

n/a

UDX.WORKING_CONDITION_ISO_O:

n/a

UDX.WORKING_CONDITION_ISO_P:

good

UDX.WORKING_CONDITION_ISO_S:

moderate

ULDR Usable length diameter ratio:

WT Weight of item:

0,124 kg

WT_INCH Weight of item:

0,2733704 lbs

XYWD xyw plane distance:

-83 mm

XYWD_INCH xyw plane distance:

-3,26771653543307 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

0 mm

Z Number of teeth:

ZEFF Face effective cutting edge count:

Manufactured By:

Walter Tool
