Part Number: 5150457 / Vendor ID Number: 11770 / Custom:

Solid carbide shoulder/slot mills
by Walter Tool

Add To Quote

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Overview

Solid carbide shoulder/slot mills H3094728-12

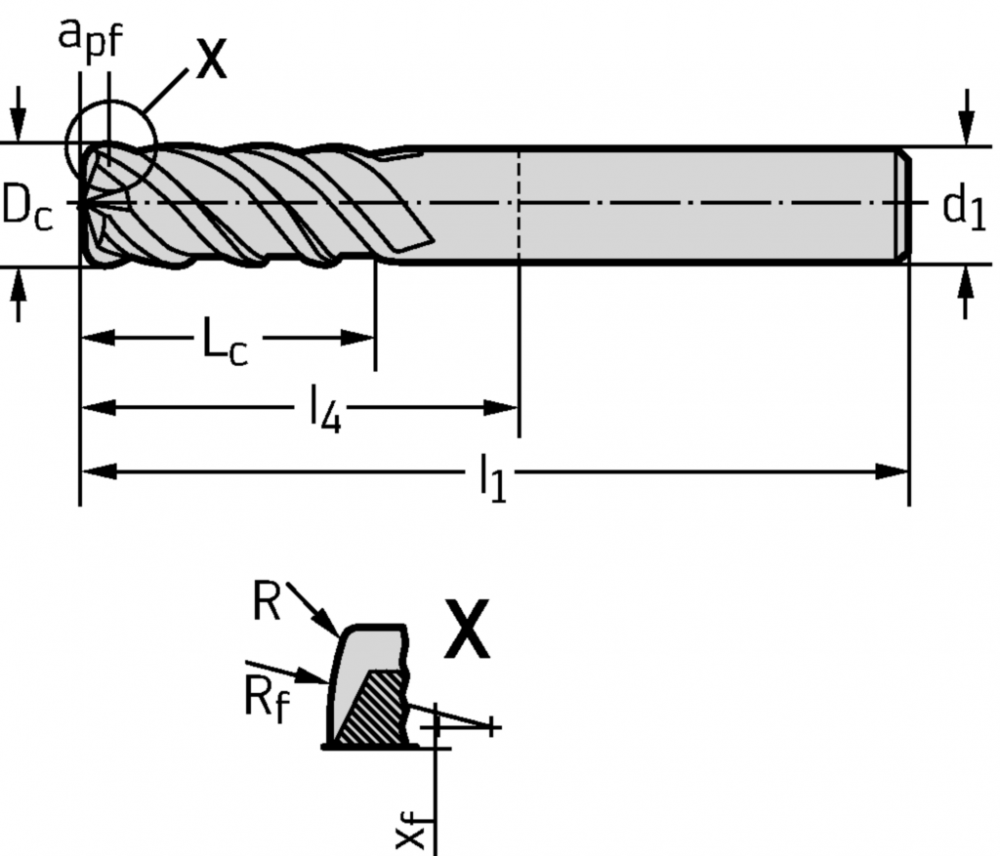

Solid carbide shoulder/slot mills H3094728 • Protostar^® Flash • DIN 6535 HA shank • metric • flute helix angle 50° • TAX • Dc=0.4724in • Z=4

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Specific Products:

Additional Information

Long reach

Type Flash H 50

Type Flash H 50|Long reach

Info & Guides

Technical Details

Details

Category:

Milling

Subcategory:

Solid

Subtype:

Corner Radius and Corner Chamfer End Mills

A1 Cutting diameter:

12 mm

A1_INCH Cutting diameter:

0,47244094488189 inch

APMX Depth of cut maximum:

30 mm

APMX_INCH Depth of cut maximum:

1,18110236220472 inch

ART_ID_TO type=others:

5007214;6358413;6362346;6380959;6381038;6381039;6381079;6381121;6381125;6381126;6381127;6381128;6381129;6381180;6381181;6852042;6852043;6852047;6852048;6852121;6852122;6852123;6852124;8156066;8156069;8156073;8156076;8156080;8156082;8156086;8156088;8698234;

B2 Depth of cut maximum:

30 mm

B2_INCH Depth of cut maximum:

1,18110236220472 inch

B3 Protruding length:

38 mm

B3_INCH Protruding length:

1,49606299212598 inch

B4 Usable length:

30 mm

B4_INCH Usable length:

1,18110236220472 inch

B5 Overall length:

83 mm

B5_INCH Overall length:

3,26771653543307 inch

B6 Head length:

38 mm

B6_INCH Head length:

1,49606299212598 inch

B71 Functional length:

83 mm

B71_INCH Functional length:

3,26771653543307 inch

B9 Neck length:

BD Body diameter:

12 mm

BD_INCH Body diameter:

0,47244094488189 inch

BLD Tool style code:

BMC Body material code:

C11 Connection code type machine side:

ZYL

C12 Connection code form at machine side:

C14 Connection code unit base machine side:

C15 Connection code style machine side:

C2 Connection size code machine side:

120

C3 Connection diameter machine side:

12 mm

C31 ISO-tolerance class shank diameter:

C3_INCH Connection diameter machine side:

0,47244094488189 inch

C4 Shank length:

45 mm

C4_INCH Shank length:

1,77165354330709 inch

CBMD Chip breaker manufacturers designation:

STRAI

CCMS Connection code machine side:

ZYL01G1200h$05

CNSC Coolant entry style code:

COATING Coating:

TiAlN

CONTENT_UNIT:

PCE

CP Coolant pressure:

0 MPa

CPDF Cutting pitch differential:

CUB Connection unit basis:

CUBPMS Connection unit base precision machine side:

CURRENCY:

USD

CXSC Coolant exit style code:

CZCMS Connection size code machine side:

120

D6 Rotational speed maximum:

80000 1/min

D7 Weight of item:

0,125 kg

D7_INCH Weight of item:

0,275575 lbs

DC Cutting diameter:

12 mm

DC_INCH Cutting diameter:

0,47244094488189 inch

Designation Tool designation:

H3094728-12

E2 Rake angle radial:

-18 °

E3 Rake angle axial:

-6 °

E4 Ramping angle maximum:

3 °

EAN:

4042446145132

F1 Cutting direction:

F21 Peripheral effective cutting edge count:

F22 Face effective cutting edge count:

F3 Flute helix hand:

F4 Flute helix angle:

50 °

FHA Flute helix angle:

50 °

FHH Flute helix hand:

FMT Form type machine side:

EXT

G1 Corner radius:

1,5 mm

G1_INCH Corner radius:

0,0590551181102362 inch

G7:

1,5

GAMF Rake angle radial:

-18 °

GAMP Rake angle axial:

-6 °

GRADE Grade manufacturer's designation:

TAX

H11 Standard designation of the grade, main applic:

H21 Coolant entry style code:

H22 Coolant exit style code:

H3 Grade manufacturer's designation:

TAX

H4 Body material code:

H5 Coating:

TiAlN

HAND Cutting direction:

IEP Interupted edge property:

J1 Standard:

DIN 6527 L

J11 Standard letter to the standard number:

J21 Article number:

H3094728-12

J3 Company code:

J6 Connection code machine side:

ZYL01G1200h$05

J7 Data chip provision:

J8 Machining operation:

FNU

KAP Kappa:

0 °

KAPR Tool cutting edge angle:

90 °

KEYWORD:

Solid Cutting Tool|Milling|Protostar^® Flash|End milling cutters|1H3094728

LB Head length:

38 mm

LB_INCH Head length:

1,49606299212598 inch

LF Functional length:

83 mm

LF_INCH Functional length:

3,26771653543307 inch

LS Shank length:

45 mm

LS_INCH Shank length:

1,77165354330709 inch

LU Usable length:

30 mm

LU_INCH Usable length:

1,18110236220472 inch

MANUFACTURER_AID:

H3094728-12

NO_CU_PER_OU:

NSM Standard number of properties layout:

DIN4000-82

OAL Overall length:

83 mm

OAL_INCH Overall length:

3,26771653543307 inch

OHX Protruding length:

38 mm

OHX_INCH Protruding length:

1,49606299212598 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

QUANTITY_INTERVAL:

QUANTITY_MIN:

RE Corner radius:

1,5 mm

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

Solid carbide shoulder/slot mills H3094728 • Protostar^® Flash • DIN 6535 HA shank • metric • flute helix angle 50°

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21180601

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21180601

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21180601

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21010504

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21010504

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21010504

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21180601

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21180601

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21180601

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21180601

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21180601

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21180601

REFERENCE_FEATURE_GROUP_ID_GTC:

MILFS

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

23241614

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

23241614

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

23171612

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

23171612

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

23171612

REFERENCE_FEATURE_GROUP_ID_Walter:

H3094728

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RE_INCH Corner radius:

0,0590551181102362 inch

RHO Rho:

0 °

RMPX Ramping angle maximum:

3 °

RPMX Rotational speed maximum:

80000 1/min

SUPPLIER_AID:

5150457

SUPPLIER_ALT_AID:

5150457

TERRITORY:

TSYC Tool style code:

H3094728

UDX.APPAREA:

Milling

UDX.BRAND:

Walter Prototyp

UDX.BULLETTEXT_1:

Type Flash H 50

UDX.BULLETTEXT_2:

Long reach

UDX.CATFAM_CODE:

H3094728

UDX.CATFAM_DESCR:

Solid carbide shoulder/slot mills

UDX.DISCOUNTGROUP:

MS2

UDX.ITEMTYPE:

Solid Cutting Tool

UDX.NET_WEIGHT:

.2756

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

.7087

UDX.PACKAGING_HEIGHT_UNIT:

UDX.PACKAGING_LENGTH:

3.5433

UDX.PACKAGING_LENGTH_UNIT:

UDX.PACKAGING_MATERIAL_WEIGHT:

.2933

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

1.7795

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

.7087

UDX.PACKAGING_WIDTH_UNIT:

UDX.PRODUCTFAMILY:

1H3094728

ULDR Usable length diameter ratio:

2,5

WT Weight of item:

0,125 kg

WT_INCH Weight of item:

0,275575 lbs

XYWD xyw plane distance:

-83 mm

XYWD_INCH xyw plane distance:

-3,26771653543307 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

0 mm

YZWD_INCH yzw plane distance:

0 inch

ZEFF Face effective cutting edge count:

ZEFP Peripheral effective cutting edge count:
