Item Sales Info

Part Number: 7873211 / Vendor ID Number: 11770 / Custom:

Solid carbide shoulder milling cutters
by Walter Tool

Add To Quote

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Overview

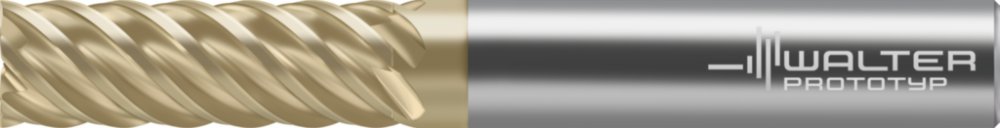

Solid carbide shoulder milling cutters MD128-25.0A8LJ-WJ30RA

Solid carbide shoulder milling cutters MD128 • Supreme • DIN 6535 HA shank • metric • flute helix angle 50° • Type N 50 • WJ30RA • Dc=0.9843in • Z=8

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Specific Products:

Additional Information

Type N 50

Info & Guides

Technical Details

Details

Category:

Milling

Subcategory:

Solid

Subtype:

Square End Mills

A1 Cutting diameter:

25 mm

A1_INCH Cutting diameter:

0,984251968503937 inch

APMX Depth of cut maximum:

75 mm

APMX_INCH Depth of cut maximum:

2,95275590551181 inch

ART_ID_TO type=others:

5007217;5033140;5034321;5034501;5040075;5043224;5043228;5043230;5043234;5043236;5043648;6261587;6261633;6261641;6261650;6264784;6264968;6265004;6265009;6265129;6265183;6362392;6381079;6381127;6381181;6426306;6426330;6840751;6840755;6852048;8651471;8651472;

B2 Depth of cut maximum:

75 mm

B2_INCH Depth of cut maximum:

2,95275590551181 inch

B3 Protruding length:

94 mm

B3_INCH Protruding length:

3,7007874015748 inch

B4 Usable length:

75 mm

B4_INCH Usable length:

2,95275590551181 inch

B5 Overall length:

150 mm

B5_INCH Overall length:

5,90551181102362 inch

B6 Head length:

94 mm

B6_INCH Head length:

3,7007874015748 inch

B71 Functional length:

150 mm

B71_INCH Functional length:

5,90551181102362 inch

B9 Neck length:

BD Body diameter:

25 mm

BD_INCH Body diameter:

0,984251968503937 inch

BLD Tool style code:

BMC Body material code:

C11 Connection code type machine side:

ZYL

C12 Connection code form at machine side:

C14 Connection code unit base machine side:

C15 Connection code style machine side:

C2 Connection size code machine side:

250

C3 Connection diameter machine side:

25 mm

C31 ISO-tolerance class shank diameter:

C3_INCH Connection diameter machine side:

0,984251968503937 inch

C4 Shank length:

56 mm

C4_INCH Shank length:

2,20472440944882 inch

CBMD Chip breaker manufacturers designation:

STRAI

CCMS Connection code machine side:

ZYL01G2500h$06

CHW Corner chamfer width:

0,15 mm

CHW_INCH Corner chamfer width:

0,00590551181102362 inch

CNSC Coolant entry style code:

COATING Coating:

TiAlN + TiAl

CONTENT_UNIT:

PCE

CP Coolant pressure:

0 MPa

CPDF Cutting pitch differential:

CUB Connection unit basis:

CUBPMS Connection unit base precision machine side:

CURRENCY:

USD

CXSC Coolant exit style code:

CZCMS Connection size code machine side:

250

D6 Rotational speed maximum:

80000 1/min

D7 Weight of item:

0,976 kg

D7_INCH Weight of item:

2,1516896 lbs

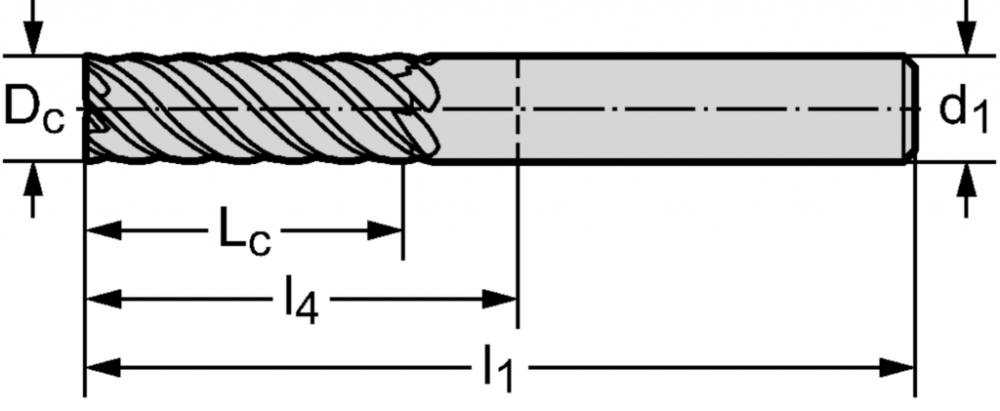

d1 Shank diameter:

25 mm

Dc Cutting edge diameter:

25 mm

DC Cutting diameter:

25 mm

DC_INCH Cutting diameter:

0,984251968503937 inch

Designation Tool designation:

MD128-25.0A8LJ-WJ30RA

E2 Rake angle radial:

10,5 °

E3 Rake angle axial:

13,5 °

E4 Ramping angle maximum:

4 °

EAN:

4042446307806

F1 Cutting direction:

F21 Peripheral effective cutting edge count:

F22 Face effective cutting edge count:

F3 Flute helix hand:

F4 Flute helix angle:

50 °

FHA Flute helix angle:

50 °

FHH Flute helix hand:

FMT Form type machine side:

EXT

G2 Corner chamfer width:

0,15 mm

G2_INCH Corner chamfer width:

0,00590551181102362 inch

G3 Corner chamfer angle:

45 °

GAMF Rake angle radial:

10,5 °

GAMP Rake angle axial:

13,5 °

GRADE Grade manufacturer's designation:

WJ30RA

H11 Standard designation of the grade, main applic:

H21 Coolant entry style code:

H22 Coolant exit style code:

H3 Grade manufacturer's designation:

WJ30RA

H4 Body material code:

H5 Coating:

TiAlN + TiAl

HAND Cutting direction:

IEP Interupted edge property:

J1 Standard:

PWZ-NORM

J11 Standard letter to the standard number:

J21 Article number:

MD128-25.0A8LJ-WJ30RA

J3 Company code:

J6 Connection code machine side:

ZYL01G2500h$06

J7 Data chip provision:

J8 Machining operation:

FPL

KAP Kappa:

90 °

KAPR Tool cutting edge angle:

90 °

KCH Corner chamfer angle:

45 °

KEYWORD:

Solid Cutting Tool|Milling||End milling cutters|MD128

l11 Corner chamfer width:

0,15 mm

l1 Overall length:

150 mm

l4 Functional length:

94 mm

Lc Cutting edge length:

75 mm

LF Functional length:

150 mm

LF_INCH Functional length:

5,90551181102362 inch

LS Shank length:

56 mm

LS_INCH Shank length:

2,20472440944882 inch

LU Usable length:

75 mm

LU_INCH Usable length:

2,95275590551181 inch

MANUFACTURER_AID:

MD128-25.0A8LJ-WJ30RA

NO_CU_PER_OU:

NSM Standard number of properties layout:

DIN4000-82

OAL Overall length:

150 mm

OAL_INCH Overall length:

5,90551181102362 inch

OHX Protruding length:

94 mm

OHX_INCH Protruding length:

3,7007874015748 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

QUANTITY_INTERVAL:

QUANTITY_MIN:

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

Solid carbide shoulder milling cutters MD128 • Supreme • metric • DIN 6535 HA shank • flute helix angle 50° • Type N 50

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21180601

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21180601

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21180601

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21010504

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21010504

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21010504

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21180601

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21180601

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21180601

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21180601

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21180601

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21180601

REFERENCE_FEATURE_GROUP_ID_GTC:

MILSQS

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

23241614

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

23241614

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

23171612

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

23171612

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

23171612

REFERENCE_FEATURE_GROUP_ID_Walter:

MD128-A-L-J

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

RMPX Ramping angle maximum:

4 °

RPMX Rotational speed maximum:

80000 1/min

SUPPLIER_AID:

7873211

SUPPLIER_ALT_AID:

7873211

TERRITORY:

TSYC Tool style code:

MD128-A-L-J

UDX.APPAREA:

Milling

UDX.BRAND:

Walter Prototyp

UDX.BULLETTEXT_1:

Type N 50

UDX.CATFAM_CODE:

MD128

UDX.CATFAM_DESCR:

Solid carbide shoulder milling cutters

UDX.DISCOUNTGROUP:

M30

UDX.ITEMTYPE:

Solid Cutting Tool

UDX.NET_WEIGHT:

2.1521

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

1.3780

UDX.PACKAGING_HEIGHT_UNIT:

UDX.PACKAGING_LENGTH:

6.2992

UDX.PACKAGING_LENGTH_UNIT:

UDX.PACKAGING_MATERIAL_WEIGHT:

2.1521

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

11.9607

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

1.3780

UDX.PACKAGING_WIDTH_UNIT:

UDX.PRODUCTFAMILY:

MD128

UDX.PRODUCTLINE:

Supreme

UDX.RANKING_ISO_H:

No application

UDX.RANKING_ISO_K:

No application

UDX.RANKING_ISO_M:

Main application

UDX.RANKING_ISO_N:

No application

UDX.RANKING_ISO_O:

No application

UDX.RANKING_ISO_P:

No application

UDX.RANKING_ISO_S:

Main application

UDX.WORKING_CONDITION_ISO_H:

n/a

UDX.WORKING_CONDITION_ISO_K:

n/a

UDX.WORKING_CONDITION_ISO_M:

good

UDX.WORKING_CONDITION_ISO_N:

n/a

UDX.WORKING_CONDITION_ISO_O:

n/a

UDX.WORKING_CONDITION_ISO_P:

n/a

UDX.WORKING_CONDITION_ISO_S:

good

ULDR Usable length diameter ratio:

1,8

WT Weight of item:

0,976 kg

WT_INCH Weight of item:

2,1516896 lbs

XYWD xyw plane distance:

-150 mm

XYWD_INCH xyw plane distance:

-5,90551181102362 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

0 mm

YZWD_INCH yzw plane distance:

0 inch

Z Number of teeth:

ZEFF Face effective cutting edge count:

ZEFP Peripheral effective cutting edge count:

Manufactured By:

Walter Tool
