Item Sales Info

Part Number: 7872870 / Vendor ID Number: 11770 / Custom:

Solid carbide shoulder milling cutters
by Walter Tool

Add To Quote

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Overview

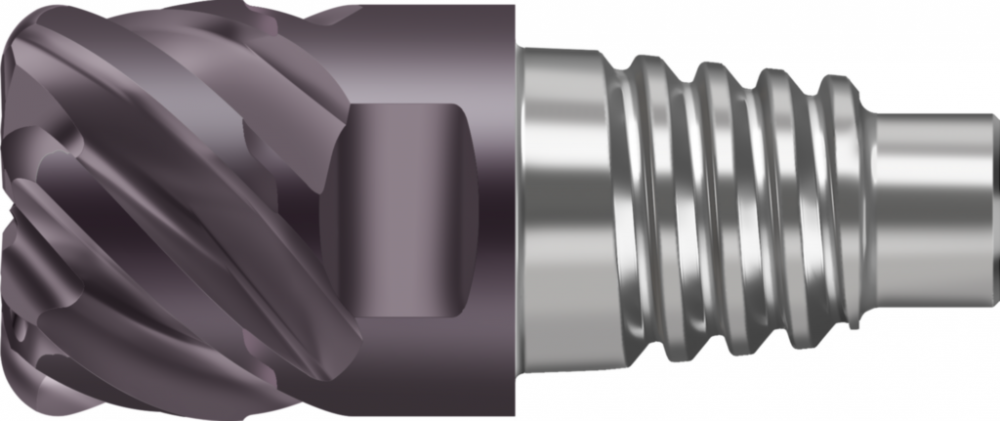

Solid carbide shoulder milling cutters MC128-12.0E6P050-WJ30TF

Solid carbide shoulder milling cutters MC128 • ConeFit • metric • flute helix angle 50° • Type N 50 • WJ30TF • Dc=0.4724in • R=0.0197in • Z=6

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Specific Products:

Additional Information

Type N 50

Info & Guides

Technical Details

Details

Category:

Milling

Subcategory:

Solid

Subtype:

Square End Mills

A1 Cutting diameter:

12 mm

A1_INCH Cutting diameter:

0,47244094488189 inch

A5 Neck diameter:

11,7 mm

A5_INCH Neck diameter:

0,460629921259843 inch

APMX Depth of cut maximum:

6,5 mm

APMX_INCH Depth of cut maximum:

0,255905511811024 inch

ART_ID_TO type=accessories:

5033121,5613707,5678644

ART_ID_TO type=others:

5634447;5634448;5634449;5634450;5835470;5835471;5930081;5930106;5930110;7171650

B2 Depth of cut maximum:

6,5 mm

B2_INCH Depth of cut maximum:

0,255905511811024 inch

B3 Protruding length:

14,5 mm

B3_INCH Protruding length:

0,570866141732283 inch

B4 Usable length:

14,5 mm

B4_INCH Usable length:

0,570866141732283 inch

B5 Overall length:

28,3 mm

B5_INCH Overall length:

1,11417322834646 inch

B6 Head length:

14,5 mm

B6_INCH Head length:

0,570866141732283 inch

B71 Functional length:

14,5 mm

B71_INCH Functional length:

0,570866141732283 inch

B9 Neck length:

14,5

BD Body diameter:

11,7 mm

BD_INCH Body diameter:

0,460629921259843 inch

BLD Tool style code:

BMC Body material code:

C11 Connection code type machine side:

SAC

C12 Connection code form at machine side:

C14 Connection code unit base machine side:

C15 Connection code style machine side:

C2 Connection size code machine side:

120

C3 Connection diameter machine side:

11,7 mm

C3_INCH Connection diameter machine side:

0,460629921259843 inch

CBMD Chip breaker manufacturers designation:

STRAI

CCMS Connection code machine side:

SAC04A0120$$$$

CNSC Coolant entry style code:

COATING Coating:

TiAlN

CONTENT_UNIT:

PCE

CP Coolant pressure:

0 MPa

CPDF Cutting pitch differential:

CUB Connection unit basis:

CUBPMS Connection unit base precision machine side:

CURRENCY:

USD

CXSC Coolant exit style code:

CZCMS Connection size code machine side:

120

D6 Rotational speed maximum:

80000 1/min

D7 Weight of item:

0,031 kg

D7_INCH Weight of item:

0,0683426 lbs

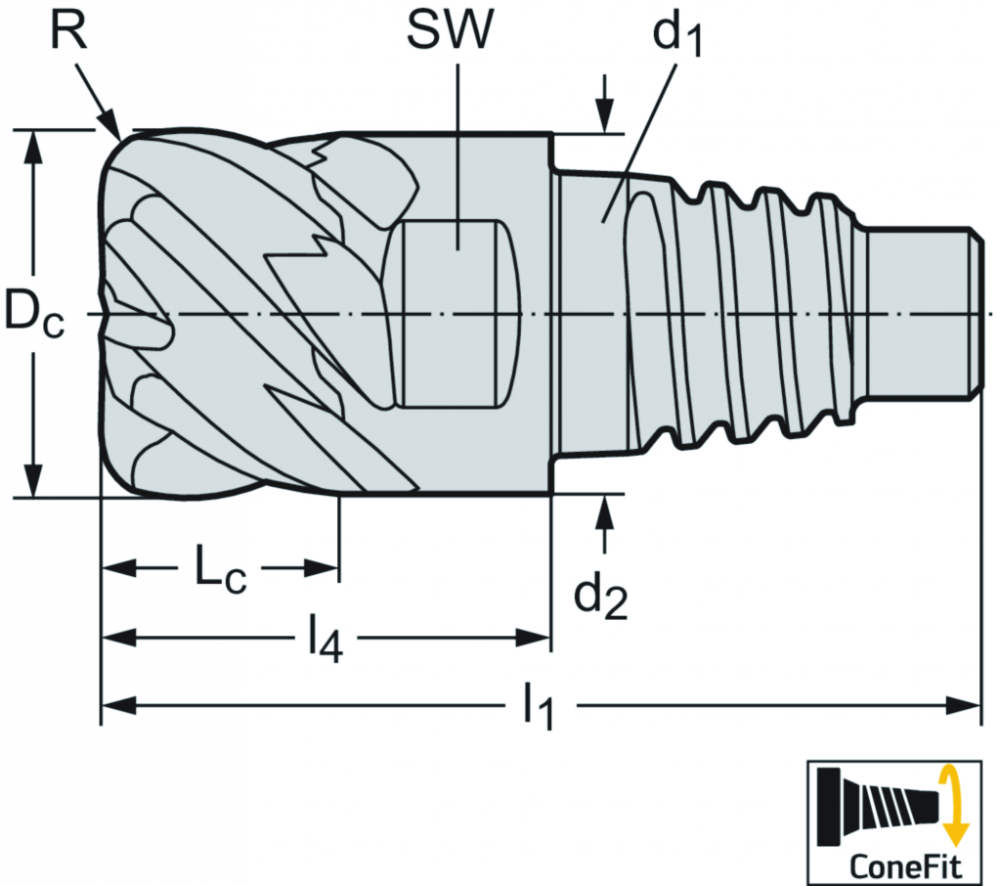

d1 Shank diameter:

E12

d2 Body diameter:

11,7 mm

Dc Cutting edge diameter:

12 mm

DC Cutting diameter:

12 mm

DC_INCH Cutting diameter:

0,47244094488189 inch

Designation Tool designation:

MC128-12.0E6P050-WJ30TF

DN Neck diameter:

11,7 mm

DN_INCH Neck diameter:

0,460629921259843 inch

E2 Rake angle radial:

10,5 °

E3 Rake angle axial:

13,5 °

E4 Ramping angle maximum:

4 °

EAN:

4042446307608

F1 Cutting direction:

F21 Peripheral effective cutting edge count:

F22 Face effective cutting edge count:

F3 Flute helix hand:

F4 Flute helix angle:

50 °

FHA Flute helix angle:

50 °

FHH Flute helix hand:

FMT Form type machine side:

EXT

G1 Corner radius:

0,5 mm

G1_INCH Corner radius:

0,0196850393700787 inch

GAMF Rake angle radial:

10,5 °

GAMP Rake angle axial:

13,5 °

GRADE Grade manufacturer's designation:

WJ30TF

H11 Standard designation of the grade, main applic:

H21 Coolant entry style code:

H22 Coolant exit style code:

H3 Grade manufacturer's designation:

WJ30TF

H4 Body material code:

H5 Coating:

TiAlN

HAND Cutting direction:

IEP Interupted edge property:

J1 Standard:

PWZ-NORM

J21 Article number:

MC128-12.0E6P050-WJ30TF

J3 Company code:

J6 Connection code machine side:

SAC04A0120$$$$

J7 Data chip provision:

J8 Machining operation:

FPL

KAP Kappa:

0 °

KAPR Tool cutting edge angle:

90 °

KEYWORD:

Solid Cutting Tool|Milling||End milling cutters|MC128

l1 Overall length:

28,3 mm

l4 Functional length:

14,5 mm

Lc Cutting edge length:

6,5 mm

LB Body length:

14,5 mm

LB_INCH Body length:

0,570866141732283 inch

LF Functional length:

14,5 mm

LF_INCH Functional length:

0,570866141732283 inch

LU Usable length:

14,5 mm

LU_INCH Usable length:

0,570866141732283 inch

MANUFACTURER_AID:

MC128-12.0E6P050-WJ30TF

NO_CU_PER_OU:

NSM Standard number of properties layout:

DIN4000-82

OAL Overall length:

28,3 mm

OAL_INCH Overall length:

1,11417322834646 inch

OHX Protruding length:

14,5 mm

OHX_INCH Protruding length:

0,570866141732283 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

QUANTITY_INTERVAL:

QUANTITY_MIN:

r Radius:

0,5 mm

RE Corner radius:

0,5 mm

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

Solid carbide shoulder milling cutters MC128 • metric • ConeFit • flute helix angle 50° • Type N 50

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21180601

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21180601

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21180601

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21010504

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21010504

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21010504

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21180601

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21180601

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21180601

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21180601

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21180601

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21180601

REFERENCE_FEATURE_GROUP_ID_GTC:

MILSQS

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

23241614

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

23241614

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

23171612

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

23171612

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

23171612

REFERENCE_FEATURE_GROUP_ID_Walter:

MC128-E-P-R

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RE_INCH Corner radius:

0,0196850393700787 inch

RHO Rho:

0 °

RMPX Ramping angle maximum:

4 °

RPMX Rotational speed maximum:

80000 1/min

SUPPLIER_AID:

7872870

SUPPLIER_ALT_AID:

7872870

SW Wrench size:

10 mm

TERRITORY:

TSYC Tool style code:

MC128-E-P-R

UDX.APPAREA:

Milling

UDX.BRAND:

Walter Prototyp

UDX.BULLETTEXT_1:

Type N 50

UDX.CATFAM_CODE:

MC128

UDX.CATFAM_DESCR:

Solid carbide shoulder milling cutters

UDX.DISCOUNTGROUP:

MS5

UDX.ITEMTYPE:

Solid Cutting Tool

UDX.NET_WEIGHT:

.0684

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

.7087

UDX.PACKAGING_HEIGHT_UNIT:

UDX.PACKAGING_LENGTH:

1.8898

UDX.PACKAGING_LENGTH_UNIT:

UDX.PACKAGING_MATERIAL_WEIGHT:

.0684

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

.9490

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

.7087

UDX.PACKAGING_WIDTH_UNIT:

UDX.PRODUCTFAMILY:

MC128

UDX.RANKING_ISO_H:

No application

UDX.RANKING_ISO_K:

Additional application

UDX.RANKING_ISO_M:

Additional application

UDX.RANKING_ISO_N:

No application

UDX.RANKING_ISO_O:

No application

UDX.RANKING_ISO_P:

Main application

UDX.RANKING_ISO_S:

Additional application

UDX.WORKING_CONDITION_ISO_H:

n/a

UDX.WORKING_CONDITION_ISO_K:

moderate

UDX.WORKING_CONDITION_ISO_M:

moderate

UDX.WORKING_CONDITION_ISO_N:

n/a

UDX.WORKING_CONDITION_ISO_O:

n/a

UDX.WORKING_CONDITION_ISO_P:

good

UDX.WORKING_CONDITION_ISO_S:

moderate

ULDR Usable length diameter ratio:

1,208

WT Weight of item:

0,031 kg

WT_INCH Weight of item:

0,0683426 lbs

XYWD xyw plane distance:

-14,5 mm

XYWD_INCH xyw plane distance:

-0,570866141732283 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

0 mm

YZWD_INCH yzw plane distance:

0 inch

Z Number of teeth:

ZEFF Face effective cutting edge count:

ZEFP Peripheral effective cutting edge count:

Manufactured By:

Walter Tool
