Details
A1_INCH Cutting edge length:
A2_INCH Functional width:
A3_INCH Functional length:
A4_INCH Functional height:
ART_ID_TO type=consists_of:
ART_ID_TO type=others:
7021198, ;7021199, ;8204925,
B3_INCH Protruding length:
C11 Connection code type machine side:
C12 Connection code form at machine side:
C14 Connection code unit base machine side:
C15 Connection code style machine side:
C2 Connection size code machine side:
CNSC Coolant entry style code:
CUB Connection unit basis:
CUBPMS Connection unit base precision machine side:
CXSC Coolant exit style code:
CZCMS Connection size code machine side:
Designation Tool designation:
E1 Tool cutting edge angle:
E2 Tool cutting edge angle type code:
E3 Insert included angle:
E4 Rake angle orthogonal:
F2 Tool holder shape code:
FMTMS Form type machine side:
GAMO Rake angle orthogonal:
h = h<sub>1</sub> Shank height:
H21 Coolant entry style code:
H22 Coolant exit style code:
HF_INCH Functional height:
Insert seat size Insert seat size:
J41 Insert interface code:
J42 Master insert identification:
J6 Connection code machine side:
KAPR Tool cutting edge angle:
KEYWORD:
Tool Item|Turning|Walter Turn|Neutral tool heads, turning, external|D10PS
l<sub>1</sub> Overall length:
l<sub>4</sub> Projection length:
LF_INCH Functional length:
LPR_INCH Protruding length:
MIID Master insert identification:
NSM Standard number of properties layout:
Possible indexable inserts:
REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

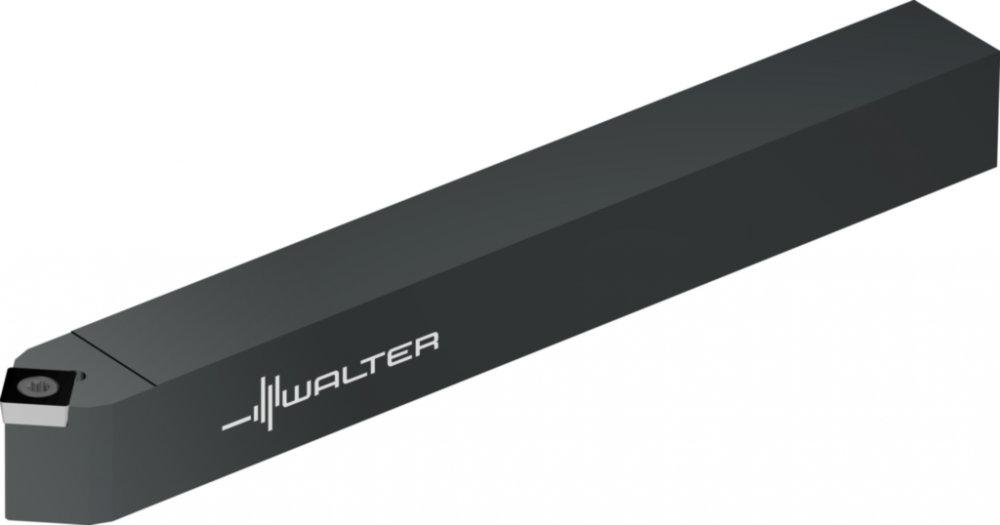

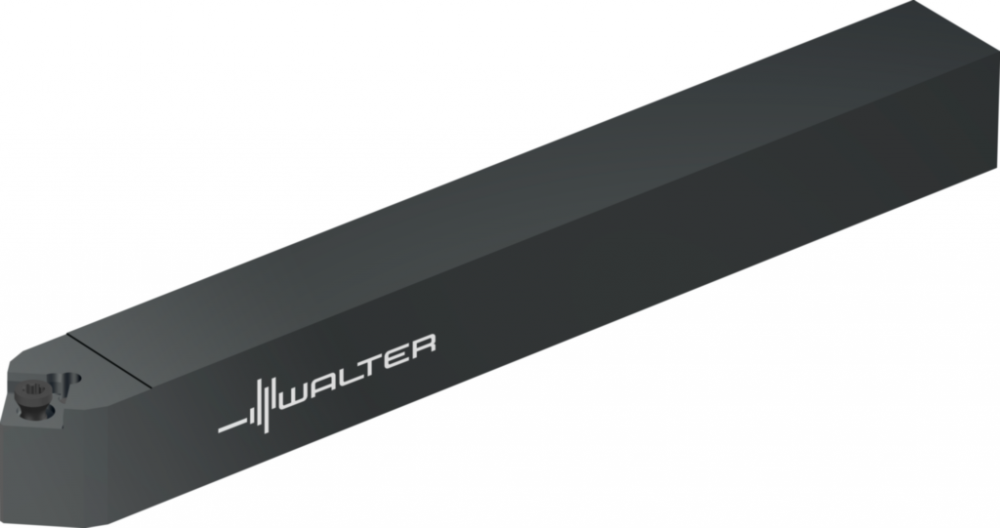

Shank tool – Screw clamping SSDCN • Walter Turn • inch • Square shank • κ=45° • Neutral
REFERENCE_FEATURE_GROUP_ID_ECLASS_10:
REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:
REFERENCE_FEATURE_GROUP_ID_ECLASS_11:
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:
REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:
REFERENCE_FEATURE_GROUP_ID_ECLASS_7:
REFERENCE_FEATURE_GROUP_ID_ECLASS_8:
REFERENCE_FEATURE_GROUP_ID_ECLASS_9:
REFERENCE_FEATURE_GROUP_ID_GTC:
REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:
REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:
REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:
REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:
REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:
REFERENCE_FEATURE_GROUP_ID_Walter:
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:
REFERENCE_FEATURE_SYSTEM_NAME_GTC:
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:
REFERENCE_FEATURE_SYSTEM_NAME_Walter:
SSC Insert seat size code:
Type Possible indexable inserts:
UDX.CATFAM_DESCR:
Shank tool – Screw clamping
UDX.DESCR_APPLICATION:
First choice for low cutting pressures/small-diameter shafts
UDX.DESCR_BENEFITS:
Torx Plus screw clamping for transmitting higher tightening torques;The indexable insert and shim can be replaced using the same wrench;Fewer assembly parts are required
UDX.DESCR_TOOL:
For indexable inserts with positive basic shape;Walter Turn shank tool with screw clamping (S)
UDX.PACKAGING_HEIGHT_UNIT:
UDX.PACKAGING_LENGTH_UNIT:
UDX.PACKAGING_MATERIAL_WEIGHT:
UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:
UDX.PACKAGING_VOLUME_UNIT:
UDX.PACKAGING_WIDTH_UNIT:
WF_INCH Functional width:
XYWD_INCH xyw plane distance:
XZWD_INCH xzw plane distance:
YZWD_INCH yzw plane distance:
λ<sub>s</sub> Inclination angle:
Manufactured By:
Walter Tool
