Item Sales Info

Part Number: 5327624 / Vendor ID Number: 11770 / Custom:

Shank tool – Screw clamping
by Walter Tool

Add To Quote

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Overview

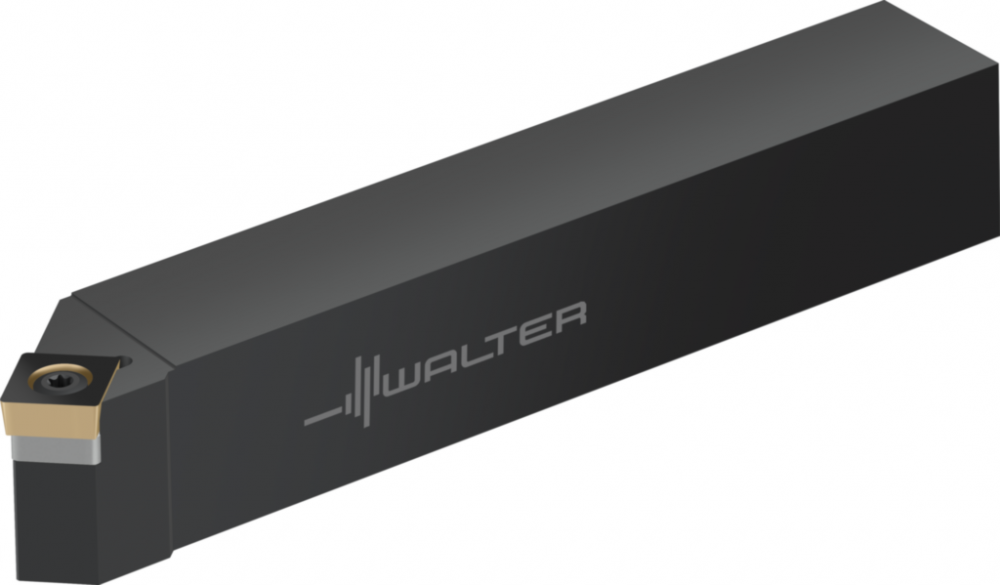

Shank tool – Screw clamping SSDCR2020K12

Shank tool – Screw clamping SSDC • Walter Turn • metric • Square shank • ?=45° • Right • 0.7874x0.7874in • square insert • SC .. 1204 ..

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Specific Products:

Info & Guides

Technical Details

Details

Category:

Turning

Subcategory:

Indexable Cutting Tools

Subtype:

Turning Toolholders

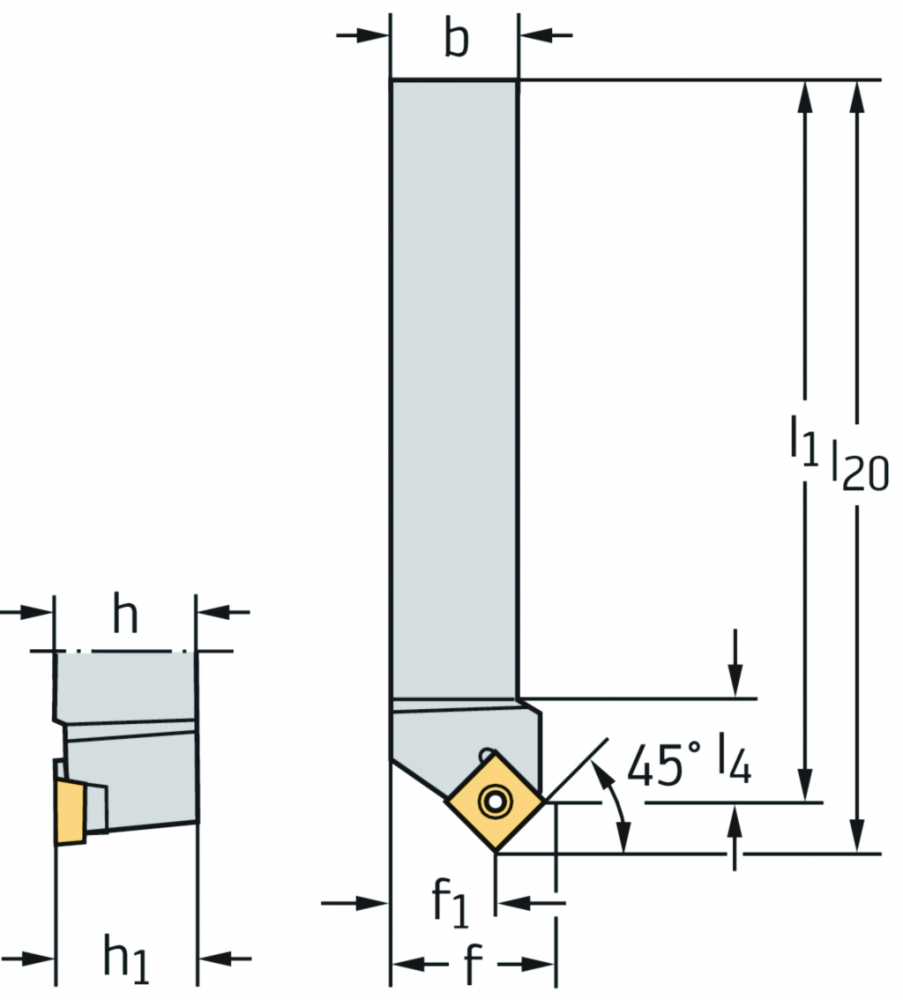

A1 Cutting edge length:

12,7 mm

A1_INCH Cutting edge length:

0,5 inch

A2 Functional width:

22 mm

A2_INCH Functional width:

0,866141732283465 inch

A3 Functional length:

125,02 mm

A3_INCH Functional length:

4,92204724409449 inch

A4 Functional height:

20 mm

A4_INCH Functional height:

0,78740157480315 inch

A52 A dimension on lf:

8,32 mm

A52_INCH A dimension on lf:

0,32755905511811 inch

ART_ID_TO type=consists_of:

5169053,5194530,5194534,5194541

ART_ID_TO type=others:

6342637, ;6462011, ;6462081, ;6485285, ;6485628, ;6651123, ;6651124, ;6651125, ;6651126, ;6651127, ;6651128, ;6651583, ;6651584, ;6651585, ;6733993, ;6733994, ;6836835, ;6839128, ;6839129, ;6839130, ;6839131, ;6839132, ;6844626, ;6917269, ;6917270, ;691730

b Shank width:

20 mm

B3 Protruding length:

125,02 mm

B3_INCH Protruding length:

4,92204724409449 inch

B5 Overall length:

125,02 mm

B5_INCH Overall length:

4,92204724409449 inch

BLD Tool style code:

BMC Body material code:

B_INCH Shank width:

0,78740157480315 inch

C11 Connection code type machine side:

VKT

C12 Connection code form at machine side:

C14 Connection code unit base machine side:

C15 Connection code style machine side:

C2 Connection size code machine side:

2020

C4 Shank height:

20 mm

C4_INCH Shank height:

0,78740157480315 inch

C5 Shank width:

20 mm

C5_INCH Shank width:

0,78740157480315 inch

CICT Cutting item count:

CNSC Coolant entry style code:

CONTENT_UNIT:

PCE

CUB Connection unit basis:

CUBPMS Connection unit base precision machine side:

CURRENCY:

USD

CXSC Coolant exit style code:

CZCMS Connection size code machine side:

2020

D7 Weight of item:

0,4 kg

D7_INCH Weight of item:

0,88184 lbs

Designation Tool designation:

SSDCR2020K12

E1 Tool cutting edge angle:

45 °

E2 Tool cutting edge angle type code:

E3 Insert included angle:

90 °

E4 Rake angle orthogonal:

0 °

E5 Inclination angle:

0 °

EAN:

0584157913

f Functional width:

13,7 mm

F1 Cutting direction:

F2 Tool holder shape code:

F5 Clamping type code:

FMTMS Form type machine side:

EXT

GAMO Rake angle orthogonal:

0 °

h = h1 Shank height:

20 mm

H Shank height:

20 mm

H21 Coolant entry style code:

H22 Coolant exit style code:

HAND Cutting direction:

HF Functional height:

20 mm

HF_INCH Functional height:

0,78740157480315 inch

H_INCH Shank height:

0,78740157480315 inch

Insert seat size Insert seat size:

J1 Standard:

J21 Article number:

SSDCR2020K12

J22 Product designation:

597

J3 Company code:

J41 Insert interface code:

ISO$SC1204003******

J42 Master insert identification:

SCMT 12 04 08

J6 Connection code machine side:

VKT01A2020$$$$

J7 Data chip provision:

J8 Machining operation:

DDA

KAP Kappa:

0 °

KAPR Tool cutting edge angle:

45 °

KEYWORD:

Tool Item|Turning|Walter Turn|Tool holders for turning|D10PS

l1 Functional length:

125 mm

l20 Overall length:

125 mm

l4 Projection length:

13,7 mm

LAMS Inclination angle:

0 °

LF Functional length:

125,02 mm

LFA A dimension on lf:

8,32 mm

LFA_INCH A dimension on lf:

0,32755905511811 inch

LF_INCH Functional length:

4,92204724409449 inch

LPR Protruding length:

125,02 mm

LPR_INCH Protruding length:

4,92204724409449 inch

MANUFACTURER_AID:

SSDCR2020K12

MIID Master insert identification:

SCMT 12 04 08

NOI Insert index count:

400

NO_CU_PER_OU:

NSM Standard number of properties layout:

DIN4000-90

OAL Overall length:

125,02 mm

OAL_INCH Overall length:

4,92204724409449 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

QUANTITY_INTERVAL:

QUANTITY_MIN:

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

Shank tool – Screw clamping SSDC • Walter Turn • metric • Square shank • κ=45° • Right

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21181001

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21181001

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21181001

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21181001

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21181001

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21181001

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21181001

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21181001

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21181001

REFERENCE_FEATURE_GROUP_ID_GTC:

TRNGEI

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

23153308

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

27112809

REFERENCE_FEATURE_GROUP_ID_Walter:

SSDCR-ISO-AUSSEN

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

SC Insert shape code:

SSC Insert seat size code:

SUPPLIER_AID:

5327624

SUPPLIER_ALT_AID:

5327624

TERRITORY:

TQ Torque:

3 Nm

TQ_INCH Torque:

26,5522374 lbf in

TSYCISO Tool style code:

SSDCR-ISO-AUSSEN

Type Possible indexable inserts:

SC .. 1204 ..

UDX.APPAREA:

Turning

UDX.BRAND:

Walter

UDX.CATFAM_CODE:

SSDC

UDX.CATFAM_DESCR:

Shank tool – Screw clamping

UDX.DESCR_APPLICATION:

First choice for low cutting pressures/small-diameter shafts

UDX.DESCR_BENEFITS:

Torx Plus screw clamping for transmitting higher tightening torques;The indexable insert and shim can be replaced using the same wrench;Fewer assembly parts are required

UDX.DESCR_TOOL:

For indexable inserts with positive basic shape;Walter Turn shank tool with screw clamping (S)

UDX.DISCOUNTGROUP:

060

UDX.ITEMTYPE:

Tool Item

UDX.NET_WEIGHT:

.8820

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

1.3780

UDX.PACKAGING_HEIGHT_UNIT:

UDX.PACKAGING_LENGTH:

5.1181

UDX.PACKAGING_LENGTH_UNIT:

UDX.PACKAGING_MATERIAL_WEIGHT:

.8820

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

9.7180

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

1.3780

UDX.PACKAGING_WIDTH_UNIT:

UDX.PRODUCTFAMILY:

D10PS

WF Functional width:

22 mm

WF_INCH Functional width:

0,866141732283465 inch

WT Weight of item:

0,4 kg

WT_INCH Weight of item:

0,88184 lbs

XYWD xyw plane distance:

-125,02 mm

XYWD_INCH xyw plane distance:

-4,92204724409449 inch

XZWD xzw plane distance:

20 mm

XZWD_INCH xzw plane distance:

0,78740157480315 inch

YZWD yzw plane distance:

-13,68 mm

YZWD_INCH yzw plane distance:

-0,538582677165354 inch

γ Orthogonal rake angle:

0 °

λs Inclination angle:

0 °

Manufactured By:

Walter Tool
