Part Number: 16324 / Vendor ID Number: 11735 / Custom:
Techniks 16324

Techniks 16324
by Techniks

Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview

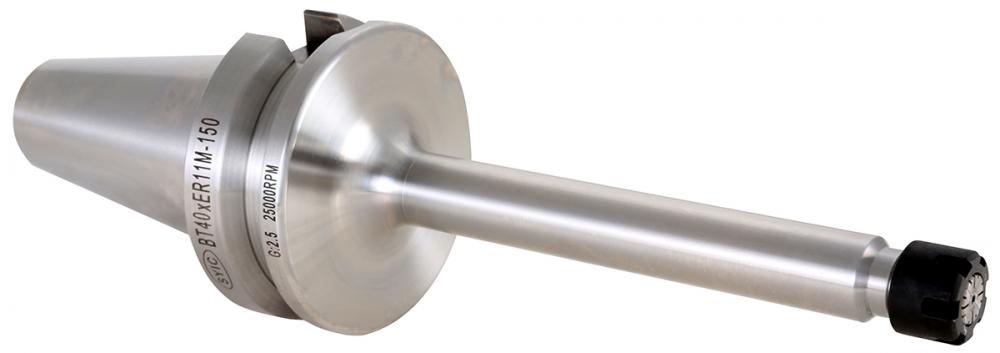

BT 40 x ER 11M - 150 with Mini Nut
BT40 Collet Chuck x ER11 - 150mm projection with mininut
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Shank Size:
Collet Series:
Additional options that would change other selections
Specific Products:
Additional Information
Mininut
Info & Guides
2D Drawing
3D File
Technical Details
Details
Category:
Tooling Systems
Subcategory:
Tool Holders
Subtype:
Collet Chucks
Balanced to:
25,000 RPM at G2.5
Body Diameter:
44.45
Capacity Range (in):
0.019" - 0.281"
Capacity Range - Metric:
0.5 - 7.1mm
Collet Series:
ER11
Country of Origin:
Taiwan
Family:
Collet Chucks
Material:
8620 Steel
Nose Diameter:
63mm
Overall Length:
215.4mm
Package Height:
8.5"
Package Length:
3.13"
Package Width:
2.75"
Projection Length:
150mm
Shank Size:
63mm
Taper:
BT40
Taper Length:
65.4mm
Unit of Tool:
Metric
UNSPSC Code:
27112807
Weight:
2.6
Manufactured By:
Techniks
