Product Overview

Square Shoulder Milling Insert

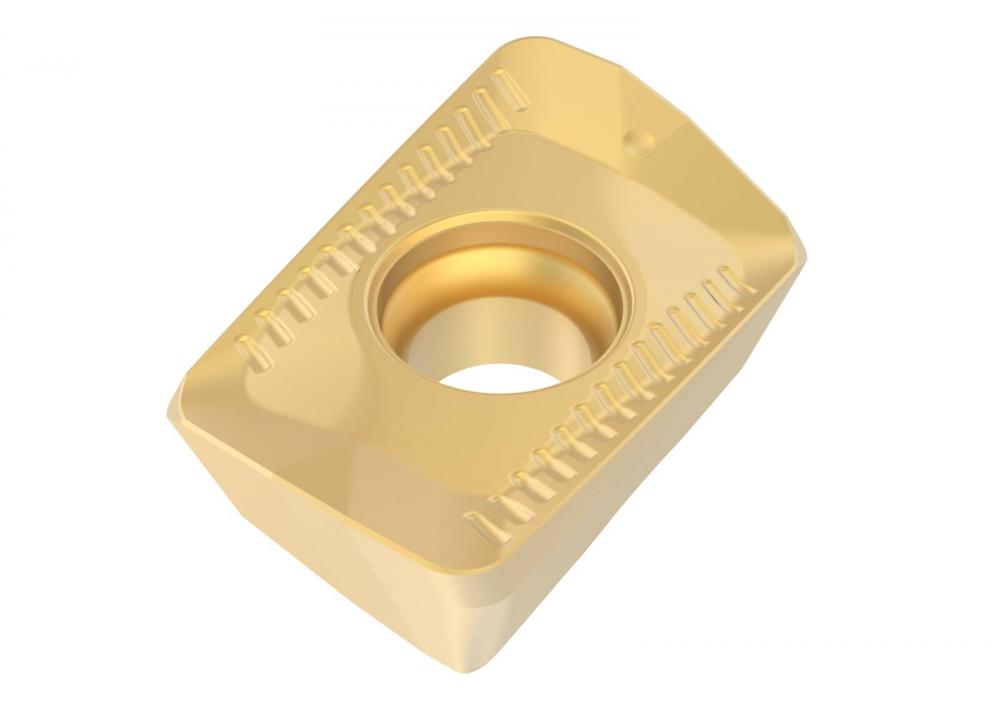

Seco XOMX10T304TR-ME07 Square Shoulder Milling Insert Turbo 10 - Insert Size 10

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Grade:

Rake Angle:

Additional options that would change other selections

Series:

Additional options that would change other selections

Specific Products:

Technical Details

Details

Category:

Milling

Subcategory:

Indexable

Subtype:

Milling Indexable Inserts

Grade:

MP3000

Insert Seat Size:

AN - Clearance Angle Major (Deg):

15.0

ANSI Code:

XOMX10T304TR-ME07

Applicable Material:

Optimized-Steels

Brand Name:

Seco

BS - Wiper Length (In):

0.051

BS - Wiper Length (mm):

1.3

CEDC - Cutting Edge Count:

CGT- Cutting Geometry Type:

Clearance Angle Major:

15 degrees

Coating/Finish:

Coated

Corner Radius (Decimal):

0.02

Corner Radius (Metric):

0.40

CUTINT_MASTER - Pocket Seat Code:

XO.X10T3

Cutting Edge Effective Length (Decimal):

0.37

Cutting Edge Effective Length (Metric):

9.30

Cutting Geometry Type:

ME07

D1 - Fixing Hole Dia. (In):

0.118

D1 - Fixing Hole Dia. (mm):

3.0

Direction of Hand:

Right

Fixing Hole Diameter (Decimal):

0.12

Fixing Hole Diameter (Metric):

GAN - Insert Rake Angle (Deg):

20.4

Grade Description:

Grade MP3000-coated carbide, wear resistant, optimized-steels

Gradetype:

Carbide PVD

IH - Insert Hand:

Right

Item Quantity:

Item Weight (lbs.):

0.005

LE - Cutting Edge Effective Length (In):

0.366

LE - Cutting Edge Effective Length (mm):

9.3

Material:

Carbide

Number of Cutting Edges:

Package Height (inches):

0.394

Package Length (inches):

3.543

Package Weight (lbs):

0.05

Package Width (inches):

1.496

Product Series:

XOMX

Rake Angle:

20.4 degrees

RE - Radius Value (In):

0.0157

RE - Radius Value (mm):

0.4

S - Insert Thickness (In):

0.151

S - Insert Thickness (mm):

3.83

Series:

Turbo 10

Shape:

Square Shoulder

Size:

Style:

XOMX10T3

Thickness:

3.83 mm

Thickness (Decimal):

0.15

Unit of Measure:

Metric

UPC Number:

68522027001005

W1 - Insert Width (In):

0.272

W1 - Insert Width (mm):

6.9

Weight:

0.005 LB

WEP - Wiper Edge:

Width:

6.90 mm

Width (Decimal):

0.27

Wiper Edge Length (Decimal):

0.05

Wiper Edge Length (Metric):

1.30

Manufactured By:

Seco Tools
