Part Number: 02955697 / Vendor ID Number: 11420 / Custom:

XOEX10T324R-M06
by Seco Tools

Add To Quote

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Overview

Square Shoulder Milling Insert

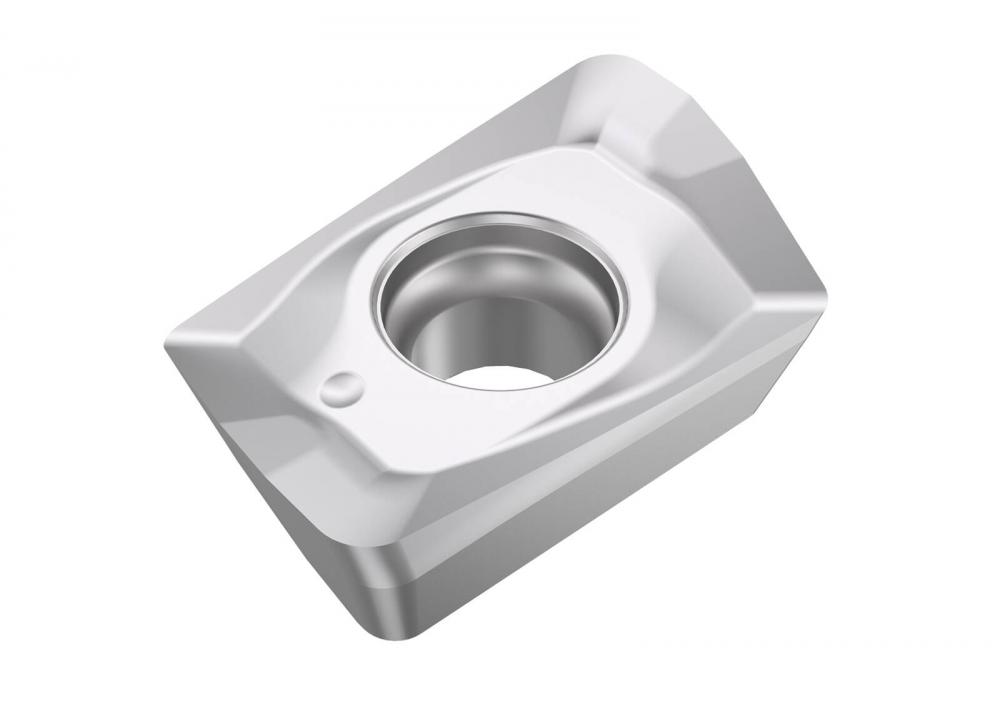

Seco XOEX10T324R-M06 Square Shoulder Milling Insert Turbo 10 - Insert Size 10

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Grade:

Rake Angle:

Additional options that would change other selections

Series:

Additional options that would change other selections

Info & Guides

DXF

STEP

Technical Details

Details

Category:

Milling

Subcategory:

Indexable

Subtype:

Milling Indexable Inserts

Grade:

MS2050

Insert Seat Size:

AN - Clearance Angle Major (Deg):

15.0

ANSI Code:

XOEX10T324R-M06

Applicable Material:

Optimized-Titanium Alloys

Brand Name:

Seco

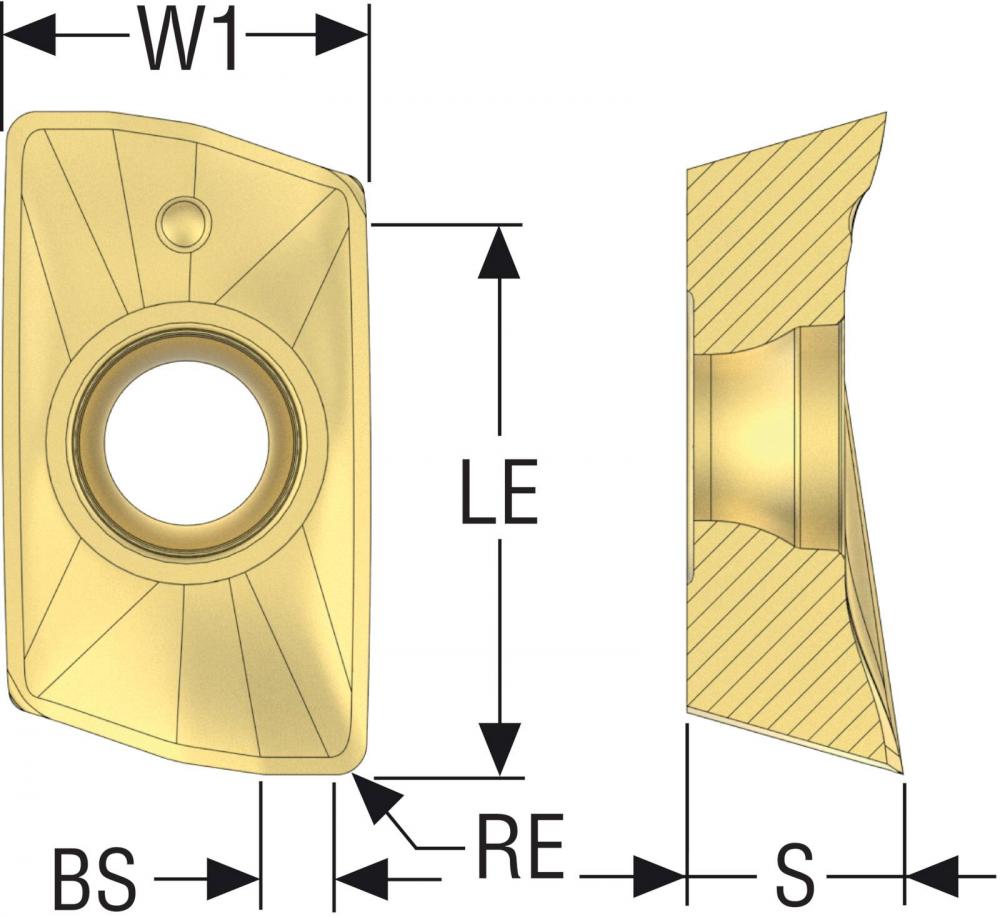

BS - Wiper Length (In):

0.008

BS - Wiper Length (mm):

0.2

CEDC - Cutting Edge Count:

CGT- Cutting Geometry Type:

Clearance Angle Major:

15 degrees

Coating/Finish:

Coated

Corner Radius (Decimal):

0.10

Corner Radius (Metric):

2.40

CUTINT_MASTER - Pocket Seat Code:

XO.X10T3

Cutting Edge Effective Length (Decimal):

0.38

Cutting Edge Effective Length (Metric):

9.70

Cutting Geometry Type:

M06

D1 - Fixing Hole Dia. (In):

0.118

D1 - Fixing Hole Dia. (mm):

3.0

Direction of Hand:

Right

Fixing Hole Diameter (Decimal):

0.12

Fixing Hole Diameter (Metric):

GAN - Insert Rake Angle (Deg):

18.3

Grade Description:

Grade MS2050-coated carbide, optimized-titanium alloys

Gradetype:

Carbide PVD

IH - Insert Hand:

Right

Item Quantity:

Item Weight (lbs.):

0.004

LE - Cutting Edge Effective Length (In):

0.382

LE - Cutting Edge Effective Length (mm):

9.7

Material:

Carbide

Number of Cutting Edges:

Package Height (inches):

0.394

Package Length (inches):

3.543

Package Weight (lbs):

0.04

Package Width (inches):

1.496

Product Series:

XOEX

Rake Angle:

18.3 degrees

RE - Radius Value (In):

0.0945

RE - Radius Value (mm):

2.4

S - Insert Thickness (In):

0.150

S - Insert Thickness (mm):

3.8

Series:

Seco Turbo 10

Shape:

Square Shoulder

Size:

Style:

XOEX10T3

Thickness:

3.80 mm

Thickness (Decimal):

0.15

Unit of Measure:

Metric

UPC Number:

55697029001004

W1 - Insert Width (In):

0.272

W1 - Insert Width (mm):

6.9

Weight:

0.004 LB

WEP - Wiper Edge:

Width:

6.90 mm

Width (Decimal):

0.27

Wiper Edge Length (Decimal):

0.01

Wiper Edge Length (Metric):

0.20

Manufactured By:

Seco Tools
