Product Overview

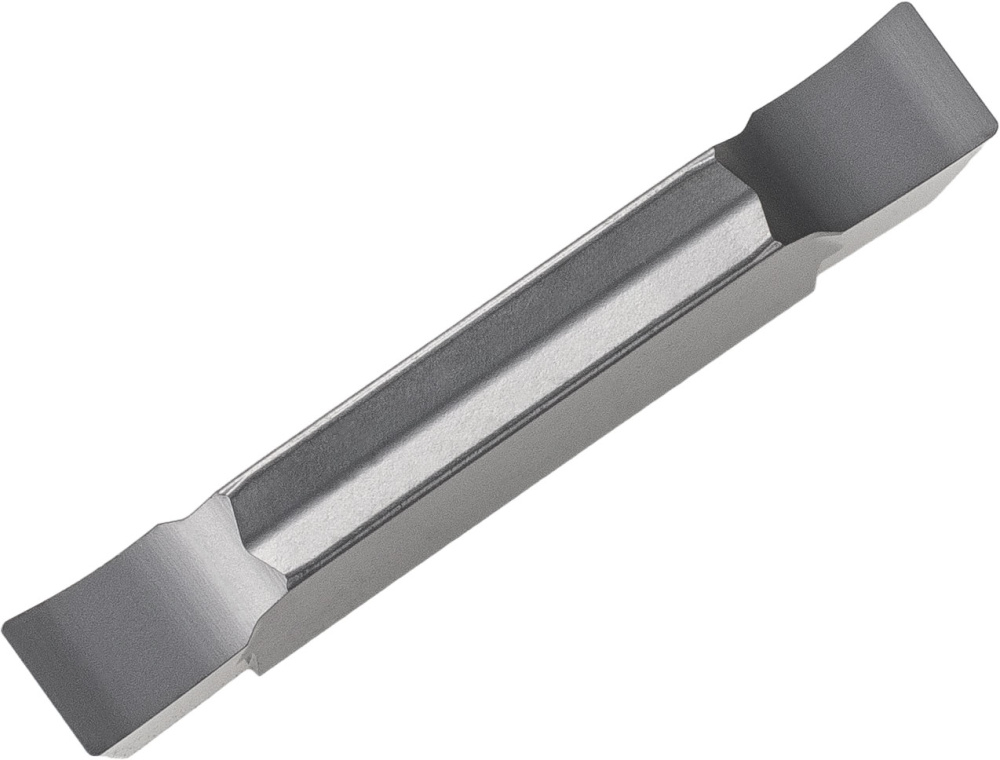

Kyocera GZG 3020N020GS PR2015 Grade PVD Carbide, Indexable Grooving Insert

Kyocera GZG 3020N020GS PR2015 Grade PVD Carbide, 3.00mm Groove Width, Neutral Grooving Insert for Continuous and Medium-Roughing in (P) Steel and (M) Stainless Steel

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Chipbreaker:

Material:

Additional options that would change other selections

Primary Workpiece Material:

Coating Process:

Additional options that would change other selections

Specific Products:

Info & Guides

SDS Cemented Carbide

Literature 1

Technical Details

Details

Category:

Grooving

Subcategory:

Indexable Cutting Tools

Subtype:

Grooving Inserts

ANSI Part Number:

GZG3020N020GSPR2015

Application:

External Grooving

California Prop 65 Item:

View

Chipbreaker:

Coating / Composition:

MEGACOAT NANO EX

Coating Process:

PVD

Compatible Toolholder (Partial):

Please Refer to Master Catalog or KGZ Brochure for Compatible Toolholders

Country of Origin:

US, JAPAN, CHINA, SOUTH KOREA, OTHER

Cutting Edge Style:

Low Cutting Force / 2-edge

Cutting Range:

Medium-Roughing

Cutting Width Tolerance (Decimal Inch):

+0.0008/-0.0008

Cutting Width Tolerance (mm):

+0.02/-0.02

Discount Category Description:

Carbide / Cermet

ECCN:

EAR99

Full Radius:

Hand:

Neutral

Harmonized Code:

8209.00.0030

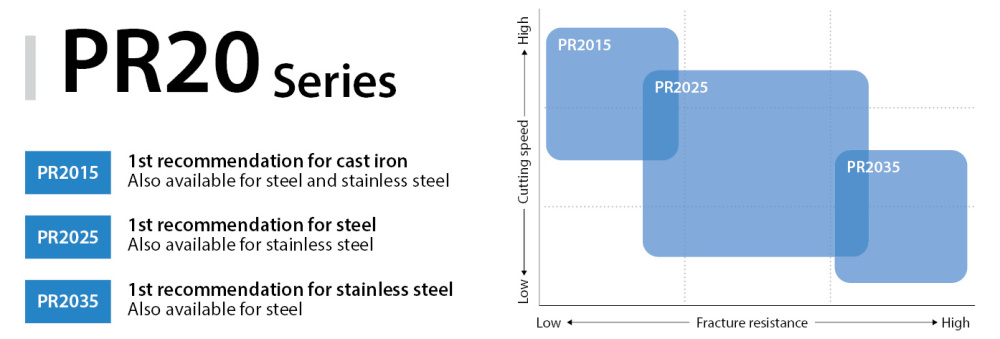

Insert Grade:

PR2015

Insert Holding Method:

Clamp

Insert Size:

3020

Insert Size (ISO):

ISO Part Number:

GZG3020N-020GS

Lead Time:

7 - 10

Material:

Carbide

Material Group / Grade:

PR2015

Min Order Qty:

Number of Cutting Edges:

Origin:

JPN

Pack Height:

0.394

Pack Length:

4.134

Pack Width:

1.772

Primary Workpiece Material:

(P) Steel

Rake:

Positive

Secondary Workpiece Material:

(M) Stainless Steel

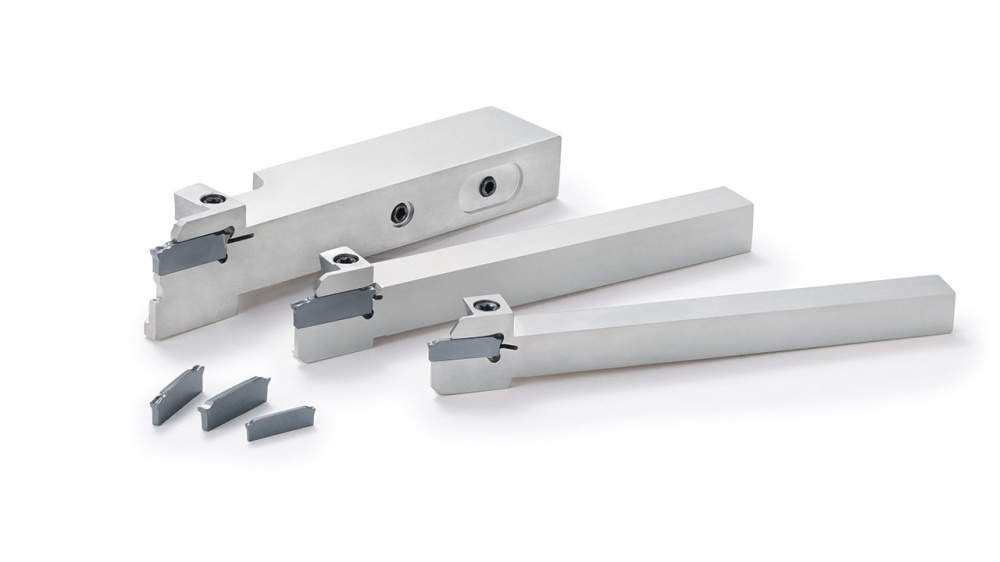

Series:

KGZ

Series Description:

KGZ Cut-Off

Shipping Weight:

0.0959

Tool Style:

GZG

Unit (inch/mm):

UNSPSC:

23242107

UNSPSC Title:

Insert Carbide

Usage Classification:

Continuous

[CWN] Cutting Width Minimum (Decimal Inch):

0.1181

[CWN] Cutting Width Minimum (mm):

3.00

[CWX] Cutting Width Maximum (Decimal Inch):

0.1181

[CWX] Cutting Width Maximum (mm):

3.00

[CW] Cutting Width (Decimal Inch):

0.1181

[CW] Cutting Width (mm):

3.00

[INSL] Insert Length (Decimal Inch):

0.7874

[INSL] Insert Length (mm):

20.00

[RE] Corner Radius:

0.008"

[RE] Corner Radius (mm):

0.20

[S] Thickness:

0.232"

[S] Thickness (mm):

5.90

Manufactured By:

KYOCERA Precision Tools
