Product Overview

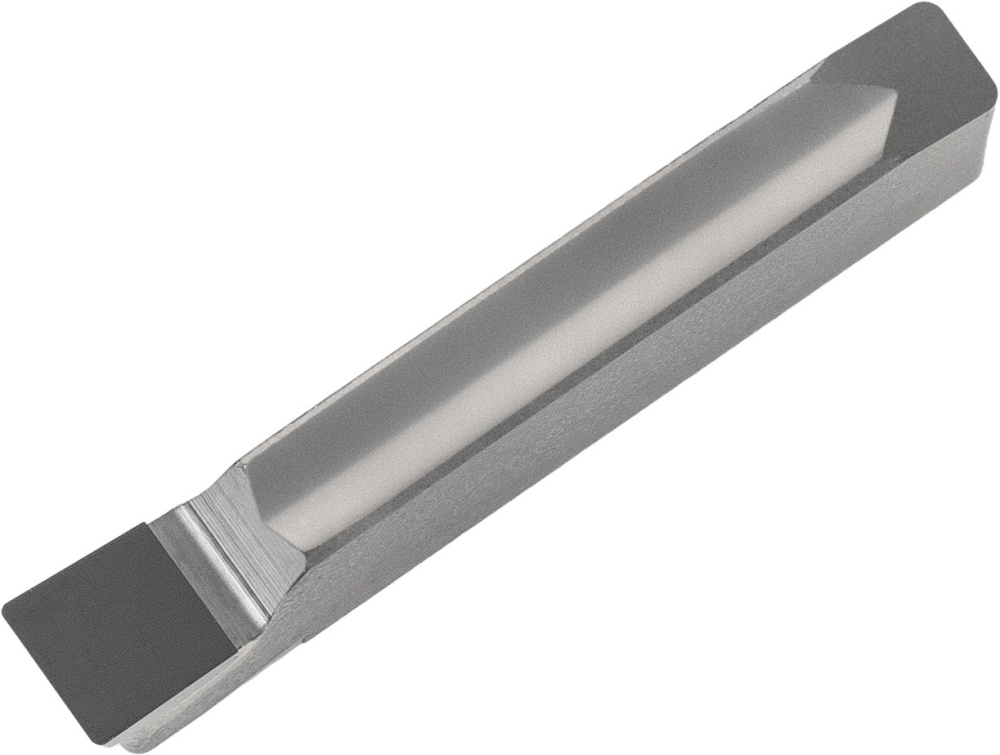

Kyocera GZGS 2020N020NB KPD001 Grade PCD, Indexable Grooving Insert

Kyocera GZGS 2020N020NB KPD001 Grade PCD, 2.00mm Groove Width, Neutral Grooving Insert for Continuous and Finishing in (N) Non-Ferrous Metals and (S) Heat-Resistant Alloy

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Chipbreaker:

Material:

Additional options that would change other selections

Primary Workpiece Material:

Additional options that would change other selections

Coating Process:

Additional options that would change other selections

Specific Products:

Info & Guides

SDS Diamond (PCD: Polycrystalline Diamond) Tools

Literature 1

Technical Details

Details

Category:

Grooving

Subcategory:

Indexable Cutting Tools

Subtype:

Grooving Inserts

ANSI Part Number:

GZGS2020N020NBKPD001

Application:

External Deep Grooving|External Grooving

California Prop 65 Item:

View

Chipbreaker:

Coating Process:

Uncoated

Compatible Toolholder (Partial):

Please Refer to Master Catalog or KGZ Brochure for Compatible Toolholders

Country of Origin:

US, JAPAN, CHINA, SOUTH KOREA, OTHER

Cutting Edge Style:

External Deep Grooving

Cutting Range:

Finishing

Cutting Width Tolerance (Decimal Inch):

+0.0012/-0.0012

Cutting Width Tolerance (mm):

+0.03/-0.03

Discount Category Description:

CBN / PCD

ECCN:

EAR99

Full Radius:

Hand:

Neutral

Harmonized Code:

8209.00.0030

Insert Grade:

KPD001

Insert Holding Method:

Clamp

Insert Size:

2020

Insert Size (ISO):

ISO Part Number:

GZGS2020N-020NB

Lead Time:

7 - 10

Material:

PCD

Material Group / Grade:

KPD001

Min Order Qty:

Number of Cutting Edges:

Origin:

JPN

Pack Height:

0.433

Pack Length:

2.362

Pack Width:

1.693

Primary Workpiece Material:

(N) Non-Ferrous Materials

Rake:

Positive

Secondary Workpiece Material:

(S) Heat-Resistant Alloy

Series:

KGZ

Series Description:

KGZ Cut-Off

Shipping Weight:

0.0423

Tool Style:

GZGS

Unit (inch/mm):

UNSPSC:

23242107

UNSPSC Title:

Insert Carbide

Usage Classification:

Continuous

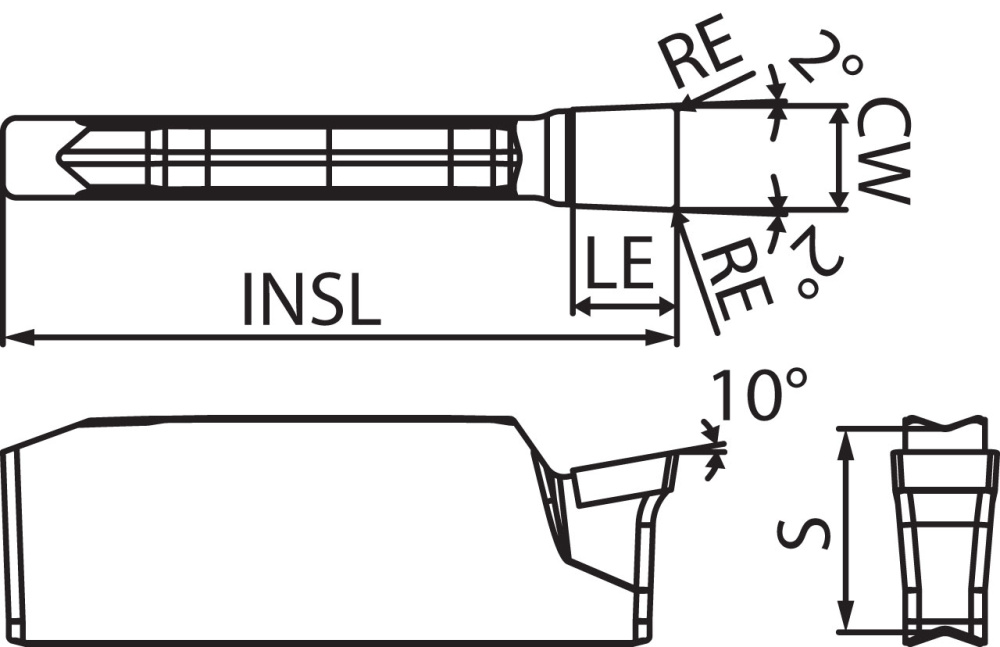

[CWN] Cutting Width Minimum (Decimal Inch):

0.0787

[CWN] Cutting Width Minimum (mm):

2.00

[CWX] Cutting Width Maximum (Decimal Inch):

0.0787

[CWX] Cutting Width Maximum (mm):

2.00

[CW] Cutting Width (Decimal Inch):

0.0787

[CW] Cutting Width (mm):

2.00

[INSL] Insert Length (Decimal Inch):

0.7874

[INSL] Insert Length (mm):

20.00

[LE] CBN/PCD Tip Length (Decimal Inch):

0.1142

[LE] CBN/PCD Tip Length (mm):

2.90

[RE] Corner Radius:

0.008"

[RE] Corner Radius (mm):

0.20

[S] Thickness:

0.232"

[S] Thickness (mm):

5.90

Manufactured By:

KYOCERA Precision Tools
