Product Overview

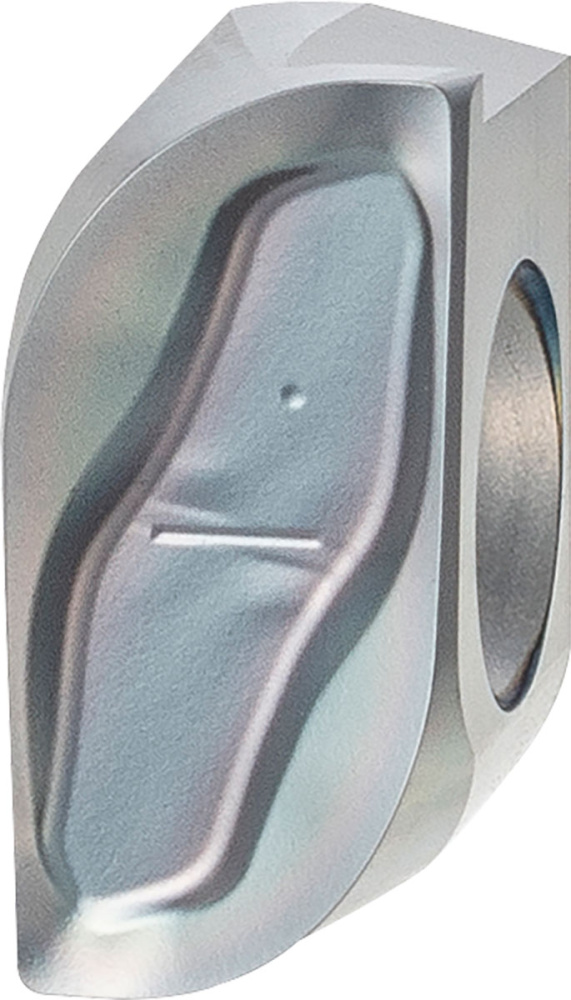

Kyocera LOGT 120650ERGM PR1810 Grade PVD Carbide, Indexable Milling Insert

Kyocera LOGT 120650ERGM PR1810 Grade PVD Carbide, 90 Degree Rectangle, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (K) Gray Cast Iron, (K) Nodular Cast Iron

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Chipbreaker:

Coating Process:

Number of Cutting Edges:

Specific Products:

Additional Information

First choice grade for cast iron milling applications

Honed Edge / General Purpose with 2 Cutting Edges

Longer tool life with next-generation MEGACOAT NANO EX coating technology designed for milling

MA90 Milling Insert for Contouring, Facing, Helical Milling, Plunging, Pocketing, Ramping, Shouldering, Slotting

Multi-layer structure with two unique nano layers for superior abrasion resistance and fracture resistance

Info & Guides

SDS Cemented Carbide

Literature 1

Technical Details

Details

Category:

Milling

Subcategory:

Indexable

Subtype:

Milling Indexable Inserts

ANSI Part Number:

LOGT120650ERGMPR1810

Application:

California Prop 65 Item:

View

Chipbreaker:

ER-GM

Coating / Composition:

MEGACOAT NANO EX

Coating Process:

PVD

Compatible Toolholder (Partial):

MA90…-12-…

Country of Origin:

US, JAPAN, CHINA, SOUTH KOREA, OTHER

Cutting Direction:

Right-Hand

Cutting Edge Style:

Honed Edge / General Purpose

Cutting Range:

Medium-Roughing

Discount Category Description:

Carbide / Cermet

ECCN:

EAR99

Hand:

Right-Hand

Harmonized Code:

8209.00.0030

Insert Grade:

PR1810

Insert Holding Method:

Screw

Insert Shape:

90 Degree Rectangle

Insert Size:

1206

Insert Size (ISO):

ISO Part Number:

LOGT120650ER-GM

Lead Time:

7 - 10

Material:

Carbide

Material Group / Grade:

PR1810

Min Order Qty:

Number of Cutting Edges:

Origin:

JPN

Pack Height:

0.591

Pack Length:

4.134

Pack Width:

1.772

Primary Workpiece Material:

(K) Gray Cast Iron|(K) Nodular Cast Iron

Rake:

Positive

Series:

MA90

Series Description:

MA90 Tangential Milling

Shipping Weight:

0.2242

Single or Double Sided Insert:

Single

Tool Style:

LOGT

UNSPSC:

23291601

UNSPSC Title:

Milling Insert

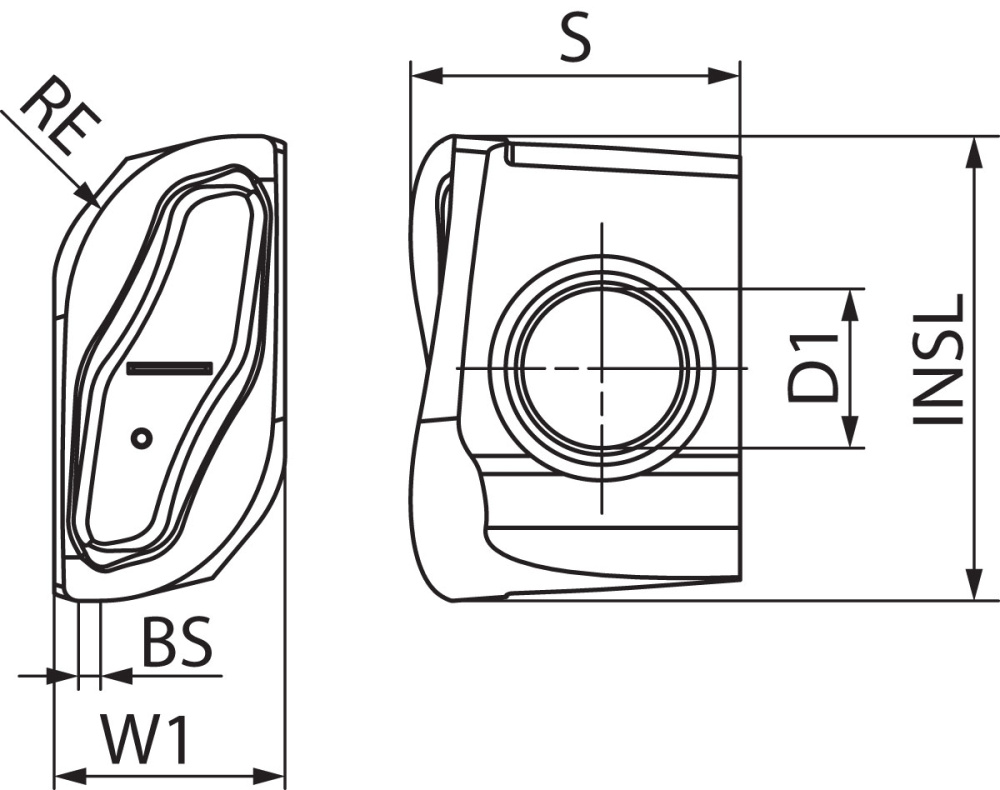

[BS] Wiper Edge Length (Decimal Inch):

0.0248

[BS] Wiper Edge Length (mm):

0.63

[D1] Hole Diameter (Decimal Inch):

0.1791

[D1] Hole Diameter (mm):

4.55

[EPSR] Insert Included Angle (Degree):

[INSL] Insert Length (Decimal Inch):

0.5228

[INSL] Insert Length (mm):

13.28

[RE] Corner Radius:

0.197"

[RE] Corner Radius (mm):

5.0

[S] Thickness:

0.370"

[S] Thickness (mm):

9.40

[W1] Insert Width (Decimal Inch):

0.2598

[W1] Insert Width (mm):

6.60

Manufactured By:

KYOCERA Precision Tools
