Item Sales Info

Part Number: TMA40036 / Vendor ID Number: 10831 / Custom:

KYOCERA Precision Tools TMA40036
by KYOCERA Precision Tools

Add To Quote

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Overview

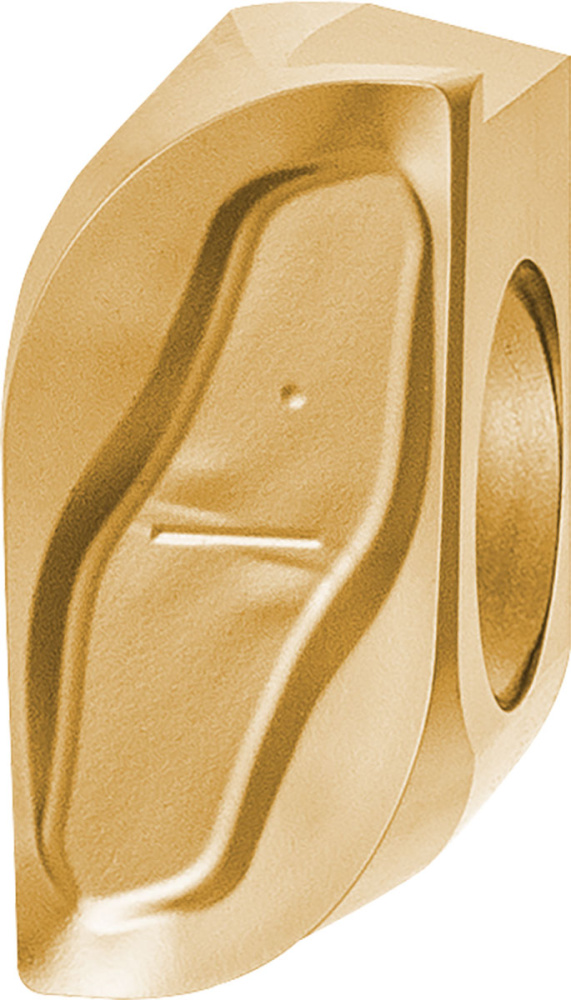

Kyocera LOGT 120660ERGM CA6535 Grade CVD Carbide, Indexable Milling Insert

Kyocera LOGT 120660ERGM CA6535 Grade CVD Carbide, 90 Degree Rectangle, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (M) Martensitic Stainless Steel, (S) Heat-Resistant Alloy

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Chipbreaker:

Coating Process:

Number of Cutting Edges:

Specific Products:

Additional Information

Application: CVD for Ni-base heat resistant alloy and martensitic stainless steel

High heat resistance and wear resistance with CVD coating with improved stability due to thin film coating

Honed Edge / General Purpose with 2 Cutting Edges

MA90 Milling Insert for Contouring, Facing, Helical Milling, Plunging, Pocketing, Ramping, Shouldering, Slotting

Info & Guides

SDS Cemented Carbide

Literature 1

Technical Details

Details

Category:

Milling

Subcategory:

Indexable

Subtype:

Milling Indexable Inserts

ANSI Part Number:

LOGT120660ERGMCA6535

Application:

California Prop 65 Item:

View

Chipbreaker:

ER-GM

Coating / Composition:

TiCN/Al2O3/TiN

Coating Process:

CVD

Compatible Toolholder (Partial):

MA90…-12-…

Country of Origin:

US, JAPAN, CHINA, SOUTH KOREA, OTHER

Cutting Direction:

Right-Hand

Cutting Edge Style:

Honed Edge / General Purpose

Cutting Range:

Medium-Roughing

Discount Category Description:

Carbide / Cermet

ECCN:

EAR99

Hand:

Right-Hand

Harmonized Code:

8209.00.0030

Insert Grade:

CA6535

Insert Holding Method:

Screw

Insert Shape:

90 Degree Rectangle

Insert Size:

1206

Insert Size (ISO):

ISO Part Number:

LOGT120660ER-GM

Lead Time:

7 - 10

Material:

Carbide

Material Group / Grade:

CA6535

Min Order Qty:

Number of Cutting Edges:

Origin:

JPN

Pack Height:

0.591

Pack Length:

4.134

Pack Width:

1.772

Primary Workpiece Material:

(M) Martensitic Stainless Steel|(S) Heat-Resistant Alloy

Rake:

Positive

Series:

MA90

Series Description:

MA90 Tangential Milling

Shipping Weight:

0.2159

Single or Double Sided Insert:

Single

Tool Style:

LOGT

UNSPSC:

23291601

UNSPSC Title:

Milling Insert

[BS] Wiper Edge Length (Decimal Inch):

0.0146

[BS] Wiper Edge Length (mm):

0.37

[D1] Hole Diameter (Decimal Inch):

0.1791

[D1] Hole Diameter (mm):

4.55

[EPSR] Insert Included Angle (Degree):

[INSL] Insert Length (Decimal Inch):

0.5228

[INSL] Insert Length (mm):

13.28

[RE] Corner Radius:

0.236"

[RE] Corner Radius (mm):

6.0

[S] Thickness:

0.364"

[S] Thickness (mm):

9.24

[W1] Insert Width (Decimal Inch):

0.2598

[W1] Insert Width (mm):

6.60

Manufactured By:

KYOCERA Precision Tools
