Product Overview

Kyocera SVJBR 102FFJCTM, Direct Coolant-Through Turning Toolholder

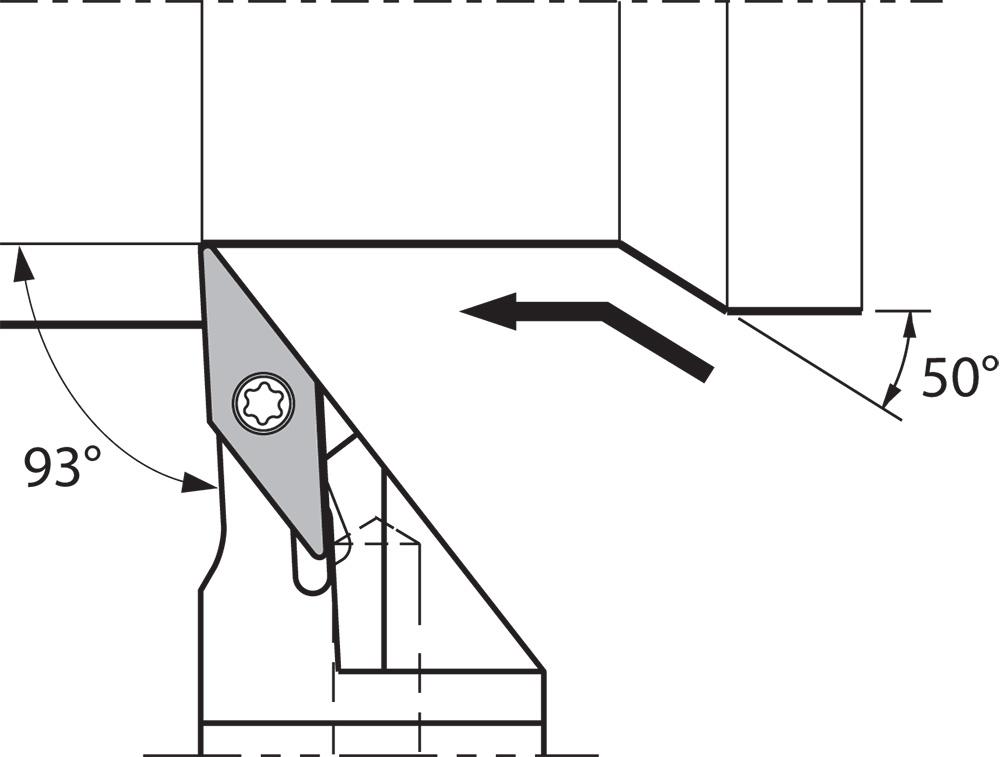

Kyocera SVJBR 102FFJCTM, Right-Hand, Positive Rake, 93 Degree Lead Angle, Direct Coolant-Through Turning Toolholder for Swiss, External Turning, Copying Applications

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Insert Shape:

Specific Products:

Additional Information

Application: Swiss, External Turning, Copying

Compatible with Right-Hand or Neutral VBMT22…, VBGT22…, VBET22…, VBGW22… Style Inserts

Direct Coolant-Through Holders for Small Parts Machining

Discharges Coolant Directly Toward the Rake Surface of Insert

Supports Internal Coolant with or without Piping Systems

Info & Guides

Literature 1

Technical Details

Details

Category:

Turning

Subcategory:

Indexable Cutting Tools

Subtype:

Turning Toolholders

ANSI Part Number:

SVJBR102FFJCTM

Application:

Copying|External Turning|Small Parts Machining

California Prop 65 Item:

View

Compatible Insert Hand:

Neutral or Right-Hand

Compatible Inserts (Partial):

VBMT22…, VBGT22…, VBET22…, VBGW22…

Coolant Pressure Resistance (psi):

2,900

Coolant Through (Yes/No):

Yes

Country of Origin:

US, JAPAN, CHINA, SOUTH KOREA, OTHER

Discount Category Description:

Steel / Hardware

ECCN:

EAR99

Hand:

Right-Hand

Harmonized Code:

8466.10.0130

Insert Holding Method:

Screw

Insert Shape:

35 Degree Diamond

Insert Size (ISO):

ISO Part Number:

SVJBR10-2FFJCTM

Lead Time:

Material:

Steel

Material Group / Grade:

GR99

Min Order Qty:

Multi-Use Tool (Yes/No):

Yes

Origin:

JPN

Pack Height:

1.535

Pack Length:

8.268

Pack Width:

1.535

Rake:

Positive

Series:

SSTJ

Series Description:

Swiss JCT Turning Holder

Shipping Weight:

0.8662

Tool Style:

SVJB-JCTM

Unit (inch/mm):

inch

UNSPSC:

23242106

UNSPSC Title:

Indexable Tool Bodies or Holders

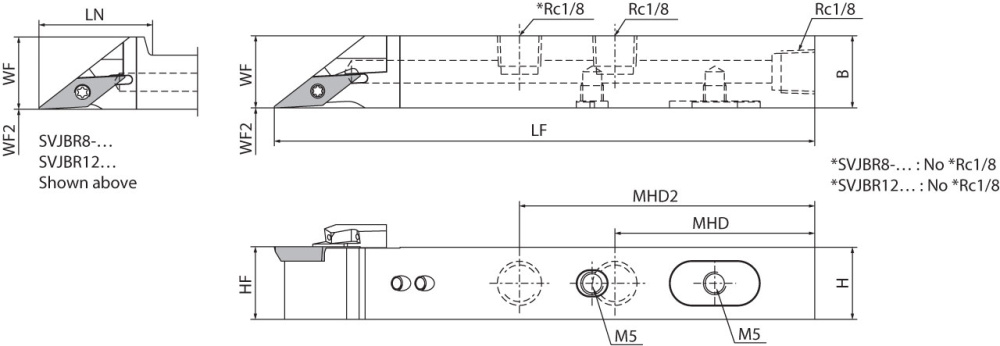

[B] Shank Width (Decimal Inch):

0.6250

[B] Shank Width (mm):

15.875

[GAMF] Rake Angle Radial (Degree):

[GAMO] Rake Angle Orthogonal (Degree):

[GAMP] Rake Angle Axial (Degree):

[G] Coolant Hole Thread Size:

Rc1/8

[G] Coolant Hole Thread Size 1:

Rc1/8

[G] Coolant Hole Thread Size 2:

Rc1/8

[HF] Cutting Edge Height (Decimal Inch):

0.6250

[HF] Cutting Edge Height (mm):

15.875

[H] Shank Height (Decimal Inch):

0.6250

[H] Shank Height (mm):

15.875

[IC] Insert Inscribed Circle (Decimal Inch):

0.2500

[IC] Insert Inscribed Circle (mm):

6.35

[KAPR] Tool Entering Angle (Degree):

[LAMS] Inclination Angle (Degree):

[LF] Functional Length (Decimal Inch):

4.7500

[LF] Functional Length (mm):

120.65

[MHD2] Mounting Hole Distance Secondary (Decimal I:

2.5591

[MHD2] Mounting Hole Distance Secondary (mm):

65.00

[MHD] Mounting Hole Distance (Decimal Inch):

1.7323

[MHD] Mounting Hole Distance (mm):

44.00

[RE] Standard Corner Radius (Decimal Inch):

0.0079

[RE] Standard Corner Radius (mm):

0.20

[S] Insert Thickness (Decimal Inch):

0.1252

[S] Insert Thickness (mm):

3.18

[WF2] Cutting Edge Distance Secondary (Decimal Inc:

0.0000

[WF2] Cutting Edge Distance Secondary (mm):

[WF] Cutting Edge Distance (Decimal Inch):

0.6250

[WF] Cutting Edge Distance (mm):

15.875

Manufactured By:

KYOCERA Precision Tools
