Part Number: THC14970 / Vendor ID Number: 10831 / Custom:
KYOCERA Precision Tools THC14970

KYOCERA Precision Tools THC14970
by KYOCERA Precision Tools

Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview
Kyocera SVJPR 2025JX11FFJCTM, Indexable Coolant-Through Turning Toolholder
Kyocera SVJPR 2025JX11FFJCTM, Right-Hand, Positive Rake, 93 Degree Lead Angle, Direct Coolant-Through Turning Toolholder for Swiss, External Turning, Copying Applications
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Insert Shape:
Specific Products:
Info & Guides
PDF
Technical Details
Details
Category:
Turning
Subcategory:
Indexable Cutting Tools
Subtype:
Turning Toolholders
Insert Holding Method:
Screw
Insert Shape:
35 Degree Diamond
Material:
Steel
Rake:
Positive
Additional Manufacturer Part Number:
8867215
ANSI Part Number:
SVJPR2025JX11FFJCTM
Application:
Copying|External Turning
California Prop 65 Item:
View
Coolant Pressure Resistance (psi):
2,900
Coolant Through (Yes/No):
Yes
Country of Origin:
US, JAPAN, CHINA, SOUTH KOREA, OTHER
Discount Category Description:
Steel / Hardware
ECCN:
EAR99
Feature 1:
Direct Coolant-Through Holders for Small Parts Machining
Feature 2:
Supports Internal Coolant with or without Piping Systems
Feature 3:
Discharges Coolant Directly Toward the Rake Surface of Insert
Feature 4:
Compatible with Right-Hand or Neutral VPGT22…, VPET22… Style Inserts
Hand:
Right-Hand
Harmonized Code:
8466.10.0130
ISO Part Number:
SVJPR2025JX-11FFJCTM
Material Group / Grade:
GR99
Min Order Qty:
1
Origin:
JPN
Pack Height:
1.535
Pack Length:
8.268
Pack Width:
1.535
Product URL:
https://app.catsy.com/app/share/739/o/collections/4004662142/digitalcatalog/item?sku=8867215
Series Description:
Swiss JCT Turning Holder
Series.1:
SSTJ
Shipping Weight:
0.8649
Tool Style:
SVJP-JCTM
Unit (inch/mm):
mm
UNSPSC:
23242106
UNSPSC Title:
Indexable Tool Bodies or Holders

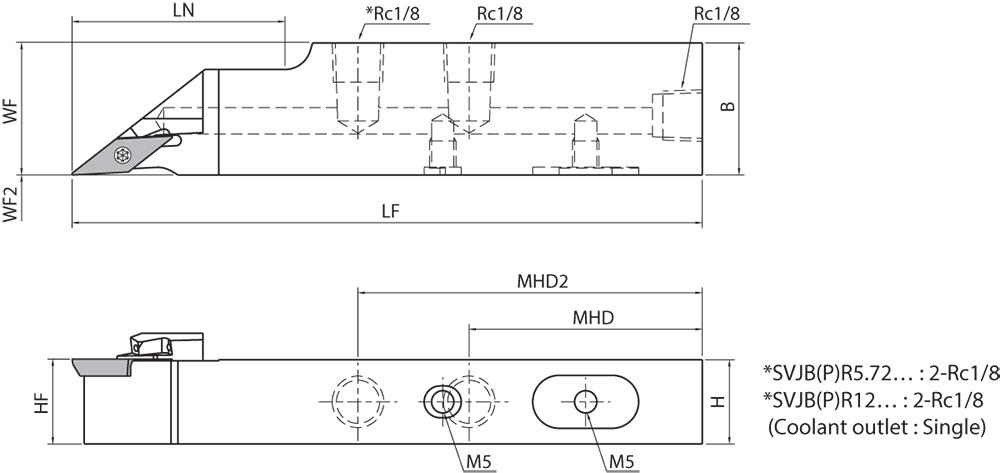

[B] Shank Width (Decimal Inch):
0.9843
[B] Shank Width (mm):
25.00
[H] Shank Height (Decimal Inch):
0.7874
[H] Shank Height (mm):
20.00
[KAPR] Tool Entering Angle (Degree):
93
Manufactured By:
KYOCERA Precision Tools
