Part Number: 7960227 / Vendor ID Number: 11770 / Custom:

Grooving module – Radial grooving
by Walter Tool

Add To Quote

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Overview

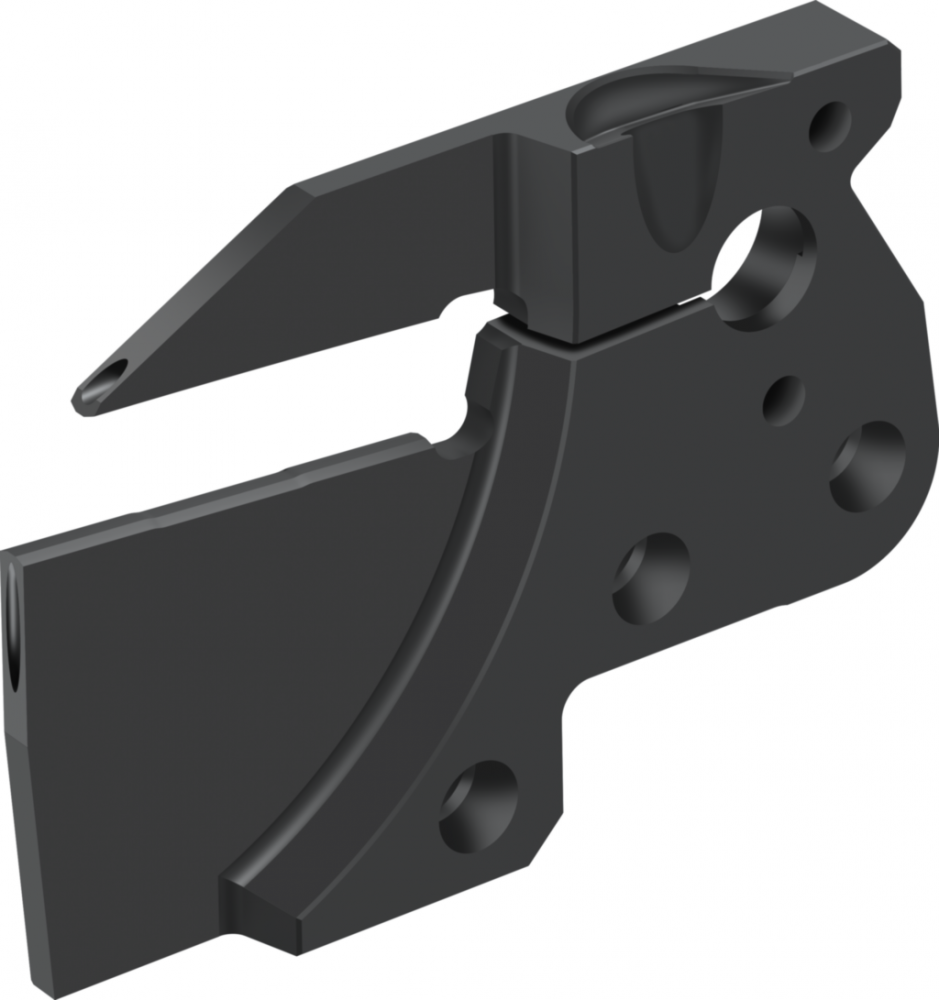

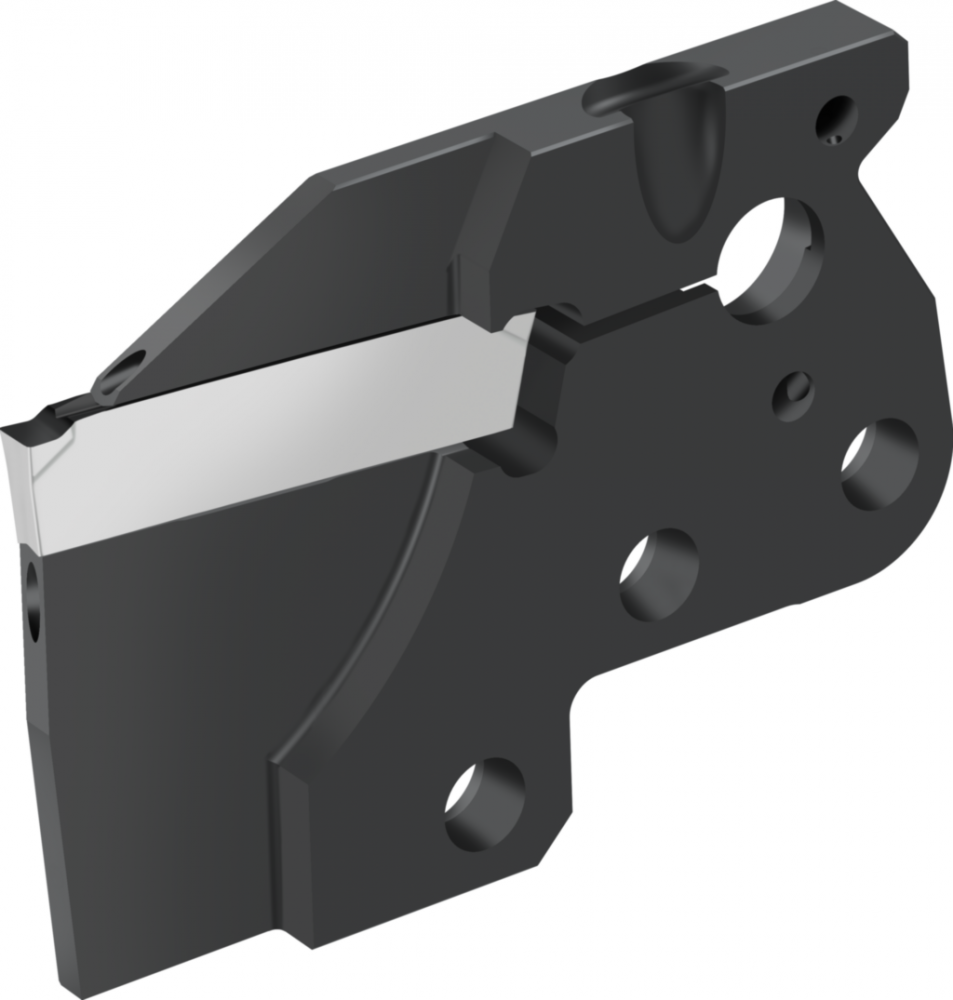

Grooving module – Radial grooving G1634-43L-4T33GX34-P

Grooving module – Radial grooving G1634-P • metric • Left • GX34 • Precision cooling

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Specific Products:

Additional Information

Replacement module

Replacement module|Screw clamping

Screw clamping

Info & Guides

Technical Details

Details

Category:

Cutting Tools

Subcategory:

Cut-Off

Subtype:

Indexable Cutting Tools

Category Level 4:

Cut-Off Blades

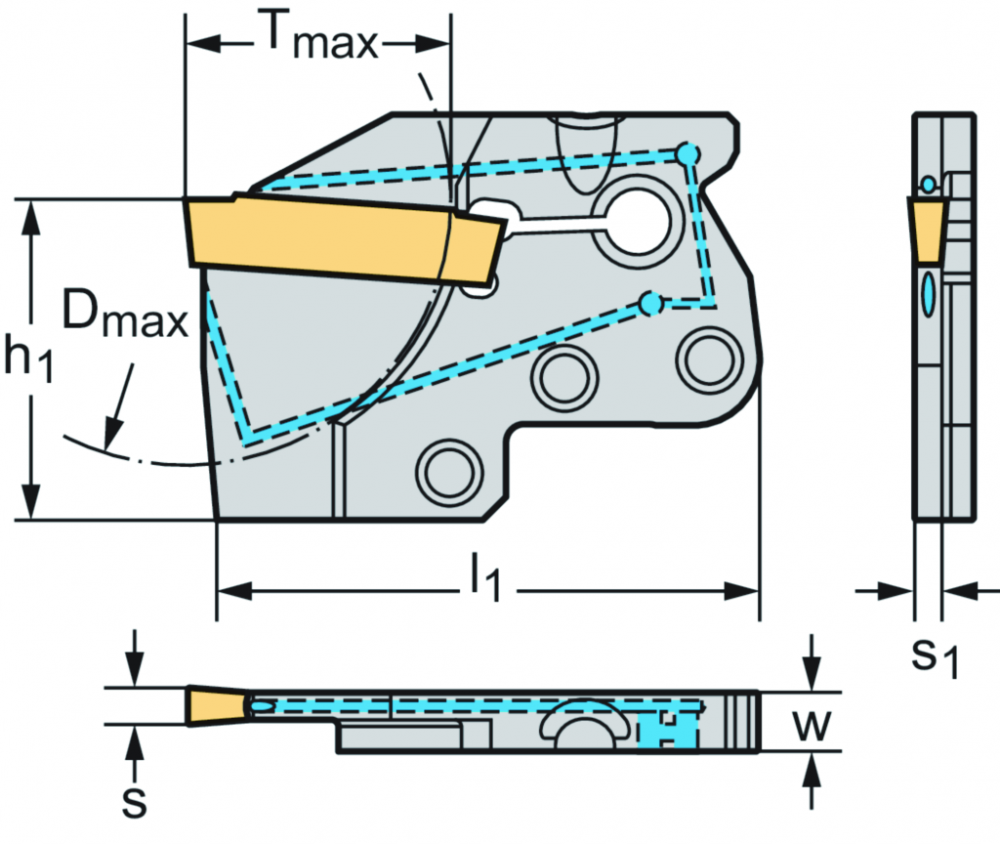

A18 Cutting width:

4 mm

A18_INCH Cutting width:

0,15748031496063 inch

A3 Functional length:

61 mm

A3_INCH Functional length:

2,40157480314961 inch

A4 Functional height:

24 mm

A4_INCH Functional height:

0,94488188976378 inch

A8 Cutting depth maximum:

33 mm

A8_INCH Cutting depth maximum:

1,2992125984252 inch

ART_ID_TO type=others:

7318905, ;7318908, ;7318910, ;7318911, ;8564834, ;8567940, ;8692017,

B5 Overall length:

61 mm

B5_INCH Overall length:

2,40157480314961 inch

BLD Tool style code:

C11 Connection code type machine side:

PMA

C12 Connection code form at machine side:

C14 Connection code unit base machine side:

C15 Connection code style machine side:

C2 Connection size code machine side:

043L

C31 ISO-tolerance class shank diameter:

$$$$

C4 Shank height:

43 mm

C4_INCH Shank height:

1,69291338582677 inch

C8 Shank width:

7,2 mm

C8_INCH Shank width:

0,283464566929134 inch

CONTENT_UNIT:

PCE

CURRENCY:

USD

D7 Weight of item:

0,04 kg

D7_INCH Weight of item:

0,088184 lbs

Dmax Maximum grooving diameter:

65 mm

Designation Tool designation:

G1634-43L-4T33GX34-P

E1 Tool cutting edge angle:

90 °

E4 Rake angle orthogonal:

0 °

E5 Inclination angle:

0 °

EAN:

0637766937

F1 Cutting direction:

F5 Clamping type code:

H4 Body material code:

h1 Center height:

24 mm

J1 Standard:

J21 Article number:

G1634-43L-4T33GX34-P

J22 Product designation:

7631

J3 Company code:

J41 Insert interface code:

WR$$GX343000***FX**

J6 Connection code machine side:

PMA24C043L$$00

J7 Data chip provision:

J8 Machining operation:

DEA

KEYWORD:

Tool Item|Parting/Grooving|Walter Cut|Cartridge, prismatic|ED300

l1 Overall length:

61 mm

MANUFACTURER_AID:

G1634-43L-4T33GX34-P

Module size Module size:

E43

NO_CU_PER_OU:

NSM Standard number of properties layout:

DIN4000-175

ORDER_UNIT:

PCE

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

QUANTITY_INTERVAL:

QUANTITY_MIN:

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

Grooving module – Radial grooving G1634-P • metric • Left • Precision cooling

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21181503

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21181503

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21181503

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21012001

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21012001

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21012001

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21181090

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21181090

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21181090

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21181503

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21181503

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21181503

REFERENCE_FEATURE_GROUP_ID_GTC:

BLTGTI

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

23231001

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

23242106

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

23171619

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

23171619

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

23171619

REFERENCE_FEATURE_GROUP_ID_Walter:

G1634-43L-GX34-P

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

s Indexable insert width:

s1 Body width:

3,3 mm

SUPPLIER_AID:

7960227

SUPPLIER_ALT_AID:

7960227

Tmax Maximum cutting depth:

33 mm

TERRITORY:

Type Possible indexable inserts:

GX34-3E4 ..

UDX.APPAREA:

Parting/Grooving

UDX.BRAND:

Walter

UDX.BULLETTEXT_1:

Replacement module

UDX.BULLETTEXT_2:

Screw clamping

UDX.CATFAM_CODE:

G1634-P

UDX.CATFAM_DESCR:

Grooving module – Radial grooving

UDX.DISCOUNTGROUP:

060

UDX.ITEMTYPE:

Tool Item

UDX.NET_WEIGHT:

.0882

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

.7874

UDX.PACKAGING_HEIGHT_UNIT:

UDX.PACKAGING_LENGTH:

4.6457

UDX.PACKAGING_LENGTH_UNIT:

UDX.PACKAGING_MATERIAL_WEIGHT:

.2139

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

10.0811

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

2.7559

UDX.PACKAGING_WIDTH_UNIT:

UDX.PRODUCTFAMILY:

ED300

W Shank width:

7,2 mm

WT Weight of item:

0,04 kg

WT_INCH Weight of item:

0,088184 lbs

Manufactured By:

Walter Tool
