Item Sales Info

Part Number: 6965019 / Vendor ID Number: 11770 / Custom:

Groove turning – Radial grooving
by Walter Tool

Add To Quote

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Overview

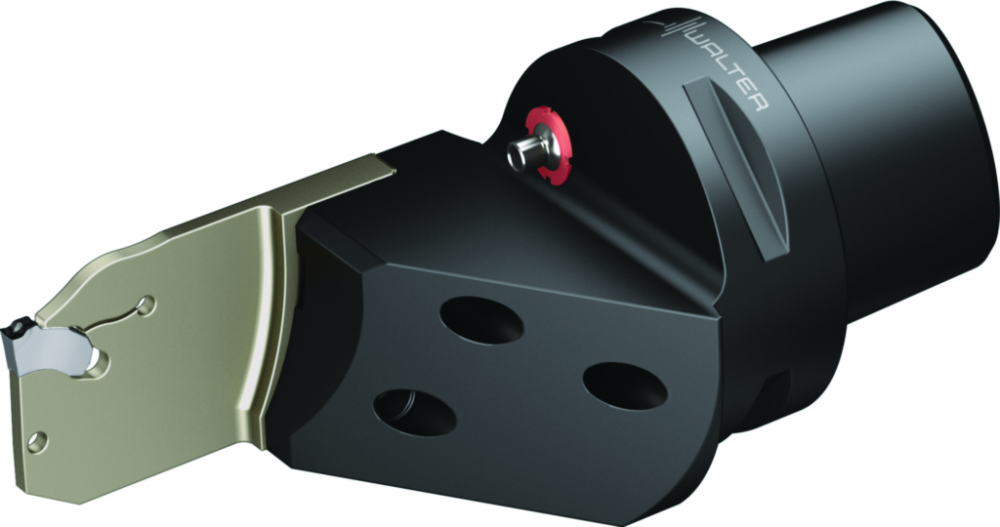

Groove turning – Radial grooving G2612-C6L-3T45SX

Groove turning – Radial grooving G2612-C... • Walter Capto^TM • Self-clamping system • metric • Walter Capto^TM ISO 26623 • Left • SX00 • s=0.1181in • Tmax=1.7717in

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Specific Products:

Additional Information

Self-clamping system

Self-clamping system|Walter Capto^TM

Walter Capto^TM

Info & Guides

Technical Details

Details

Category:

Cutting Tools

Subcategory:

Cut-Off

Subtype:

Indexable Cutting Tools

Category Level 4:

Cut-Off Toolholders

A1 Cutting edge length:

3 mm

A1_INCH Cutting edge length:

0,118110236220472 inch

A2 Functional width:

36,2 mm

A2_INCH Functional width:

1,4251968503937 inch

A3 Functional length:

101,5 mm

A3_INCH Functional length:

3,99606299212598 inch

A4 Functional height:

0 mm

A4_INCH Functional height:

0 inch

A72 Axial groove od max:

90 mm

A72_INCH Axial groove od max:

3,54330708661417 inch

A8 Cutting depth maximum:

45 mm

A8_INCH Cutting depth maximum:

1,77165354330709 inch

ART_ID_TO type=accessories:

5163278

ART_ID_TO type=consists_of:

6830513,5011674

ART_ID_TO type=others:

6393136, ;6422301, ;6422302, ;6427093, ;6572391, ;6572404, ;6572409, ;6572447, ;6572453, ;6572459, ;6572464, ;6572479, ;6737586, ;6769608, ;6913045, ;6913046, ;6913053, ;6938494, ;6938495, ;6913044, ;6646221, ;6646222, ;7169771, ;8485143, ;8492900, ;849290

B3 Protruding length:

139,5 mm

B3_INCH Protruding length:

5,49212598425197 inch

B5 Overall length:

139,5 mm

B5_INCH Overall length:

5,49212598425197 inch

BLD Tool style code:

BMC Body material code:

C11 Connection code type machine side:

CCS

C12 Connection code form at machine side:

C14 Connection code unit base machine side:

C15 Connection code style machine side:

C2 Connection size code machine side:

630

CCMS Connection code machine side:

CCS01C0630$$$$

CDX Cutting depth maximum:

45 mm

CDX_INCH Cutting depth maximum:

1,77165354330709 inch

CICT Cutting item count:

CNSC Coolant entry style code:

CONTENT_UNIT:

PCE

CP Coolant pressure:

80 MPa

CUB Connection unit basis:

CUBPMS Connection unit base precision machine side:

CURRENCY:

USD

CW Cutting edge length:

3 mm

CW_INCH Cutting edge length:

0,118110236220472 inch

CXSC Coolant exit style code:

CZCMS Connection size code machine side:

630

D7 Weight of item:

1,363 kg

D7_INCH Weight of item:

3,0048698 lbs

d1 Connection size code:

D2 Maximum parting diameter:

100 mm

Designation Tool designation:

G2612-C6L-3T45SX

E1 Tool cutting edge angle:

90 °

E2 Tool cutting edge angle type code:

E4 Rake angle orthogonal:

0 °

E5 Inclination angle:

0 °

EAN:

0826692967

F1 Cutting direction:

F2 Tool holder shape code:

F5 Clamping type code:

f1 Functional width:

36,2 mm

FMT Form type machine side:

EXT

GAMO Rake angle orthogonal:

0 °

H21 Coolant entry style code:

H22 Coolant exit style code:

HAND Cutting direction:

HF Functional height:

0 mm

HF_INCH Functional height:

0 inch

IIC Insert interface code:

WR$$SX003000*******

J1 Standard:

ISO26623-1

J21 Article number:

G2612-C6L-3T45SX

J3 Company code:

J41 Insert interface code:

WR$$SX003000*******

J42 Master insert identification:

SX-3

J6 Connection code machine side:

CCS01C0630$$$$

J7 Data chip provision:

J8 Machining operation:

DEA

KAP Kappa:

0 °

KAPR Tool cutting edge angle:

90 °

KEYWORD:

Tool Item|Parting/Grooving|Walter Cut|Tool heads for grooving, external|D65PK

l4 Maximum projection length:

102 mm

LAMS Inclination angle:

0 °

LF Functional length:

101,5 mm

LFCIRP Functional length to cutting item reference:

101,5

LF_INCH Functional length:

3,99606299212598 inch

LPR Protruding length:

139,5 mm

LPR_INCH Protruding length:

5,49212598425197 inch

MANUFACTURER_AID:

G2612-C6L-3T45SX

MIID Master insert identification:

SX-3

NOI Insert index count:

NO_CU_PER_OU:

NSM Standard number of properties layout:

DIN4000-90

OAL Overall length:

139,5 mm

OAL_INCH Overall length:

5,49212598425197 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

QUANTITY_INTERVAL:

QUANTITY_MIN:

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

Groove turning – Radial grooving G2612-C... • Walter Capto^TM • Self-clamping system • metric • Walter Capto^TM ISO 26623 • Left

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21181012

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21181012

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21181012

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21181012

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21181012

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21181012

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21181012

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21181012

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21181012

REFERENCE_FEATURE_GROUP_ID_GTC:

TRNPEI

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

23153308

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

27112809

REFERENCE_FEATURE_GROUP_ID_Walter:

G2612-CAPTO-L-SX

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

s Indexable insert width:

s1 Body width:

2,4 mm

SUPPLIER_AID:

6965019

SUPPLIER_ALT_AID:

6965019

Tmax Maximum cutting depth:

45 mm

TERRITORY:

TSYC Tool style code:

G2612-CAPTO-L-SX

Type Possible indexable inserts:

SX-3E3

UDX.APPAREA:

Parting/Grooving

UDX.BRAND:

Walter

UDX.BULLETTEXT_1:

Self-clamping system

UDX.BULLETTEXT_2:

Walter Capto^TM

UDX.CATFAM_CODE:

G2612-C...

UDX.CATFAM_DESCR:

Groove turning – Radial grooving

UDX.DISCOUNTGROUP:

065

UDX.ITEMTYPE:

Tool Item

UDX.NET_WEIGHT:

3.0054

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

3.0709

UDX.PACKAGING_HEIGHT_UNIT:

UDX.PACKAGING_LENGTH:

7.8740

UDX.PACKAGING_LENGTH_UNIT:

UDX.PACKAGING_MATERIAL_WEIGHT:

3.0054

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

74.2537

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

3.0709

UDX.PACKAGING_WIDTH_UNIT:

UDX.PRODUCTFAMILY:

D65PK

WF Functional width:

36,2 mm

WFCIRP Width to cutting item reference point:

36,2 mm

WFCIRP_INCH Width to cutting item reference point:

1,4251968503937 inch

WF_INCH Functional width:

1,4251968503937 inch

WT Weight of item:

1,363 kg

WT_INCH Weight of item:

3,0048698 lbs

XYWD xyw plane distance:

-101,5 mm

XYWD_INCH xyw plane distance:

-3,99606299212598 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

Manufactured By:

Walter Tool
