Item Sales Info

Part Number: 5009538 / Vendor ID Number: 11770 / Custom:

Boring bar – Modular
by Walter Tool

Add To Quote

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Overview

Boring bar – Modular MSS-I32L90-1,5D-N

Boring bar – Modular MSS...I...90-1.5 • Walter Cut • metric • Parallel shank • Left • 1.2598in

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Specific Products:

Additional Information

Screw clamping

Info & Guides

Technical Details

Details

Category:

Cutting Tools

Subcategory:

Cut-Off

Subtype:

Indexable Cutting Tools

Category Level 4:

Cut-Off Toolholders

ART_ID_TO type=consists_of:

5006506,5006725

ART_ID_TO type=others:

6381079;6381127;6381181;6852048;8698250;8698260;8698270;8698274;8698287;8698290;8698310;8698394;8698395;8698396;8698435;8698436;8698437;8698485;8698486;8698487;8698527;8698528;8698529;8698530;8698579;8698580;8698619;8698620;8698621;8698622

B1 Body length 1:

41,1 mm

B1_INCH Body length 1:

1,61811023622047 inch

B3 Protruding length:

58,6 mm

B3_INCH Protruding length:

2,30708661417323 inch

B4 Overall length:

118,6 mm

B4_INCH Overall length:

4,66929133858268 inch

B71 Functional length:

53,1 mm

B71_INCH Functional length:

2,09055118110236 inch

B72 Functional height:

0 mm

B72_INCH Functional height:

0 inch

B73 Functional width:

2 mm

B73_INCH Functional width:

0,078740157480315 inch

B92 Radial width:

35 mm

B92_INCH Radial width:

1,37795275590551 inch

C11 Connection code type machine side:

ZYL

C12 Connection code form at machine side:

C14 Connection code unit base machine side:

C15 Connection code style machine side:

C2 Connection size code machine side:

320

C3 Connection diameter machine side:

32 mm

C3_INCH Connection diameter machine side:

1,25984251968504 inch

C4 Shank length:

60 mm

C4_INCH Shank length:

2,36220472440945 inch

C51 Connection code type workpiece side:

PMA

C52 Connection code form at workpiece side:

C54 Connection code unit base workpiece side:

C55 Connection code style workpiece side:

C6 Connection size code workpiece side:

L032

CCMS Connection code machine side:

ZYL01G3200$$$$

CCWS Connection code workpiece side:

PMA05CL032****

CNSC Coolant entry style code:

CONTENT_UNIT:

PCE

CUB Connection unit basis:

CUBPMS Connection unit base precision machine side:

CUBPWS Connection unit base precision workpiece si:

CURRENCY:

USD

CXSC Coolant exit style code:

CZCMS Connection size code machine side:

320

CZCWS Connection size code workpiece side:

L032

D7 Weight of item:

0,746 kg

D7_INCH Weight of item:

1,6446316 lbs

d1 Connection diameter:

32 mm

Designation Tool designation:

MSS-I32L90-1,5D-N

E1 Cutting direction:

E2 Kappa:

0 °

EAN:

0574387936

FMT Form type workpiece side:

INT

H21 Coolant entry style code:

H22 Coolant exit style code:

HAND Cutting direction:

HF Functional height:

0 mm

HF_INCH Functional height:

0 inch

J1 Standard:

J21 Article number:

MSS-I32L90-1,5D-N

J3 Company code:

J4 Connection code workpiece side:

PMA05CL032****

J6 Connection code machine side:

ZYL01G3200$$$$

J7 Data chip provision:

KAP Kappa:

0 °

KEYWORD:

Tool Item|Parting/Grooving|Walter Cut|Basic Holders Ingersoll Tool connection - XXX|D55PK

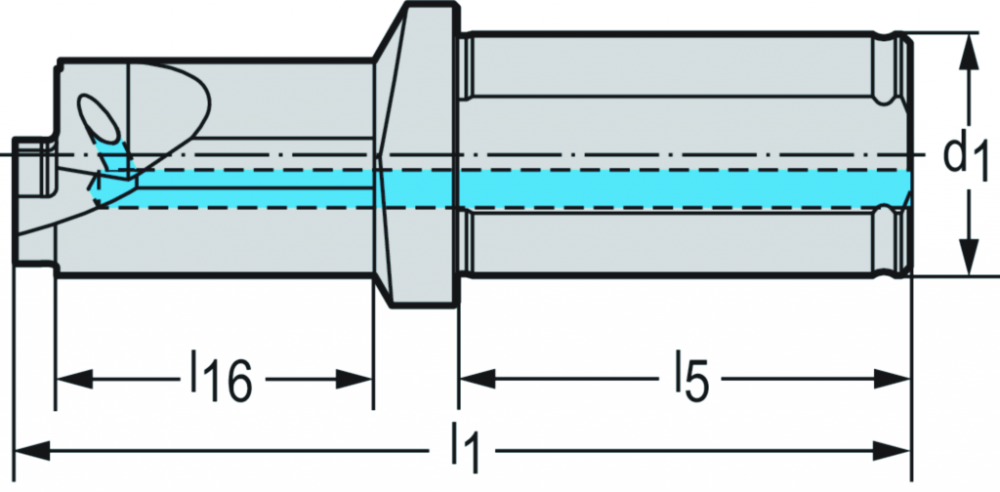

l16 Body length:

41,1 mm

l1 Overall length:

118,6 mm

l5 Shank length:

60 mm

LF Functional length:

53,1 mm

LF_INCH Functional length:

2,09055118110236 inch

LPR Protruding length:

58,6 mm

LPR_INCH Protruding length:

2,30708661417323 inch

LS Shank length:

60 mm

LS_INCH Shank length:

2,36220472440945 inch

MANUFACTURER_AID:

MSS-I32L90-1,5D-N

Module size Module size:

I32

NO_CU_PER_OU:

NSM Standard number of properties layout:

DIN4000-89

OAL Overall length:

118,6 mm

OAL_INCH Overall length:

4,66929133858268 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

QUANTITY_INTERVAL:

QUANTITY_MIN:

RADW Radial width:

35 mm

RADW_INCH Radial width:

1,37795275590551 inch

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

Boring bar – Modular MSS...I...90-1.5 • metric • Parallel shank

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21022001

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21022001

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21022001

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21022001

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21022001

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21022001

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21022001

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21022001

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21022001

REFERENCE_FEATURE_GROUP_ID_GTC:

ADPNR

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

27112807

REFERENCE_FEATURE_GROUP_ID_Walter:

MSS-INNEN-MOD-L-1,5D-90

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

SUPPLIER_AID:

5009538

SUPPLIER_ALT_AID:

5202090

TERRITORY:

TSYC Tool style code:

MSS-INNEN-MOD-L-1,5D-90

UDX.APPAREA:

Parting/Grooving

UDX.BRAND:

Walter

UDX.BULLETTEXT_1:

Screw clamping

UDX.CATFAM_CODE:

MSS...I...90-1.5

UDX.CATFAM_DESCR:

Boring bar – Modular

UDX.DISCOUNTGROUP:

060

UDX.ITEMTYPE:

Tool Item

UDX.NET_WEIGHT:

1.6449

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

1.9685

UDX.PACKAGING_HEIGHT_UNIT:

UDX.PACKAGING_LENGTH:

4.9213

UDX.PACKAGING_LENGTH_UNIT:

UDX.PACKAGING_MATERIAL_WEIGHT:

1.6449

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

19.0699

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

1.9685

UDX.PACKAGING_WIDTH_UNIT:

UDX.PRODUCTFAMILY:

D55PK

WF Functional width:

2 mm

WF_INCH Functional width:

0,078740157480315 inch

WT Weight of item:

0,746 kg

WT_INCH Weight of item:

1,6446316 lbs

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

Manufactured By:

Walter Tool

Boring bar – Modular by Walter Tool
