Product Overview

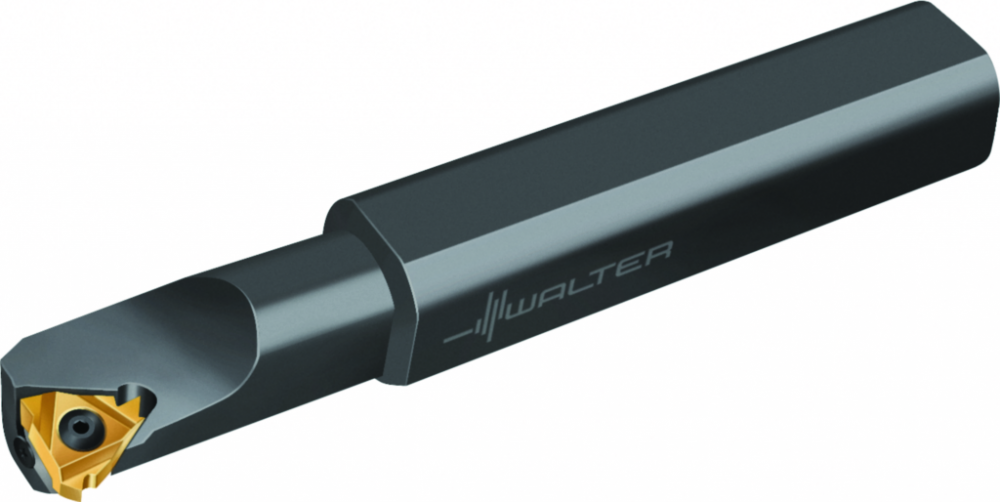

Boring bar – Internal thread S20S-NTSIR16-65

Boring bar – Internal thread S...-NTS-I • inch • Right

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Specific Products:

Info & Guides

MIMESOURCEDATASHEET

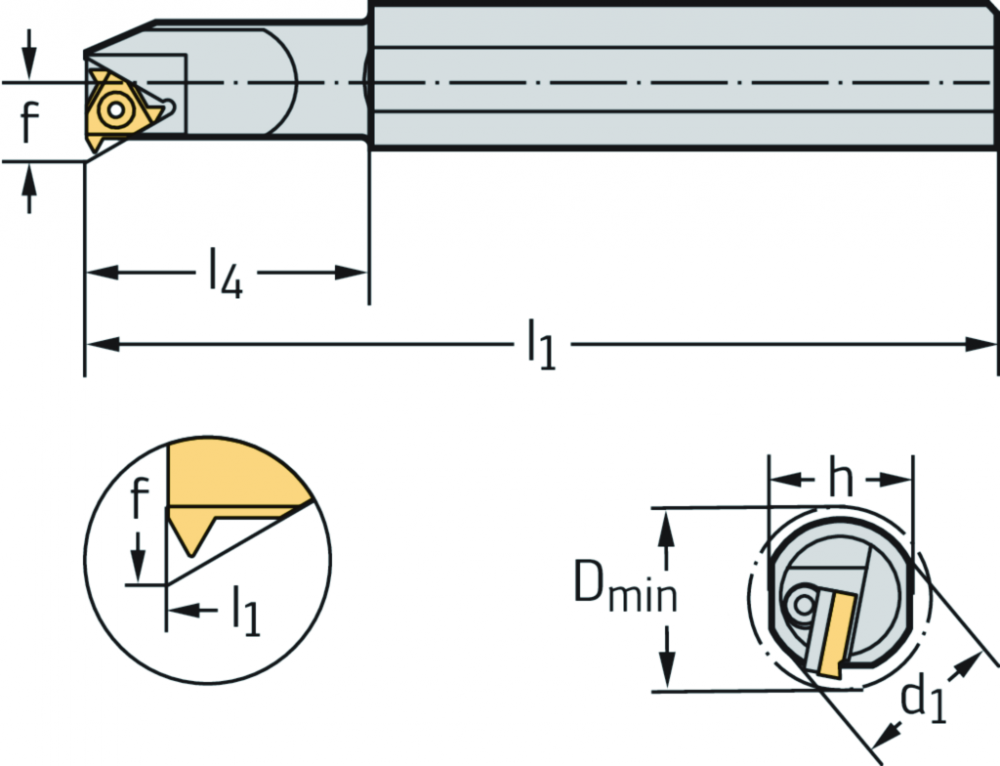

Technical Details

Details

Category:

Holemaking

Subcategory:

Boring

Subtype:

Boring Bars

A2 Functional width:

16,51 mm

A2_INCH Functional width:

0,65 inch

A3 Functional length:

254 mm

A3_INCH Functional length:

10 inch

A4 Functional height:

0 mm

A4_INCH Functional height:

0 inch

A6 Minimum bore diameter:

30,48 mm

A6_INCH Minimum bore diameter:

1,2 inch

ALP Clearance angle axial:

10 °

ART_ID_TO type=consists_of:

5006508,5010080,6039277,6050513

ART_ID_TO type=others:

5010085, ;5010089, ;5010093, ;5010097, ;5010101, ;5010105, ;5010109, ;5012772, ;5012773, ;5012778, ;5012784, ;5012790, ;5012791, ;5012796, ;5012797, ;5012802, ;5012803, ;5012808, ;5012809, ;5012814, ;5012815, ;5012820, ;5012821, ;5012826, ;5012827, ;501283

B3 Protruding length:

254 mm

B3_INCH Protruding length:

10 inch

B5 Overall length:

254 mm

B5_INCH Overall length:

10 inch

BLD Tool style code:

BMC Body material code:

C11 Connection code type machine side:

ZYL

C12 Connection code form at machine side:

C14 Connection code unit base machine side:

C15 Connection code style machine side:

C2 Connection size code machine side:

1250

C3 Connection diameter machine side:

31,75 mm

C3_INCH Connection diameter machine side:

1,25 inch

C4 Shank height:

28,448 mm

C4_INCH Shank height:

1,12 inch

CCMS Connection code machine side:

ZYL22S1250$$$$

CICT Cutting item count:

CNSC Coolant entry style code:

CONTENT_UNIT:

PCE

CUB Connection unit basis:

CUBPMS Connection unit base precision machine side:

CURRENCY:

USD

CXSC Coolant exit style code:

CZCMS Connection size code machine side:

1250

D7 Weight of item:

1,383 kg

D7_INCH Weight of item:

3,0489618 lbs

d1 Shank diameter:

1,25 inch

Dmin Minimum diameter:

1,2 inch

Designation Tool designation:

S20S-NTSIR16-65

DHD Drop head design:

DMIN Minimum bore diameter:

30,48 mm

DMIN_INCH Minimum bore diameter:

1,2 inch

E1 Tool cutting edge angle:

90 °

E2 Tool cutting edge angle type code:

EAN:

0474412966

f Functional width:

0,65 inch

F1 Cutting direction:

F2 Tool holder shape code:

F3 Drop head design:

F5 Clamping type code:

FMT Form type machine side:

EXT

h Shank height:

1,12 inch

H Shank height:

28,448 mm

H21 Coolant entry style code:

H22 Coolant exit style code:

HAND Cutting direction:

HF Functional height:

0 mm

HF_INCH Functional height:

0 inch

H_INCH Shank height:

1,12 inch

IIC Insert interface code:

WR$$NTSI16**3R*****

Insert size Insert size:

J1 Standard:

J21 Article number:

S20S-NTSIR16-65

J3 Company code:

J41 Insert interface code:

WR$$NTSI16**3R*****

J42 Master insert identification:

NTS-I-16

J6 Connection code machine side:

ZYL22S1250$$$$

J7 Data chip provision:

J8 Machining operation:

DGI

KAP Kappa:

0 °

KEYWORD:

Tool Item|Threading|Walter NTS|Tool holders for threading, internal|D72NS

l1 Functional length:

10 inch

l4 Projection length:

2,5 inch

LF Functional length:

254 mm

LF_INCH Functional length:

10 inch

LPR Protruding length:

254 mm

LPR_INCH Protruding length:

10 inch

LU Usable length:

63,5 mm

LU_INCH Usable length:

2,5 inch

MANUFACTURER_AID:

S20S-NTSIR16-65

MIID Master insert identification:

NTS-I-16

NOI Insert index count:

400

NO_CU_PER_OU:

NSM Standard number of properties layout:

DIN4000-90

OAL Overall length:

254 mm

OAL_INCH Overall length:

10 inch

ORDER_UNIT:

PCE

PHI Phi:

-90 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

QUANTITY_INTERVAL:

QUANTITY_MIN:

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

Boring bar – Internal thread S...-NTS-I • inch

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21181003

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21181003

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21181003

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21181003

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21181003

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21181003

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21181003

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21181003

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21181003

REFERENCE_FEATURE_GROUP_ID_GTC:

TRNTHII

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

23153308

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

27112809

REFERENCE_FEATURE_GROUP_ID_Walter:

S-NTS-I-16-INCH

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

1,5 °

SC Insert shape code:

SSC Insert seat size code:

SUPPLIER_AID:

5029293

SUPPLIER_ALT_AID:

5029293

TERRITORY:

THDH Thread hand:

TSYC Tool style code:

S-NTS-I-16-INCH

Type Possible indexable inserts:

NTS-I . -16 ..

UDX.APPAREA:

Threading

UDX.BRAND:

Walter

UDX.CATFAM_CODE:

S...-NTS-I

UDX.CATFAM_DESCR:

Boring bar – Internal thread

UDX.DESCR_APPLICATION:

Internal thread

UDX.DESCR_BENEFITS:

Excellent thread quality thanks to precision-ground indexable insert

UDX.DESCR_TOOL:

S . . . -NTS-I internal thread boring bar

UDX.DISCOUNTGROUP:

060

UDX.ITEMTYPE:

Tool Item

UDX.NET_WEIGHT:

3.0495

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

1.9685

UDX.PACKAGING_HEIGHT_UNIT:

UDX.PACKAGING_LENGTH:

10.4331

UDX.PACKAGING_LENGTH_UNIT:

UDX.PACKAGING_MATERIAL_WEIGHT:

3.0495

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

40.4282

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

1.9685

UDX.PACKAGING_WIDTH_UNIT:

UDX.PRODUCTFAMILY:

D72NS

WF Functional width:

16,51 mm

WF_INCH Functional width:

0,65 inch

WT Weight of item:

1,383 kg

WT_INCH Weight of item:

3,0489618 lbs

XYWD xyw plane distance:

-254 mm

XYWD_INCH xyw plane distance:

-10 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

-16,51 mm

YZWD_INCH yzw plane distance:

-0,65 inch

β Beta:

1,5 °

Manufactured By:

Walter Tool

Boring bar – Internal thread by Walter Tool
