Part Number: 16000-2520 / Vendor ID Number: 11735 / Custom:
Techniks 16000-2520

Techniks 16000-2520
by Techniks

Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview

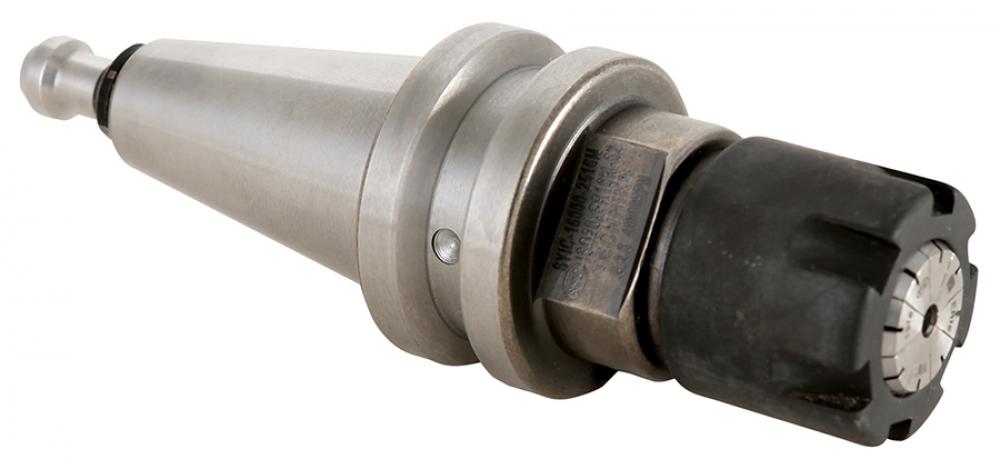

ISO 20 x ER20 - 52 with high speed
ISO20 Collet Chuck x ER20 - 40.5mm projection with highspeed nut
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Shank Size:
Collet Series:
Additional options that would change other selections
Additional Information
Highspeed nut
Info & Guides
2D Drawing
3D File
Technical Details
Details
Category:
Tooling Systems
Subcategory:
Tool Holders
Subtype:
Collet Chucks
Body Diameter:
30mm
Capacity Range (in):
0.019" - 0.551"
Capacity Range - Metric:
0.5 - 14mm
Collet Series:
ER20
Country of Origin:
Taiwan
Family:
Collet Chucks
Flats:
17mm
Nose Diameter:
35mm
Overall Length:
73.9mm
Projection Length:
40.5mm
Shank Size:
30mm
Taper:
ISO20
Taper Length:
33.4mm
Thread:
M25x1.5
Unit of Tool:
Metric
UNSPSC Code:
27112807
Weight:
1
Wrench:
04614
Manufactured By:
Techniks
