Product Overview

Grooving and Parting-off Holder

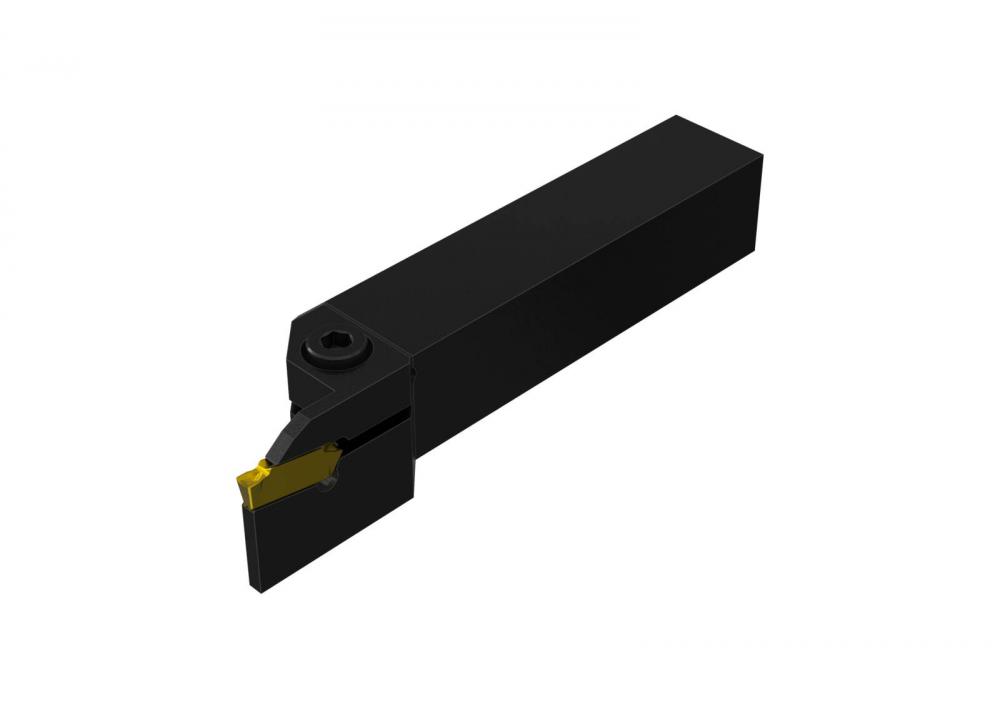

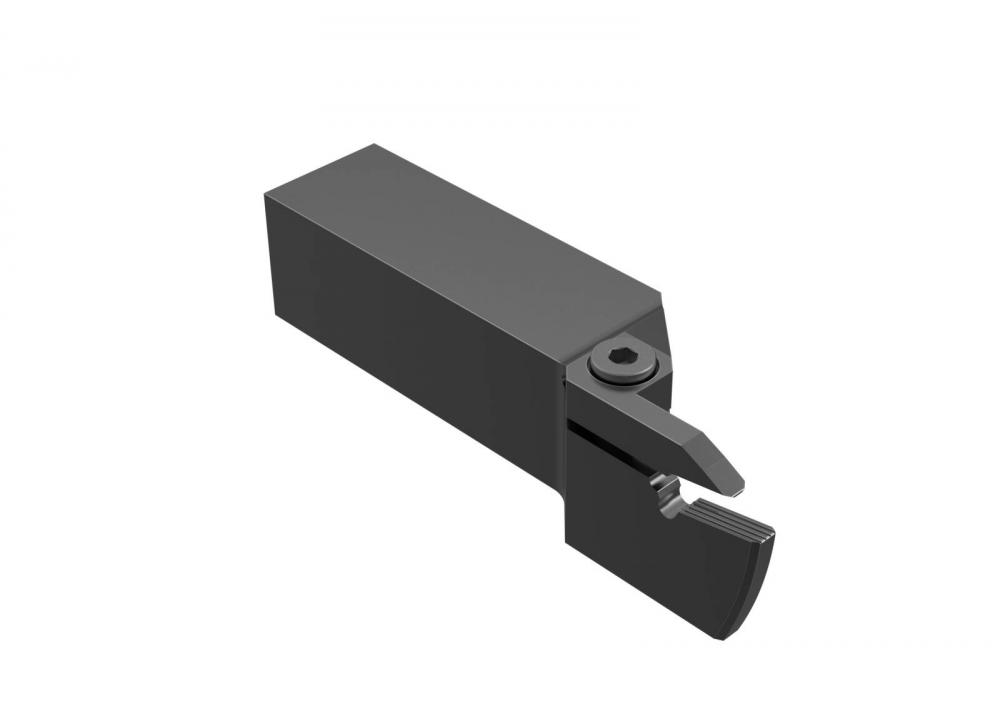

Seco CFML15008E Grooving and Parting-off Holder MDT Ext. LC..3008.. Left Hand Holder

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Specific Products:

Info & Guides

DXF

STEP

Technical Details

Details

Category:

Turning

Subcategory:

Groove and Turn and Parting Off

Subtype:

Groove and Turn Indexable Holders

B - Shank Width (In):

1.500

Brand Name:

Seco

CDX - Cutting Depth Max (In):

1.575

CSP - Coolant Supply:

CTMS - Connection Machine Side:

38.1

CTWS - Connection Text Workpiece Side:

LC..3008..

CW - Cutting Width (In):

0.315

DCINN3 - Cut Dia. Internal Min3 (In):

7.677

H - Height Tool Holder Shank (In):

1.500

HAND - Cutting Direction:

Left

Item Quantity:

Item Weight (lbs.):

3.594

KAPR - Cutting Edge Angle (Deg):

90.0

KAPRE - Cutting Edge Angle Feed Direction (Deg):

90.0

KAPRS - Cutting Edge Angle Feed Direction (Deg):

90.0

LF - Functional Length (In):

7.000

LH - Head Length (In):

2.795

Package Height (inches):

2.835

Package Length (inches):

8.071

Package Weight (lbs):

3.594

Package Width (inches):

2.835

Product Series:

CFML

ShankType:

Square shank

TQ - Torque (in/lbs):

132.8

UPC Number:

59814000000108

VER - Version (Int/Ext/Both):

External

WF - Functional Width (In):

2.000
