Allied Tools, Inc: 3929 Produce Road, Louisville, KY 40218
Part Number: 34435712 / Vendor ID Number: 11583 / Custom:
28CON 230x7x22,23 ZA24R-BFX

28CON 230x7x22,23 ZA24R-BFX
by Radiac Abrasives

Qty
Product Overview

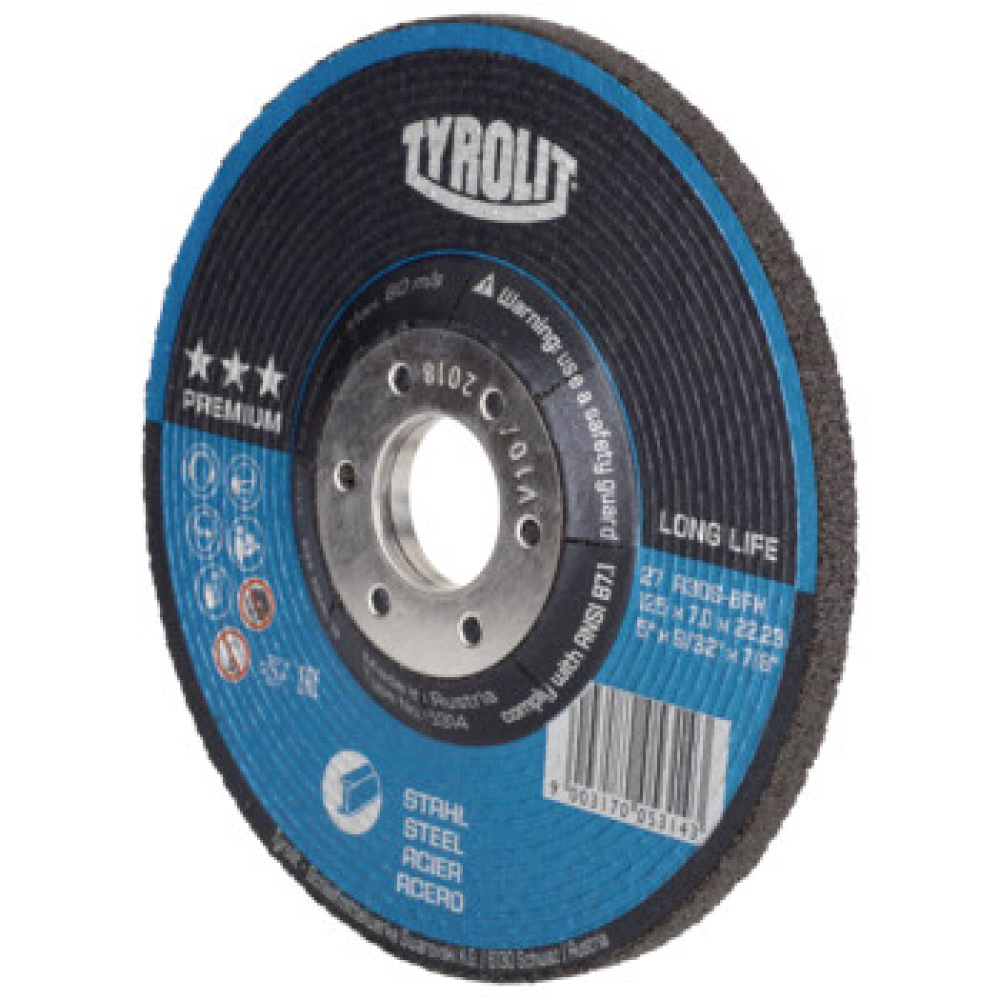

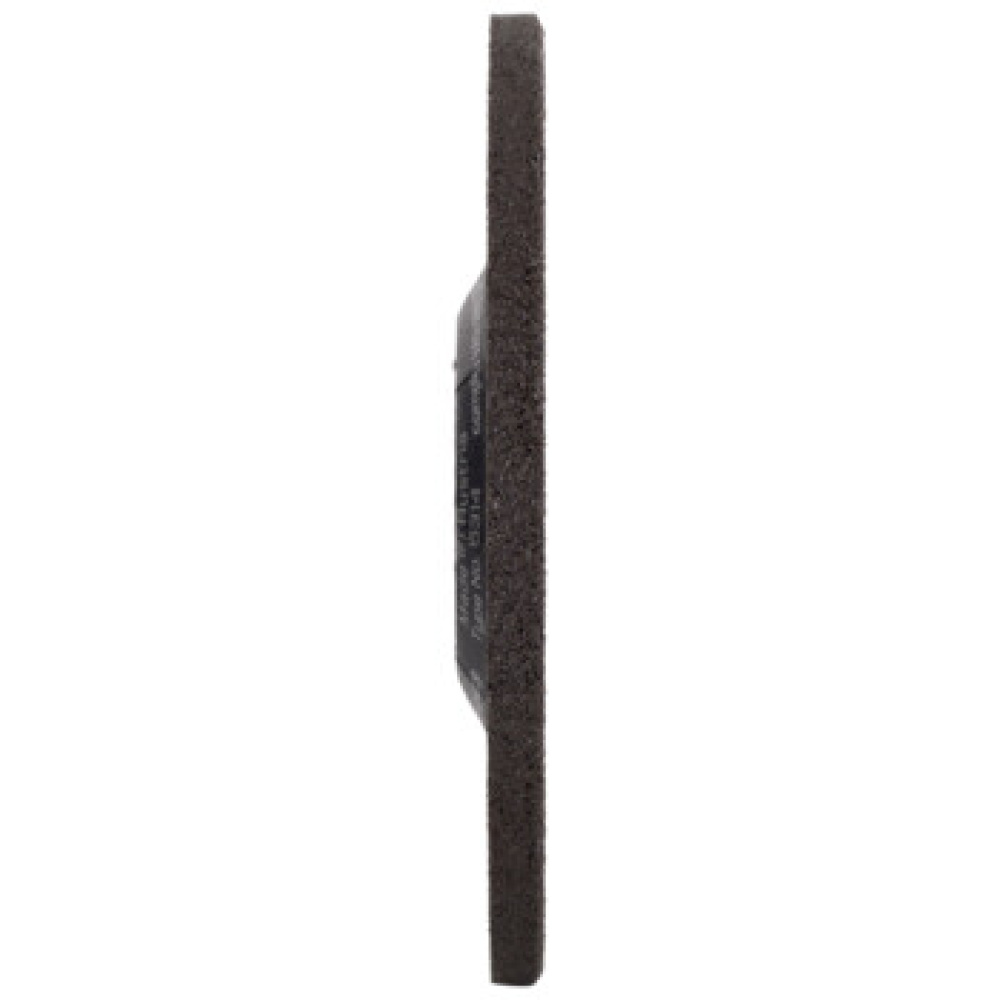

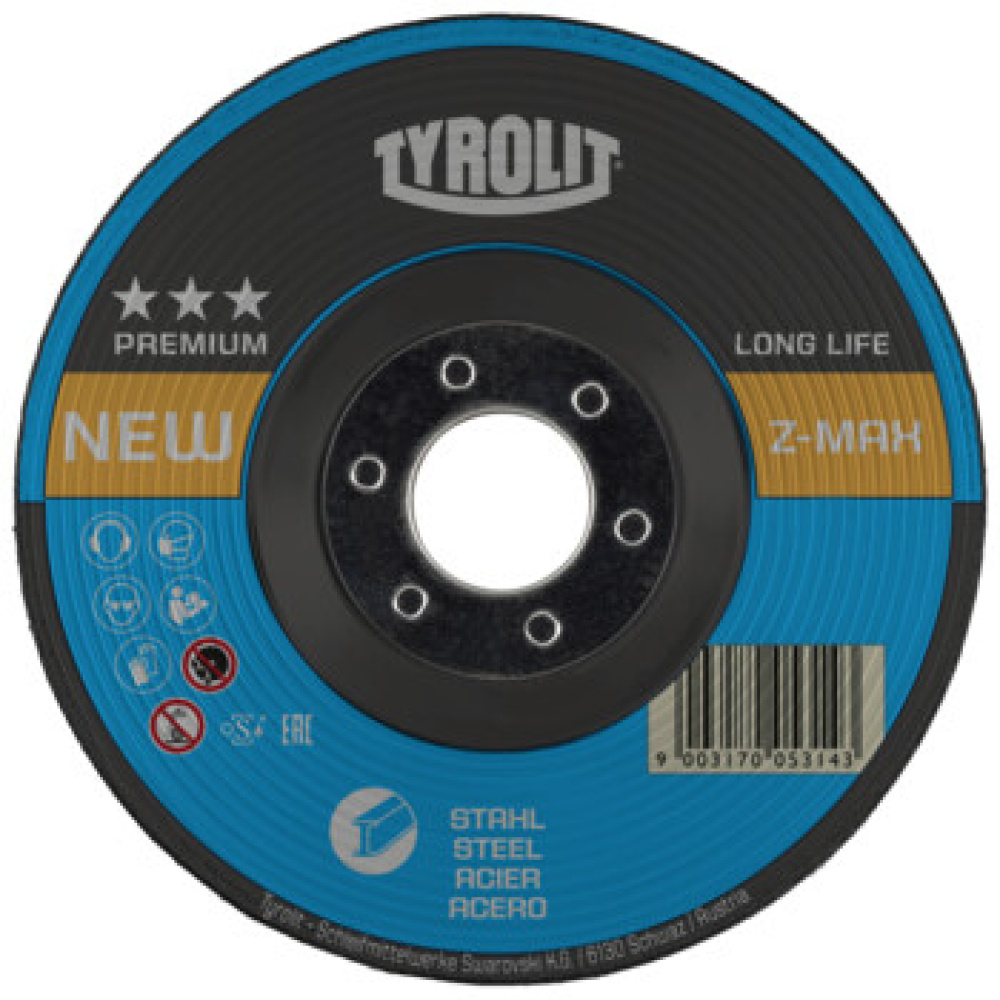

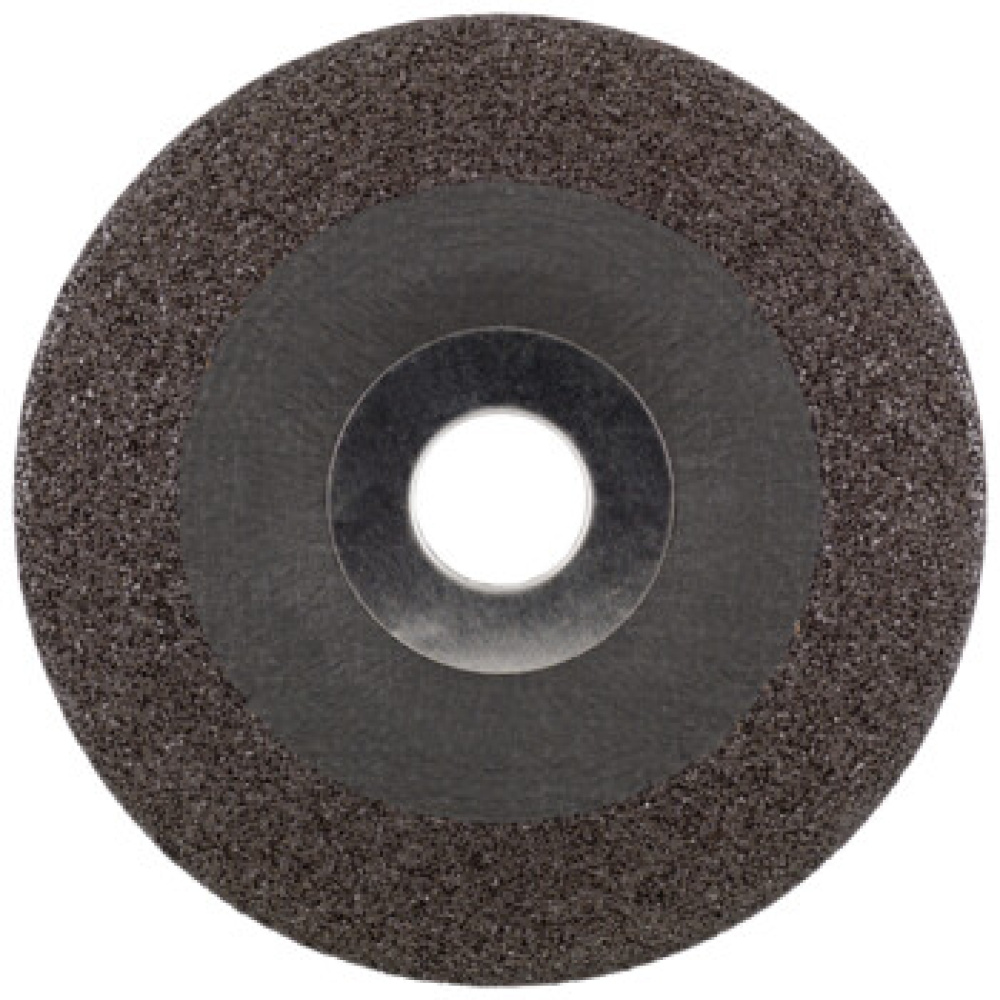

High performance grinding wheel for face and edge grinding on steel. Suitable for all common angle grinders.
The PREMIUM LONGLIFE high performance grinding wheel is characterized by its excellent lifetime, especially for face and edge grinding. In the thicknesses 7, 8 and 10 mm, the LONGLIFE rough grinding wheel offers particularly high dimensional stability for welding. In the thickness of 4 mm it is used especially in pipeline construction and for fillet weld machining.
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Additional Information
Combination of zirconia alumina and innovative bond system offers unprecedented abrasiveness
Comfort Start ensures a comfortable start when grinding and increases the level of working comfort
High-performance rough grinding wheel with LONGLIFE technology for maximum lifetime
Technical Details
Details
Application 1:
For surface and edge grinding and for welding in demanding applications on different steel grades
Catalog description:
28 DEPRESSED CENTR.GRIND.CONFLEX
Country of origin:
AT
Delivery unit:
5
Form additive:
CON
grit size 1:
24
Gross Weight:
0.618
Id. dimension:
D x U x H
Level 1:
Grinding wheels
Level 1 ID:
20003
Level 2:
Rough grinding wheels
Level 2 ID:
20109
Level 3:
Angle grinder
Level 3 ID:
38
Level 4:
PREMIUM LONGLIFE Z-FORCE Rough Grinding Wheels For Steel
Level 4 ID:
26282
Machinable material:
Steel
Main dimension 1:
9"x1/4"x5/8"-11
Main dimension 1.1:
230
Main dimension 3:
7
Main dimension 5:
22.23
Material Group:
ABH30
Max. RPM:
0
Max. working speed:
72
Net Weight:
0.567
Product Subheadline:
For Steel
PTS LEVEL 3:
239
Quality line:
PREMIUM
Recommendation 1:
1/8" to 5/16" thickness for rough grinding with enhanced lifetime
Recommendation 2:
Best results when used on powerful angle grinders
Shape:
28
Specification:
ZA24R-BFX
tariff code:
6804.22.6000
Title Product Description:
PREMIUM LONGLIFE Z-FORCE Rough Grinding Wheels
Unit:
rpm
Unit of measure:
ST
Unnamed: 33:
9.05511811023622
Unnamed: 35:
0.2755905511811024
weight lbs:
1.2474
Weight Unit:
kg
Manufactured By:
Radiac Abrasives
