Product Overview

Kyocera 16IR 5501 TC60 Grade Uncoated Cermet, Indexable Threading Insert

Kyocera 16IR 5501 TC60 Grade Uncoated Cermet, Internal, 55 Degree Partial Profile, Right-Hand Threading Insert for Parallel Pipe [G(PF)], Tapered Pipe [Rc(PT), (BSPT)], Whitworth (W) Threads

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Material:

Chipbreaker:

Additional options that would change other selections

Coating Process:

Additional options that would change other selections

Insert Holding Method:

Additional options that would change other selections

Specific Products:

Technical Details

Details

Category:

Cutting Tools

Subcategory:

Inserts

Subtype:

Indexable Cutting Tools

Category Level 4:

Threading Inserts

Coating Process:

Uncoated

Insert Holding Method:

Screw or Clamp

Material:

Cermet

Number of Cutting Edges:

Primary Workpiece Material:

(P) Steel|(M) Stainless Steel

Thread Standard:

Parallel Pipe [G(PF)]|Tapered Pipe [Rc(PT), (BSPT)]|Whitworth (W)

Thread Type:

Internal

Additional Manufacturer Part Number:

8807722

ANSI Part Number:

16IR5501TC60

Application:

Internal Threading

California Prop 65 Item:

View

Country of Origin:

US, JAPAN, CHINA, SOUTH KOREA, OTHER

Discount Category Description:

Carbide / Cermet

ECCN:

EAR99

Feature 1:

Insert for Internal Threading with 3 Cutting Edges

Feature 2:

55 Degree Partial Profile for Parallel Pipe [G(PF)], Tapered Pipe [Rc(PT), (BSPT)], Whitworth (W) threads

Feature 3:

Excellent surface finish cermet grade for stable machining

Feature 4:

Application: For milling, grooving, and threading of steel and stainless steel

Hand:

Right-Hand

Harmonized Code:

8209.00.0060

Insert Grade:

TC60

Insert Size:

ISO Part Number:

16IR5501

Material Group / Grade:

TC60

Min Order Qty:

Origin:

JPN

Pack Height:

0.394

Pack Length:

4.134

Pack Width:

1.772

Product URL:

https://app.catsy.com/app/share/739/o/collections/4004662142/digitalcatalog/item?sku=8807722

Series Description:

Lay-down Threading

Series.1:

LDT

Shipping Weight:

0.0875

Thread Pitch (TPI):

G(PF), Rc(PT), (BSPT): 28-11, W: 24-11

Thread Profile:

55 Degree Partial Profile

Tool Style:

16IR

Unit (inch/mm):

inch

UNSPSC:

23291804

UNSPSC Title:

Threading Insert

Usage Classification:

Continuous

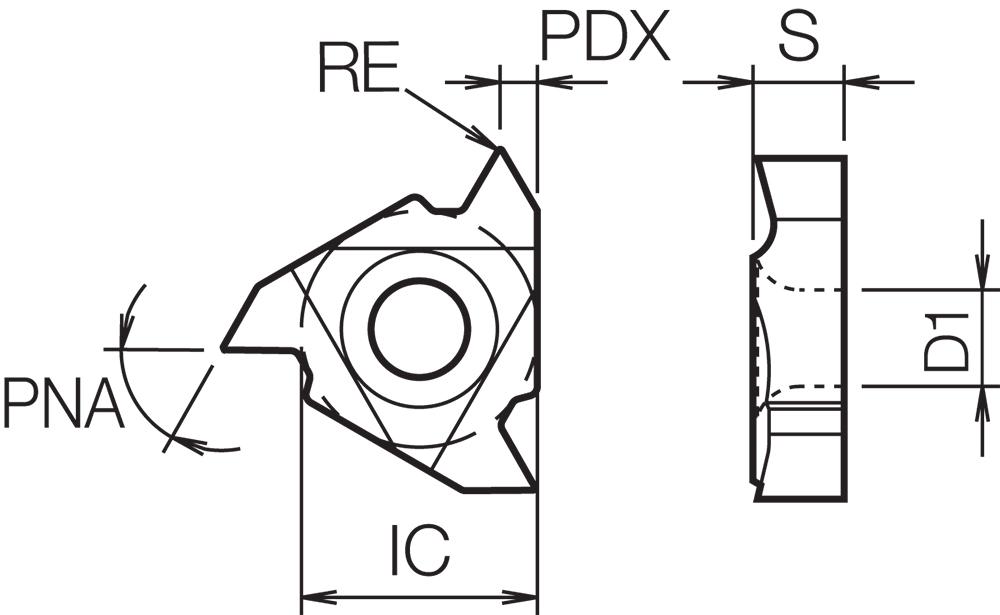

[IC] Inscribed Circle:

3/8"

[IC] Inscribed Circle (mm):

9.525

[RE] Corner Radius:

0.004"

[RE] Corner Radius (mm):

0.10

[S] Thickness:

0.145"

[S] Thickness (mm):

3.68

Manufactured By:

KYOCERA Precision Tools
