Part Number: TMB05210 / Vendor ID Number: 10831 / Custom:
KYOCERA Precision Tools TMB05210

KYOCERA Precision Tools TMB05210
by KYOCERA Precision Tools

Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview

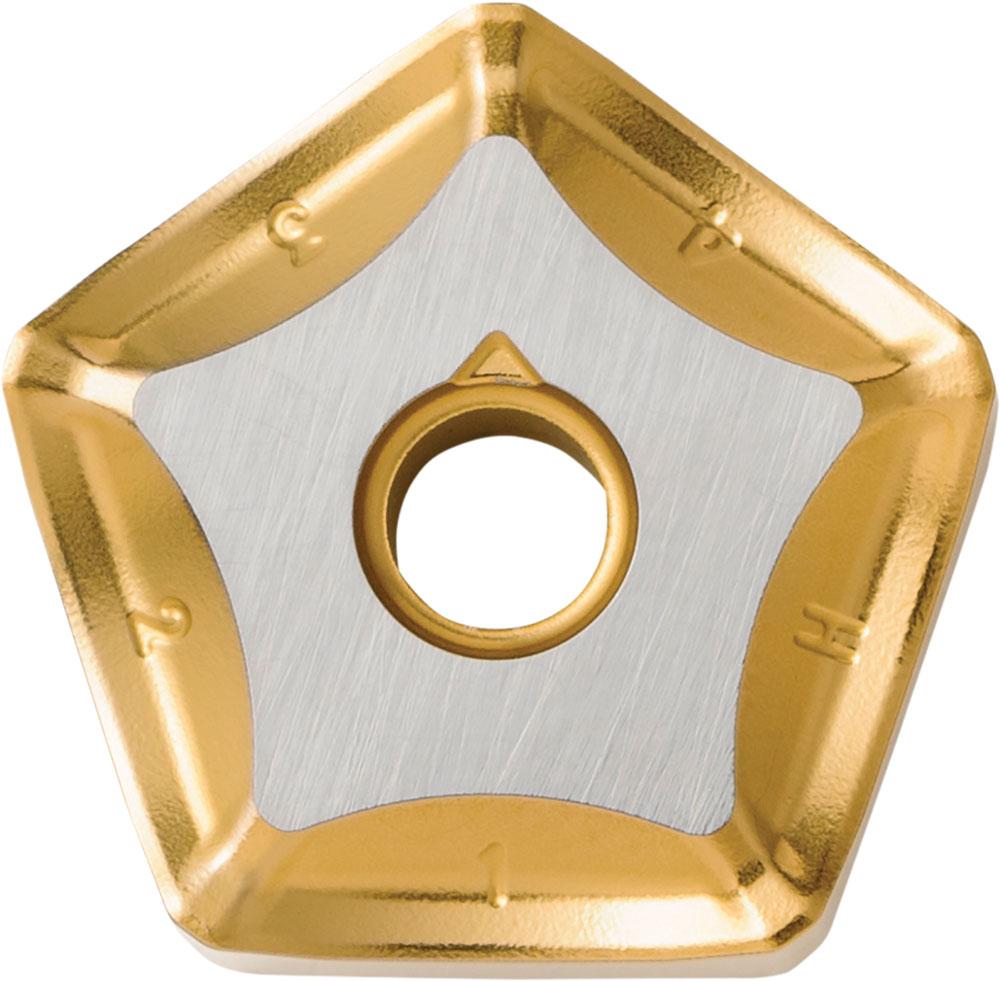

Kyocera PNMG 1106XNENGH CA420M Grade CVD Carbide, Indexable Milling Insert
Kyocera PNMG 1106XNENGH CA420M Grade CVD Carbide, Pentagon, Negative Rake Angle, Neutral Milling Insert for Roughing in (K) Gray Cast Iron, (K) Nodular Cast Iron
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Number of Flutes:
Chipbreaker:
Additional options that would change other selections
Coating Process:
Additional options that would change other selections
Material:
Additional options that would change other selections
Info & Guides
PDF
PDF
PDF
Technical Details
Details
Category:
Milling
Subcategory:
Indexable
Subtype:
Milling Indexable Inserts
Chipbreaker:
XNEN-GH
Coating Process:
CVD
Insert Holding Method:
Screw
Insert Shape:
Pentagon
Material:
Carbide
Number of Cutting Edges:
10
Primary Workpiece Material:
(K) Gray Cast Iron|(K) Nodular Cast Iron
Rake:
Negative
Additional Manufacturer Part Number:
8842540
ANSI Part Number:
PNMG1106XNENGHCA420M
Application:
Chamfering|Facing
California Prop 65 Item:
View
Country of Origin:
US, JAPAN, CHINA, SOUTH KOREA, OTHER
Cutting Range:
Roughing
Discount Category Description:
Carbide / Cermet
ECCN:
EAR99
Feature 1:
Insert for Facing, Chamfering
Feature 2:
Honed Edge / Tough Edge (Heavy Milling) with 10 Cutting Edges
Feature 3:
Kyocera's unique crystal control technology and advanced layer adhesion CVD coating with superior wear resistance and toughness
Feature 4:
Application: Milling of gray and nodular cast iron
Hand:
Neutral
Harmonized Code:
8209.00.0030
Insert Grade:
CA420M
Insert Size:
1106
ISO Part Number:
PNMG1106XNEN-GH
Material Group / Grade:
CA420M
Min Order Qty:
10
Origin:
JPN
Pack Height:
0.551
Pack Length:
5.118
Pack Width:
2.441
Product URL:
https://app.catsy.com/app/share/739/o/collections/4004662142/digitalcatalog/item?sku=8842540
Series Description:

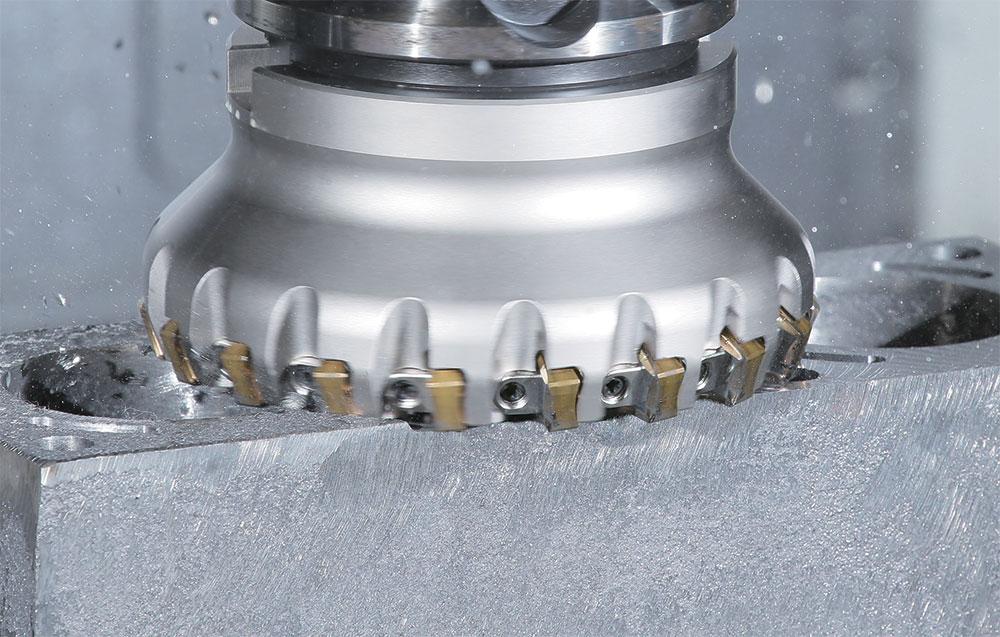

MFK Milling
Series.1:
MFK
Shipping Weight:
0.4634
Tool Style:
PNMG
UNSPSC:
23291601
UNSPSC Title:
Milling Insert

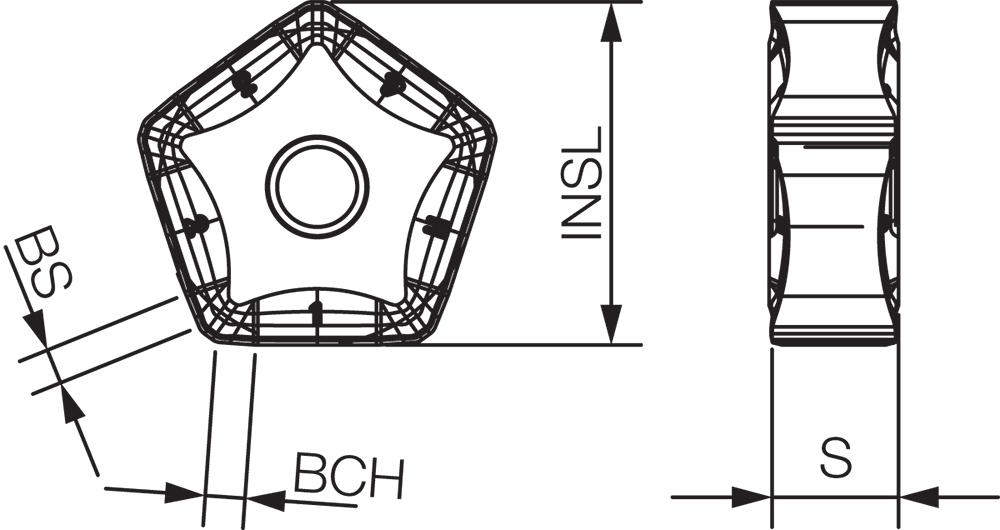

[INSL] Insert Length (Decimal Inch):
0.6784
[INSL] Insert Length (mm):
17.23
[S] Thickness:
1/4"
[S] Thickness (mm):
6.35
Manufactured By:
KYOCERA Precision Tools
