Product Overview

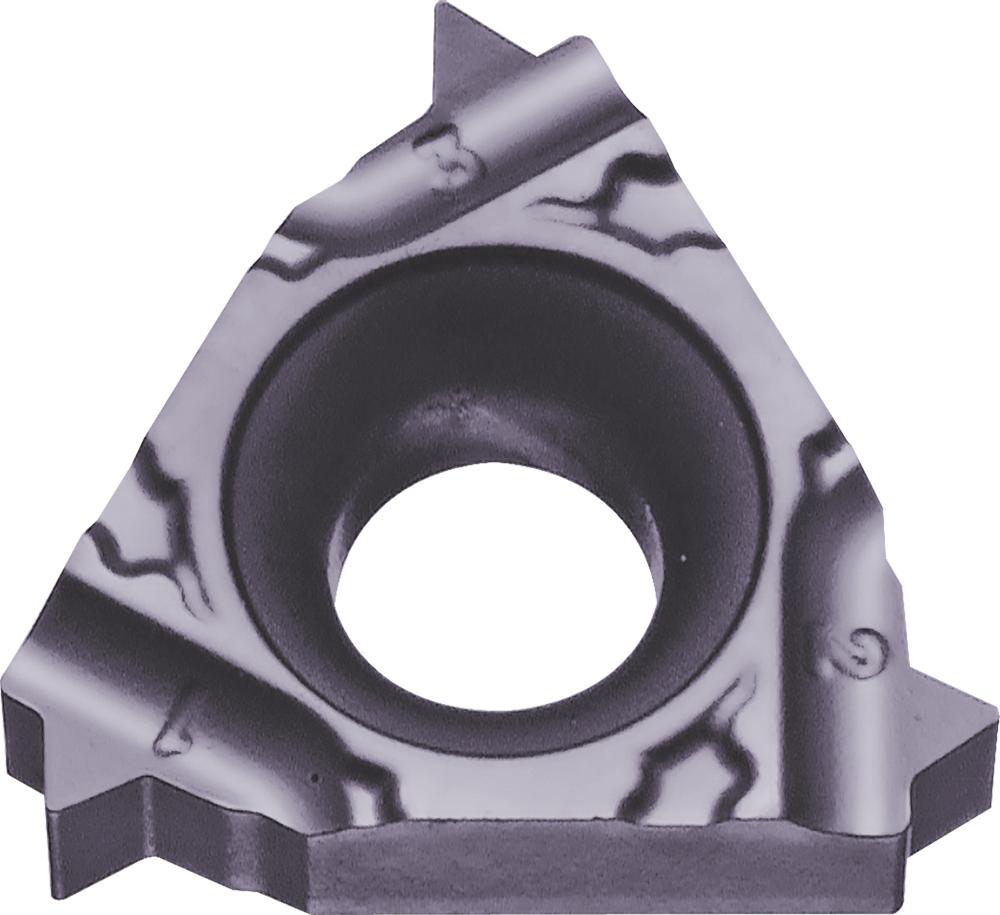

Kyocera 11IR 150ISOTF PR1515 Grade PVD Carbide, Indexable Threading Insert

Kyocera 11IR 150ISOTF PR1515 Grade PVD Carbide, Internal, 60 Degree Full Profile, Right-Hand Threading Insert for Metric (M) Threads

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Material:

Chipbreaker:

Coating Process:

Additional options that would change other selections

Insert Holding Method:

Additional options that would change other selections

Specific Products:

Additional Information

60 Degree Full Profile for Metric (M) threads

Application: PVD for all Stainless Steel, Carbon Steel, and Alloy Steel

Insert for Internal Threading with 3 Cutting Edges

MEGACOAT NANO PVD insert grade for Stainless Steel and Carbon/Alloy Steel

Info & Guides

SDS Cemented Carbide

Technical Details

Details

Category:

Threading

Subcategory:

Thread Mills

Subtype:

Indexable Threadmill Inserts

ANSI Part Number:

11IR150ISOTFPR1515

Application:

Internal Threading

California Prop 65 Item:

View

Chipbreaker:

Coating / Composition:

MEGACOAT NANO

Coating Process:

PVD

Compatible Toolholder (Partial):

S…SINR-2, SINR…-11E, SINR…-11

Country of Origin:

US, JAPAN, CHINA, SOUTH KOREA, OTHER

Discount Category Description:

Carbide / Cermet

ECCN:

EAR99

Hand:

Right-Hand

Harmonized Code:

8209.00.0030

Insert Grade:

PR1515

Insert Holding Method:

Screw or Clamp

Insert Size:

Insert Size (ISO):

ISO Part Number:

11IR150ISOTF

Lead Time:

7 - 10

Material:

Carbide

Material Group / Grade:

PR1515

Min Order Qty:

Number of Cutting Edges:

Origin:

JPN

Pack Height:

0.394

Pack Length:

4.134

Pack Width:

1.772

Primary Workpiece Material:

(M) Stainless Steel

Secondary Workpiece Material:

(P) Carbon/Alloy Steel

Series:

LDT

Series Description:

Lay-down Threading

Shipping Weight:

0.0467

Thread Pitch (mm):

M: 1.50

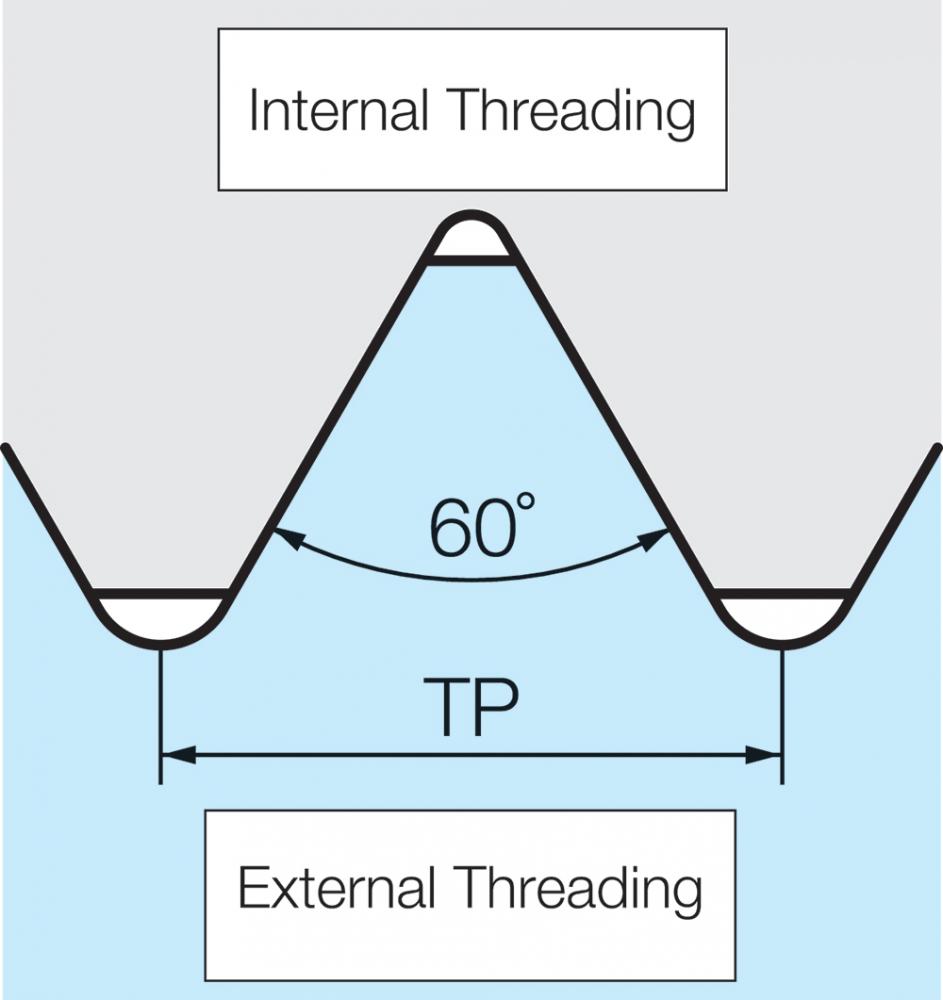

Thread Profile:

60 Degree Full Profile

Thread Standard:

Metric (M)

Thread Type:

Internal

Tool Style:

11IR

UNSPSC:

23291804

UNSPSC Title:

Threading Insert

Usage Classification:

Continuous

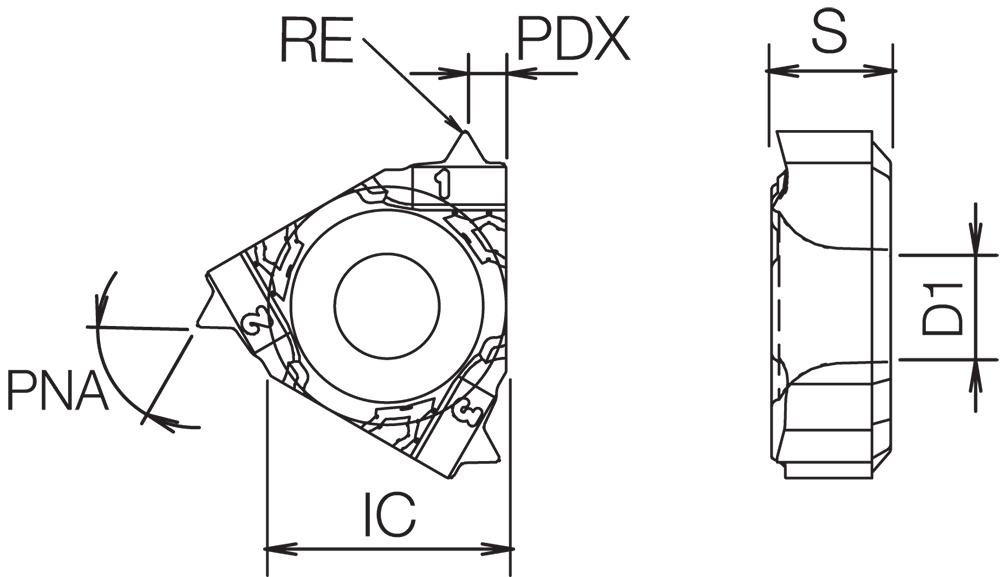

[D1] Hole Diameter (Decimal Inch):

0.1181

[D1] Hole Diameter (mm):

3.00

[IC] Inscribed Circle:

1/4"

[IC] Inscribed Circle (mm):

6.35

[PDX] Profile Distance (Decimal Inch):

0.0433

[PDX] Profile Distance (mm):

1.10

[PNA] Profile Included Angle (Degree):

[RE] Corner Radius:

0.004"

[RE] Corner Radius (mm):

0.11

[S] Thickness:

1/8"

[S] Thickness (mm):

3.18

Manufactured By:

KYOCERA Precision Tools
