Product Overview

Kyocera 16IR 250ISOTF PR1535 Grade PVD Carbide, Indexable Threading Insert

Kyocera 16IR 250ISOTF PR1535 Grade PVD Carbide, Internal, 60 Degree Full Profile, Right-Hand Threading Insert for Metric (M) Threads

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Material:

Chipbreaker:

Coating Process:

Additional options that would change other selections

Insert Holding Method:

Additional options that would change other selections

Specific Products:

Additional Information

60 Degree Full Profile for Metric (M) threads

Application: PVD for all Stainless Steel, Heat-Resistant Alloy, Carbon Steel, and Alloy Steel

Insert for Internal Threading with 3 Cutting Edges

MEGACOAT NANO PVD Insert for Stabilized threading operations and long tool life

Info & Guides

SDS Cemented Carbide

Technical Details

Details

Category:

Threading

Subcategory:

Thread Mills

Subtype:

Indexable Threadmill Inserts

ANSI Part Number:

16IR250ISOTFPR1535

Application:

Internal Threading

California Prop 65 Item:

View

Chipbreaker:

Coating / Composition:

MEGACOAT NANO

Coating Process:

PVD

Compatible Toolholder (Partial):

S…SINR-3, SINR…-16, CINR…-16

Country of Origin:

US, JAPAN, CHINA, SOUTH KOREA, OTHER

Discount Category Description:

Carbide / Cermet

ECCN:

EAR99

Hand:

Right-Hand

Harmonized Code:

8209.00.0030

Insert Grade:

PR1535

Insert Holding Method:

Screw or Clamp

Insert Size:

Insert Size (ISO):

ISO Part Number:

16IR250ISOTF

Lead Time:

7 - 10

Material:

Carbide

Material Group / Grade:

PR1535

Min Order Qty:

Number of Cutting Edges:

Origin:

JPN

Pack Height:

0.394

Pack Length:

4.134

Pack Width:

1.772

Primary Workpiece Material:

(M) Stainless Steel

Secondary Workpiece Material:

(P) Carbon/Alloy Steel|(S) Heat-Resistant Alloy

Series:

LDT

Series Description:

Lay-down Threading

Shipping Weight:

0.0768

Thread Pitch (mm):

M: 2.50

Thread Profile:

60 Degree Full Profile

Thread Standard:

Metric (M)

Thread Type:

Internal

Tool Style:

16IR

UNSPSC:

23291804

UNSPSC Title:

Threading Insert

Usage Classification:

Continuous

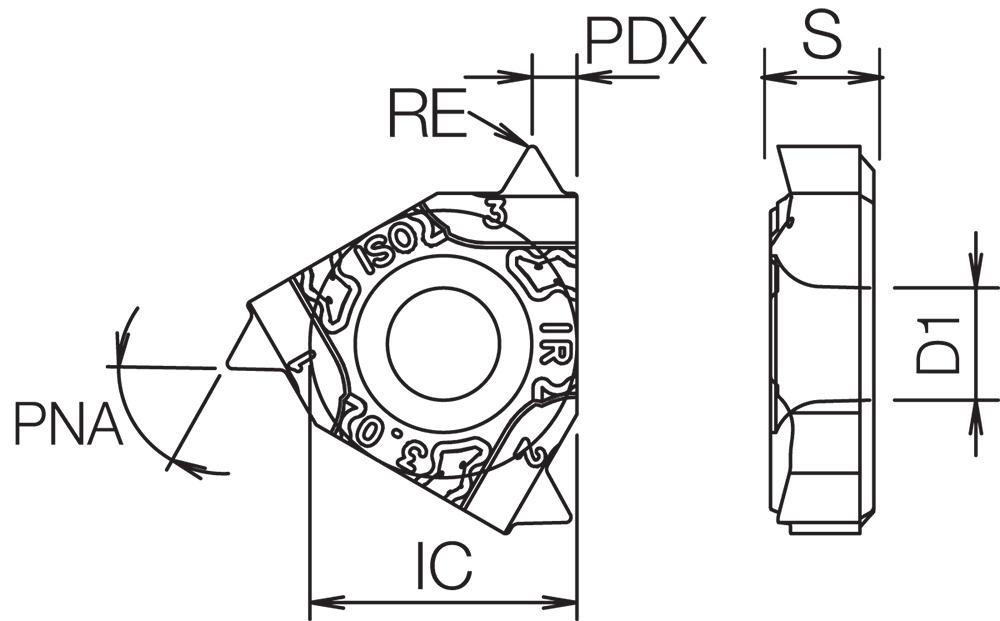

[D1] Hole Diameter (Decimal Inch):

0.1575

[D1] Hole Diameter (mm):

4.00

[IC] Inscribed Circle:

3/8"

[IC] Inscribed Circle (mm):

9.525

[PDX] Profile Distance (Decimal Inch):

0.0630

[PDX] Profile Distance (mm):

1.60

[PNA] Profile Included Angle (Degree):

[RE] Corner Radius:

0.007"

[RE] Corner Radius (mm):

0.17

[S] Thickness:

0.145"

[S] Thickness (mm):

3.68

Manufactured By:

KYOCERA Precision Tools
