Part Number: TJY18242 / Vendor ID Number: 10831 / Custom:
KYOCERA Precision Tools TJY18242

KYOCERA Precision Tools TJY18242
by KYOCERA Precision Tools

Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview

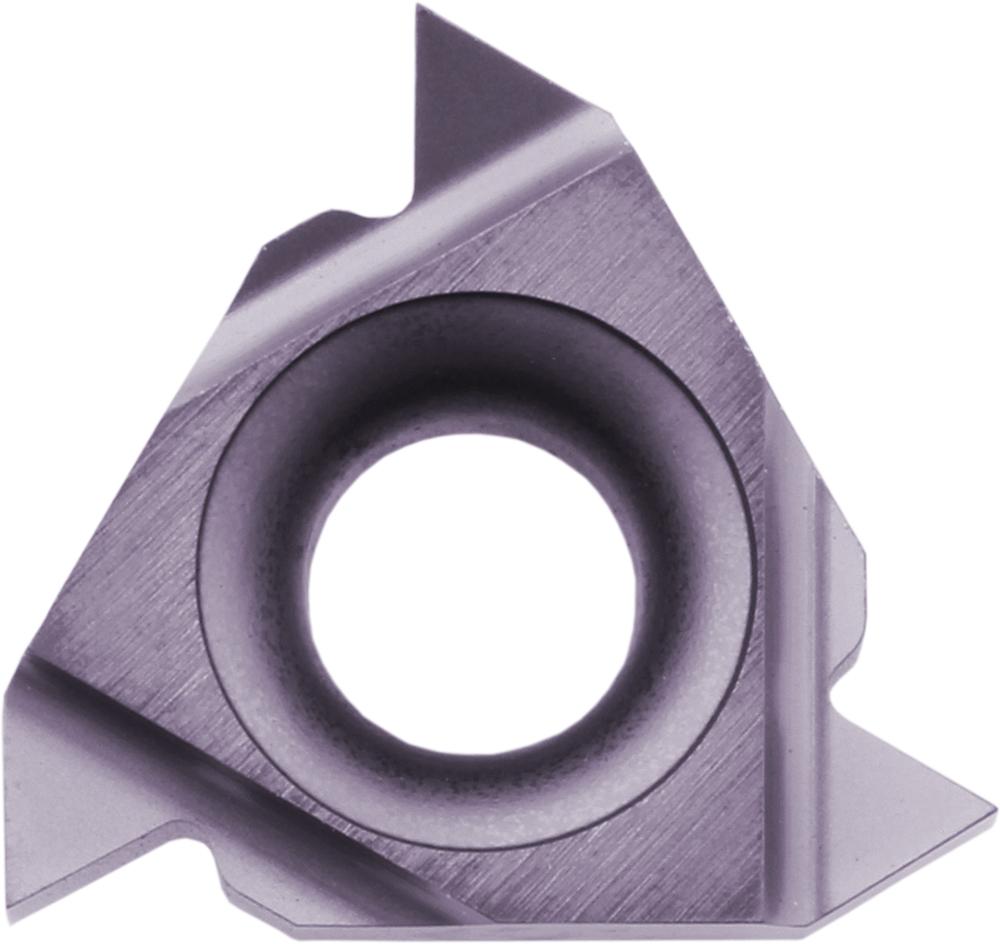

Kyocera 22 IRN60 PR1115 Grade PVD Carbide, Indexable Threading Insert
Kyocera 22 IRN60 PR1115 Grade PVD Carbide, Internal, 60 Degree Partial Profile, Right-Hand Threading Insert for Metric (M), Unified (UN) Threads
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Material:
Chipbreaker:
Coating Process:
Additional options that would change other selections
Insert Holding Method:
Additional options that would change other selections
Specific Products:
Technical Details
Details
Category:
Cutting Tools
Subcategory:
Inserts
Subtype:
Indexable Cutting Tools
Category Level 4:
Threading Inserts
Coating Process:
PVD
Insert Holding Method:
Screw or Clamp
Material:
Carbide
Number of Cutting Edges:
3
Primary Workpiece Material:
(P) Carbon/Alloy Steel|(M) Stainless Steel
Thread Standard:
Metric (M)|Unified (UN)
Thread Type:
Internal
Additional Manufacturer Part Number:
8829898
ANSI Part Number:
22IRN60PR1115
Application:
Internal Threading
California Prop 65 Item:
View
Country of Origin:
US, JAPAN, CHINA, SOUTH KOREA, OTHER
Discount Category Description:
Carbide / Cermet
ECCN:
EAR99
Feature 1:
Insert for Internal Threading with 3 Cutting Edges
Feature 2:
60 Degree Partial Profile for Metric (M), Unified (UN) threads
Feature 3:
Hard TiAlN base PVD coated super micro-grain carbide
Feature 4:
Application: Superior anti-oxidation performance with well balanced wear resistance and toughness in steel and stainless steel
Hand:
Right-Hand
Harmonized Code:
8209.00.0030
Insert Grade:
PR1115
Insert Size:
22
ISO Part Number:
22IRN60
Material Group / Grade:
PR1115
Min Order Qty:
5
Origin:
JPN
Pack Height:
0.472
Pack Length:
4.331
Pack Width:
2.047
Product URL:
https://app.catsy.com/app/share/739/o/collections/4004662142/digitalcatalog/item?sku=8829898
Series Description:
Lay-down Threading
Series.1:
LDT
Shipping Weight:
0.1746
Thread Pitch (mm):
M: 3.50-5.00
Thread Pitch (TPI):
UN, UNF: 7-5
Thread Profile:
60 Degree Partial Profile
Tool Style:
22IR
Unit (inch/mm):
inch/mm
UNSPSC:
23291804
UNSPSC Title:
Threading Insert
Usage Classification:
Continuous

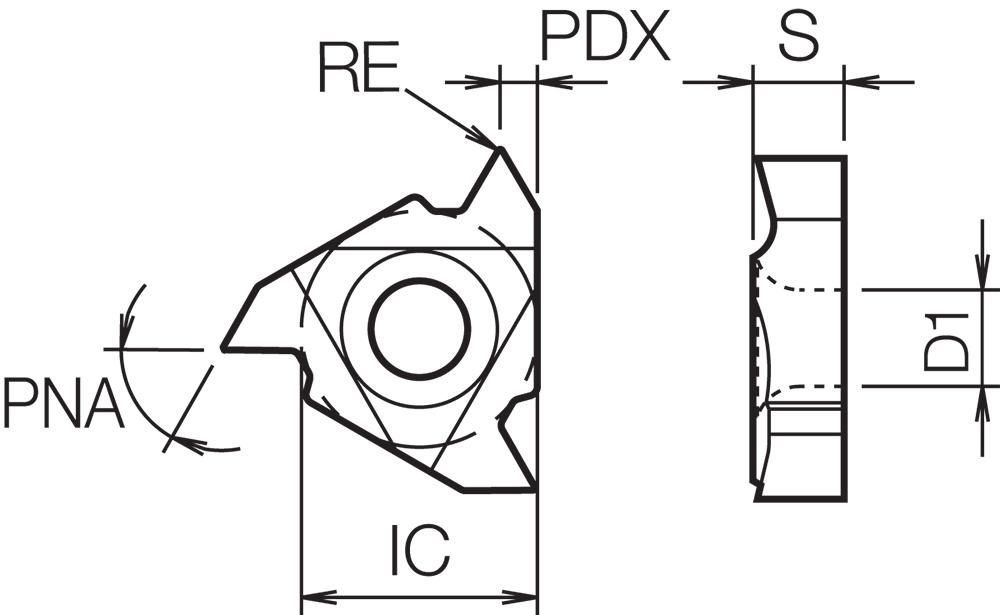

[IC] Inscribed Circle:
1/2"
[IC] Inscribed Circle (mm):
12.70
[RE] Corner Radius:
0.009"
[RE] Corner Radius (mm):
0.23
[S] Thickness:
0.193"
[S] Thickness (mm):
4.90
Manufactured By:
KYOCERA Precision Tools
