Item Sales Info

Part Number: DTD500 / Vendor ID Number: 10831 / Custom:

KYOCERA Precision Tools DTD500
by KYOCERA Precision Tools

Add To Quote

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Overview

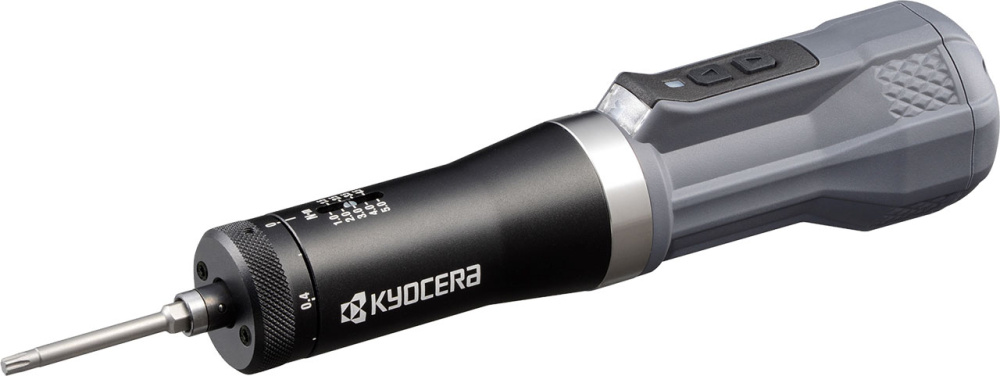

Kyocera DTD500 Electric Torque Insert Driver

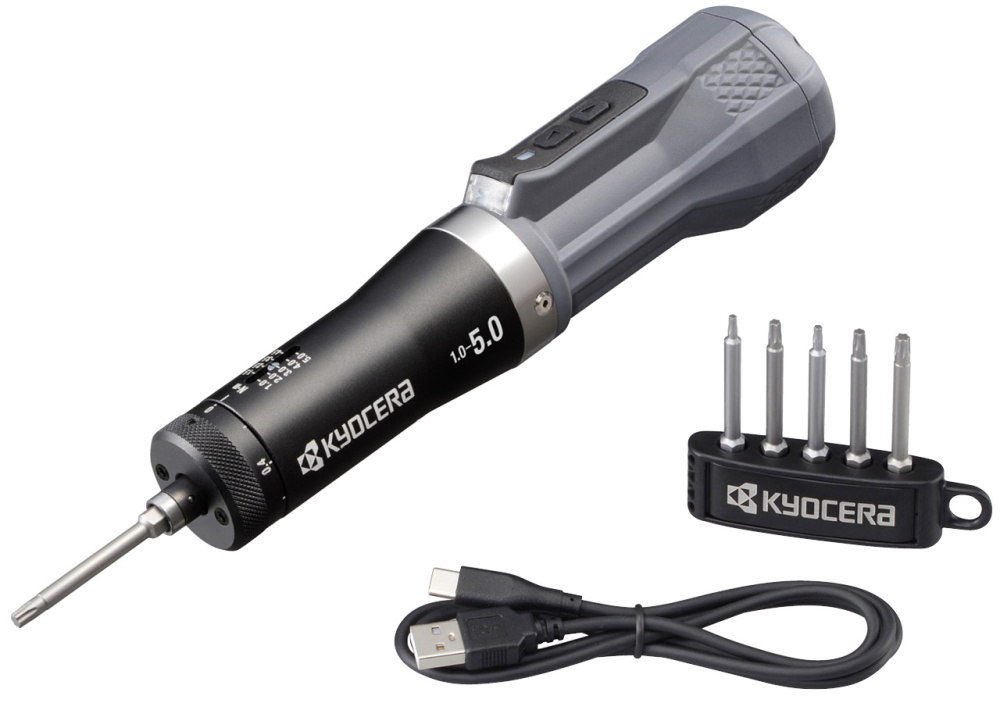

Kyocera DTD500 Electric Torque Insert Driver and Accessories

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Material:

Additional Information

Driver will Boost Efficiency and Decrease Downtime

Includes 5 piece pack of various Torx/Torx Plus Bits

Includes Built-In LED Light for ease of seeing insert screw

Includes DC 3.7V Li-Ion, 970mAh Rechargeable Battery with USB-Type C Charging Cord

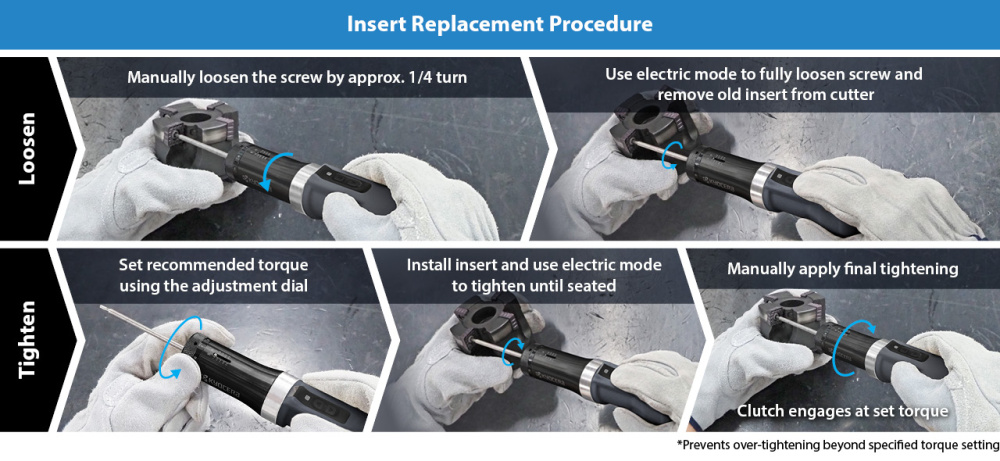

Quick and Easy Insert Replacements with Precise Torque Control

Info & Guides

Literature 11

Technical Details

Details

Category:

Hand Tools

Subcategory:

Wrenches

Subtype:

Torque Wrenches

ANSI Part Number:

DTD500 Electric Insert Driver

Battery Type:

DC 3.7V Li-Ion, 970mAh Rechargeable USB-Type C

California Prop 65 Item:

View

Compatible Hardware:

Torx Bit | Torx Plus Bit

Country of Origin:

US, JAPAN, CHINA, SOUTH KOREA, OTHER

Discount Category Description:

Steel / Hardware

Driver:

1/4 in Hex

ECCN:

EAR99

Handle Type:

Ergonomic

Harmonized Code:

8467.21.0010

ISO Part Number:

DTD500 Electric Torque Insert Driver

Lead Time:

Material:

Other

Material Group / Grade:

GR98

Maximum Torque:

5.0 N-m

Min Order Qty:

Minimum Torque:

1.0 N-m

No-Load Free Rotation Speed:

270 RPM

Origin:

JPN

Pack Height:

3.7795

Pack Length:

9.0945

Pack Width:

3.1102

Rotation:

Clockwise | Counterclockwise

Series:

DTD

Series Description:

DTD500 Torque Wrench & Accs

Shipping Weight:

1.6976

Spare Part Type:

Electric Torque Insert Driver

Tightening Torque (Nm):

1.0 to 5.0 N-m

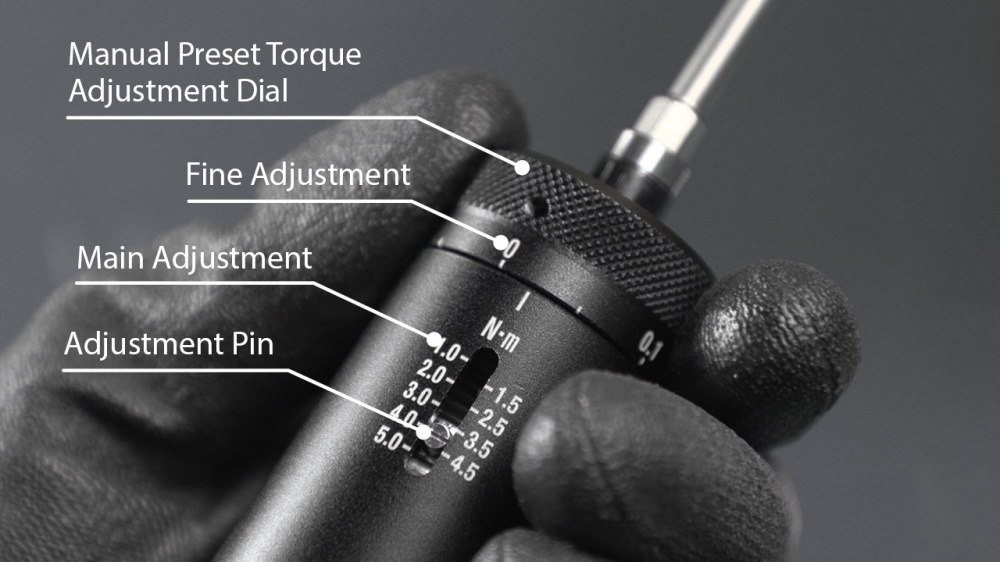

Torque Adjustability:

Adjustable 0.05 Nm Steps

Torque Measurement Type:

Newton-Meter

Unit (inch/mm):

UNSPSC:

27111700

UNSPSC Title:

Wrenches and Drivers

[B1] Handle Width 2 (Decimal Inch):

1.9685

[B1] Handle Width 2 (mm):

50.00

[B] Handle Width (Decimal Inch):

2.1654

[B] Handle Width (mm):

55.00

[D] Overall Length (Decimal Inch):

8.7008

[D] Overall Length (mm):

221.00

[E] Tip/Screw Socket Width (Decimal Inch):

0.2500

[E] Tip/Screw Socket Width (mm):

6.35

Manufactured By:

KYOCERA Precision Tools
