Item Sales Info
Part Number: 715207-C3 / Vendor ID Number: 1126441 / Custom:

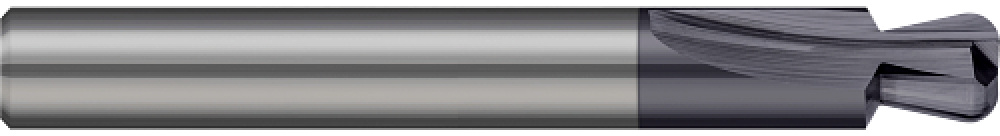

Parker Hannifin O-Ring Dovetail Cutter

Parker Hannifin O-Ring Dovetail Cutter
by Harvey Tool

Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview
0.0550" (1.4 mm) Cutter DIA x 0.0150" (1/64) Radius x 24° included - 2 FL - AlTiN Coated
0.0550" (1.4 mm) Cutter DIA x 0.0150" (1/64) Radius x 24° included Carbide Dovetail Rougher without Drop Hole Allowance, 2 Flutes, AlTiN Coated
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Included Angle:
Coating:
Additional options that would change other selections
Center Cutting:
Additional options that would change other selections
Specific Products:
Info & Guides
Safety Data Sheet North America (SDS NA)
Technical Details
Details
Category:
Milling
Subcategory:
Solid
Subtype:
Milling Cutters
Angle per Side:
12
Catalog Cycle:
FL24
Coating:
C3
Corner Radius:
0.0150" (1/64)
Cutter Diameter:
0.0550" (1.4 mm)
Flutes:
2
Included Angle:
24
Length of Cut:
0.0540"
Metric:
N
Neck Diameter:
0.0390" (1 mm)
O Ring X Section:
0.0700"
Overall Length:
1.5000" (1-1/2)
Packaging Height:
0.315
Packaging Length:
2.36
Packaging Width:
0.315
Product Table Page Link:
https://www.harveytool.com/products/dovetail-cutters-parker-hannifin-o-ring-dovetail-cutters-without-drop-hole-allowance-rougher
Profile:
Dovetail
Shank Diameter:
0.1250" (1/8)
Tool Price Unit of Measure:
USD
Tool Product Family:
Dovetail Cutters
Tool Product Table:
Dovetail Cutters - Parker Hannifin O-Ring Dovetail Roughers WITHOUT Drop Hole Allowance
Tool Resources Link:
https://www.harveytool.com/products/tool-details-715207-C3
Tool Section:
Dovetail Cutters
Tool Series:
Specialty Profiles
Weight:
0.009
Weight Unit Of Measure:
LBS
Manufactured By:
Harvey Tool
