Details
Subcategory:
Power Saws and Accessories
ACCESSORIES / INCLUDES:

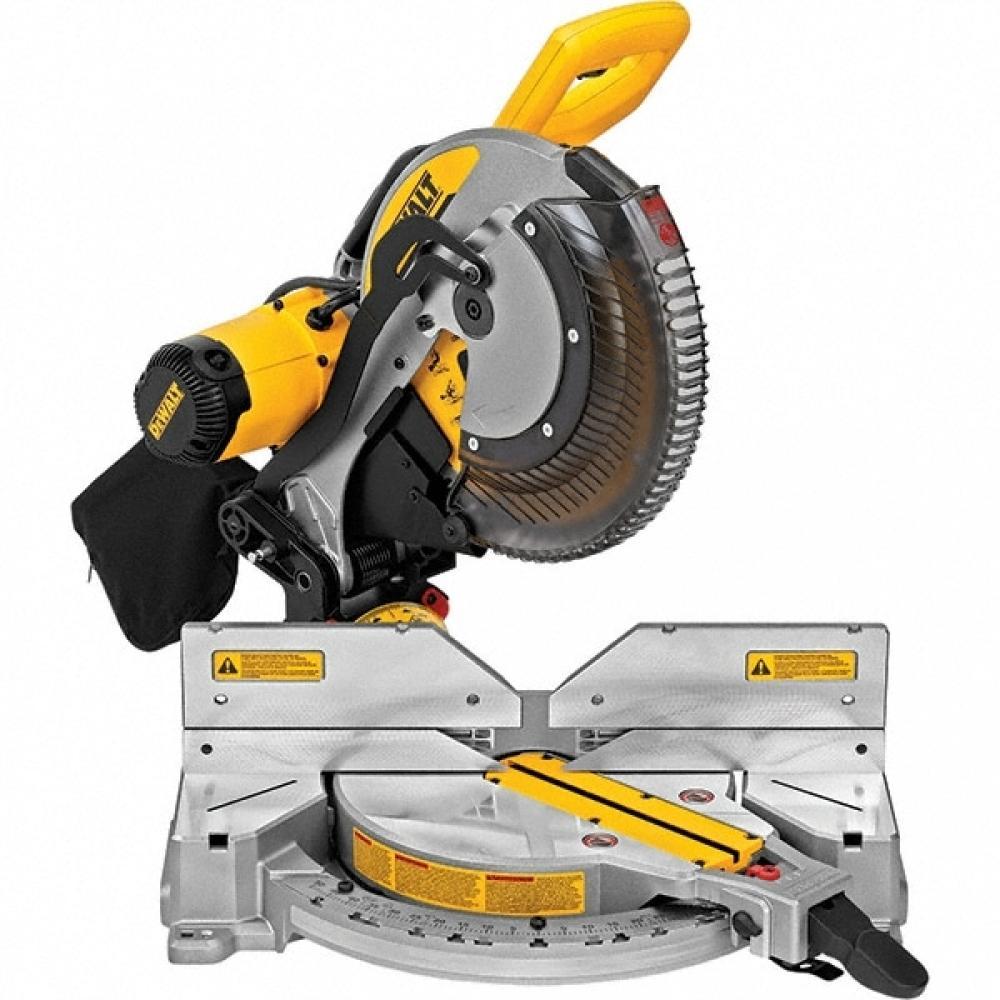

DWS716XPS Double-Bevel Compound Miter Saw
ACCESSORIES / INCLUDES.1:
12 in Carbide Tipped Blade
ACCESSORIES / INCLUDES.2:
ACCESSORIES / INCLUDES.3:
ACCESSORIES / INCLUDES.4:
Attribute 03 - PRODUCT APPLICATION:
Attribute 20 - MATERIAL APPLICATIONS:
CERTIFICATIONS or LISTINGS:
Country Name_US:
Taiwan, Republic of China
DUST COLLECTION COMPONENT:
eCommerce Copy - en-US:
The 15 Amp motor in this 12-inch Double-Bevel Compound Miter Saw drives 3,800 rpm to deliver extended power and durability. The integrated CUTLINE feature (LED work light system) provides adjustment-free cut line indication for accuracy and visibility. Thi
Feature & Benefit Value - en-US:
Stainless-steel miter detent plate with 14 positive stops delivers repeatable accuracy and worksite durability.
Feature & Benefit Value - en-US.1:
Tall sliding fences support crown molding up to 6-5/8 in. nested and base molding up to 6-1/2 in. vertically against fence.
Feature & Benefit Value - en-US.2:
Double-bevel design allows saw to bevel 0° - 48° to the left and right with positive stops at 0°, 22.5°, 33.9°, and 45°
Feature & Benefit Value - en-US.3:
0° - 50° left and right miter capacity
Feature & Benefit Value - en-US.4:
Cam lock miter handle with detent override delivers quick and accurate miter angles.
Feature & Benefit Value - en-US.5:
Integrated CUTLINE LED work light system provides adjustment-free cut line indication for accuracy and visibility.
INDIVIDUAL VS. SET (SYNDIGO):
Integrated Laser Guide (Y/N):
Master Height (Inches) US:
Master Length (Inches) US:
Master Width (Inches) US:
Masters Per Pallet (If Available) US:
MAXIMUM CUT DEPTH @ 45 DEG.:
MAXIMUM CUT DEPTH @ 90 DEG.:
Pallet Height (Inches) US:
Pallet Length (Inches) US:
Pallet Material Status US:
Pallet Weight (Pounds) US:
Pallet Width (Inches) US:
