Allied Tools, Inc: 3929 Produce Road, Louisville, KY 40218
Part Number: DCD470X1 / Vendor ID Number: 1152811 / Custom:

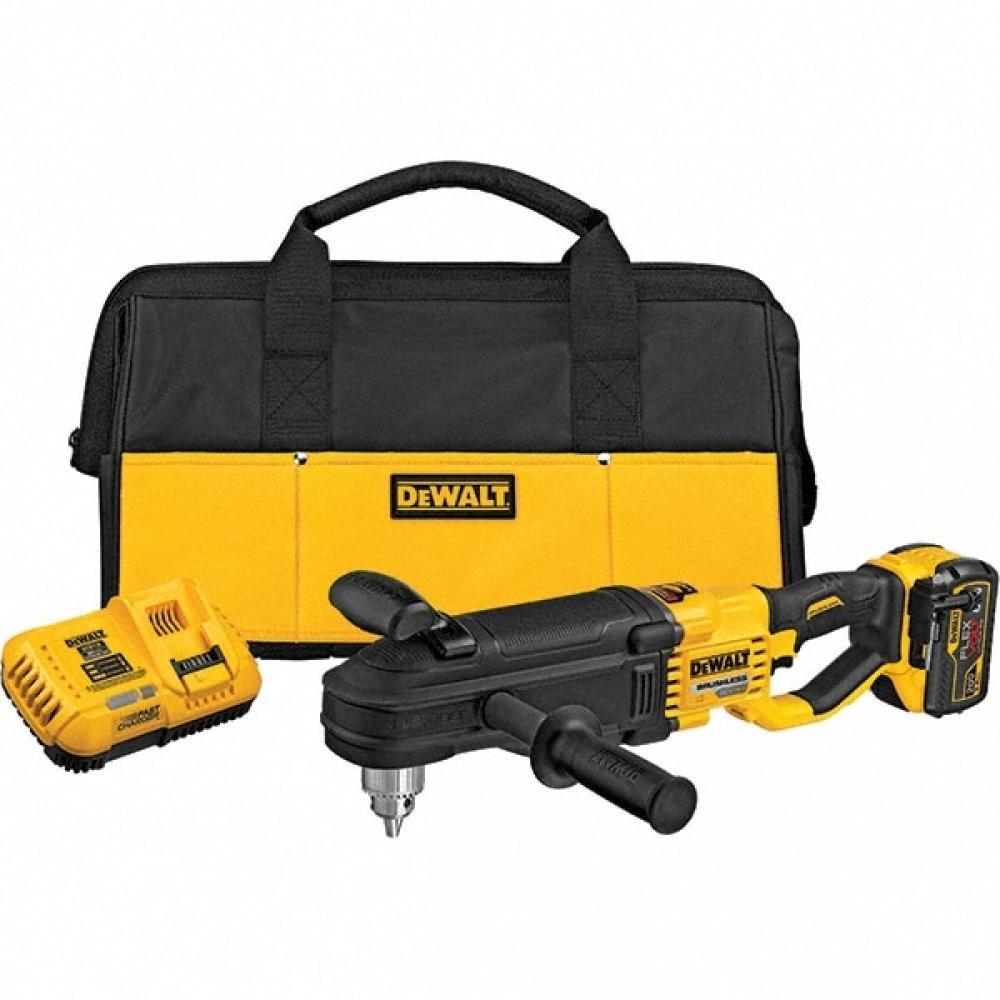

DEWALT 60V MAX* In-Line Stud and Joist Drill with E-Clutch System Kit

DEWALT 60V MAX* In-Line Stud and Joist Drill with E-Clutch System Kit
by DEWALT

Qty
Product Overview
60V MAX IN-LINE STUD&JOIST DRL KIT
DEWALT DRILLS: COMPACT 23.6
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Specific Products:
Info & Guides
Technical Details
Details
Category:
Power Tools
Subcategory:
Cordless Tools
Subtype:
Cordless Drills
ACCESSORIES / INCLUDES:
DCD470 In-Line Stud and Joist Drill
ACCESSORIES / INCLUDES.1:
DCB609 Battery
ACCESSORIES / INCLUDES.2:
contractor bag
ACCESSORIES / INCLUDES.3:
DCB118 Fast Charger
Attribute 03 - PRODUCT APPLICATION:
DRILLING
BARCODE US:
8.86E+11
BATTERY AMP HOURS (Ah):
9 Ah
BATTERY INCLUDED:
Yes
BATTERY QTY:
1
BATTERY REQUIRED:
Yes
BATTERY TYPE:
60V MAX* Lithium Ion
BRAND TAGLINE:
GUARANTEED TOUGH.
CASE TYPE:
N/A (no case)
CERTIFICATIONS or LISTINGS:
UL Listed
CHARGER INCLUDED (Y/N):
Yes
CHARGER TYPE:
Jack Plug
CHUCK SIZE:
1/2 in
CHUCK TYPE:
Keyed
CLAIMS NEEDED (Y/N):
Yes
COLOR FAMILY:
Black
COLOR FAMILY.1:
Yellow
COMMODITY CODE:
8467210010
CORDLESS VS. CORDED:
Cordless
Country Name_US:
China
Country of Origin_US:
CN
CUBIC SIZE - en-US:
2008.38 IN
DISCLAIMER:
* Maximum initial battery voltage (measured without a workload) is 20 and 60 volts. Nominal voltage is 18 and 54.
DRILL TYPE:
Variable Speed Drill
eCommerce Copy - en-US:
The 60V MAX In-Line Stud and Joist Drill is designed to handle a wide range of large drilling applications. Even with all its power, the unit is designed to keep the user in control. In addition to the integral clutch, the anti-rotation E-CLUTCH; System of
ENGINE:
Brushless
Feature & Benefit Value - en-US:
Anti-rotation E-CLUTCH System detects the motion of the tool. This feature senses the motion of the tool and shuts it down if necessary. The red indicator LED illuminates when the E-CLUTCH System is engaged.
Feature & Benefit Value - en-US.1:
2 variable-speed ranges (0-400/ 0-1320 rpm) to match appropriate speed to the application
Feature & Benefit Value - en-US.2:
Magnesium gear case to reduce weight while maintaining jobsite durability.
Feature & Benefit Value - en-US.3:
Power of the cord with cordless freedom
Feature & Benefit Value - en-US.4:
60V MAX* brushless motor for increased power and runtime
Feature & Benefit Value - en-US.5:
Tool ConnectTag Ready. Installing a DEWALTTool Tagallows for tracking and locating of the drill using the DEWALT Tool Connect.
Feature & Benefit Value - en-US.6:
Easily shift between 1st and 2nd speed without having to feather the trigger
GRINDER SWITCH TYPE:
Lock-on
HAZMAT:
Li-Ion (<101 WH)
HAZMAT CODE:
A1
HOUSING MATERIAL:
Plastic
INDIVIDUAL VS. SET (SYNDIGO):
SET
KEYLESS/KEYED:
Keyed
Master Height (Inches) US:
14.700 IN
Master Length (Inches) US:
24.100 IN
Master Quantity US:
2
MASTER UPC US:
4.00E+13
Master Weight (Pounds) US:
51.455 LB
Master Width (Inches) US:
12.700 IN
MAXIMUM SPEED (RPM):
1320 RPM
MINIMUM ORDER QTY US:
1
MOTOR TYPE:
Brushless
Net Lit-Ion Y/N:
Yes
NUMBER OF BATTERIES REQUIRED:
1
Pack Height (Inches) US:
7.087 IN
Pack Length (Inches) US:
23.6 IN
Pack Weight (Pounds) US:
24.603 LB
Pack Width (Inches) US:
12.008 IN
PACKAGING LEVEL:
BASE_UNIT_OR_EACH
Pallet Height (Inches) US:
34.500 IN
Pallet Length (Inches) US:
48.000 IN
Pallet Material Status US:
6
Pallet Quantity US:
24
PALLET UPC US:
6.09E+13
Pallet Weight (Pounds) US:
590.472 LB
Pallet Width (Inches) US:
40.000 IN
POWER SOURCE:
BATTERY
PRODUCT APPLICATION:
DRILLING
PRODUCT FINISH:
Yellow/Black
PRODUCT HEIGHT US:
7.087 IN
PRODUCT LENGTH US:
23.600 IN
PRODUCT UPC US:
8.86E+11
PRODUCT WEIGHT US:
24.603 LB
PRODUCT WIDTH US:
12.008 IN
PROP 65 GENERIC WARNING:
View
REVERSIBLE:
Yes
SALES ORG US:
20
SEO KEYWORDS:
60V MAX In-Line Stud & Joist Drill with E-Clutch System Kit
SEO KEYWORDS.1:
DCD470X1
SEO KEYWORDS.2:
DEWALT
SIDE HANDLE INCLUDED (Y/N):
Yes
SUB-BRAND:
60V MAX
SWITCH TYPE:
Trigger
TORQUE (LB-IN):
0
UN Country Code_US:
156
VARIABLE SPEED (Y/N):
Yes
Voltage (V):
60 V
WARRANTY:
3LW1YS90D
WATT HOURS:
540
Manufactured By:
DEWALT
