Part Number: 52304100 / Vendor ID Number: 1150641 / Custom:

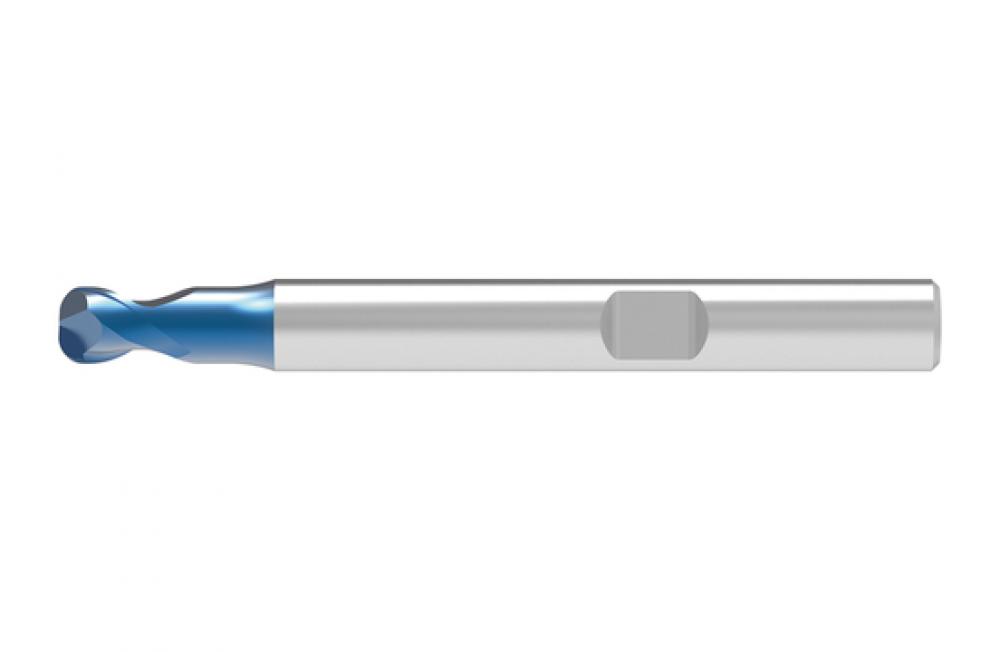

SOLID CARBIDE TORUS MILLING CUTTER

SOLID CARBIDE TORUS MILLING CUTTER
by Ceratizit

Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview
H.TO.10.30°.Z2.R3,0.HB.L TI2000
SOLID CARBIDE TORUS MILLING CUTTER H.TO.10.30°.Z2.R3,0.HB.L TI2000
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Head Length (Inch):
head length (inch):
Additional options that would change other selections
Head Length (mm):
Additional options that would change other selections
head length (mm):
Additional options that would change other selections
Specific Products:
Info & Guides
DXF
STP

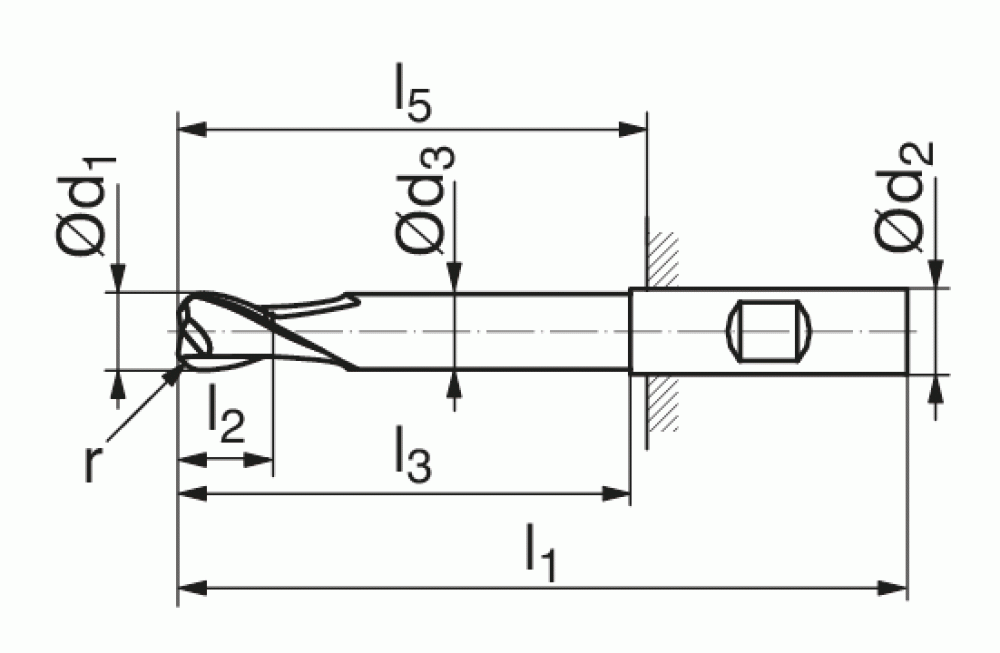

Technical Details
Details
Category:
Milling
Subcategory:
Solid
Subtype:
Corner Rounding End Mills
Coating:
TI2000
corner radius (inch):
0.118
corner radius (mm):
3
Cutting Diameter (inch):
0.394
Cutting Diameter (mm):
10
cutting direction:
RIGHT
head length (inch):
1.181
head length (mm):
30
Neck Diameter (Inch):
0.378
Neck Diameter (mm):
9.6
Overall Length (Inch):
2.835
Overall Length (mm):
72
shank length (inch):
1.575
shank length (mm):
40
Base Material:
VHM
Brand Name:
WNT
Connection diameter machine side (inch):
0.394
Connection diameter machine side (mm):
10
connection diameter machine side tolerance:
H5
Connection type machine side:
CYL
corner radius tolerance (inch):
±0.0004
corner radius tolerance (mm):
±0.01
depth of cut maximum (inch):
0.315
depth of cut maximum (mm):
8
flute helix angle (°):
30
flute helix hand:
LEFT
grade manufacturer's designation:
VHM
Implemenation:
LONG
Item Height (inches):
0.71
Item Length (inches):
3.5
Item Quantity:
1
Item Weight (lbs):
0.199
Item Width (inches):
0.71
Material group H (H= Main Application, N= Secondar:
H
Material group K (H= Main Application, N= Secondar:
N
Material Number:
5230410000
peripheral effective cutting edge count:
2
Product Line:
WNT PERFORMANCE
Product Name:
BLUE LINE
Protruding length (inch):
1.26
Protruding length (mm):
32
rake angle axial (°):
0
Manufactured By:
Ceratizit
