Part Number: 22000867 / Vendor ID Number: 10477 / Custom:

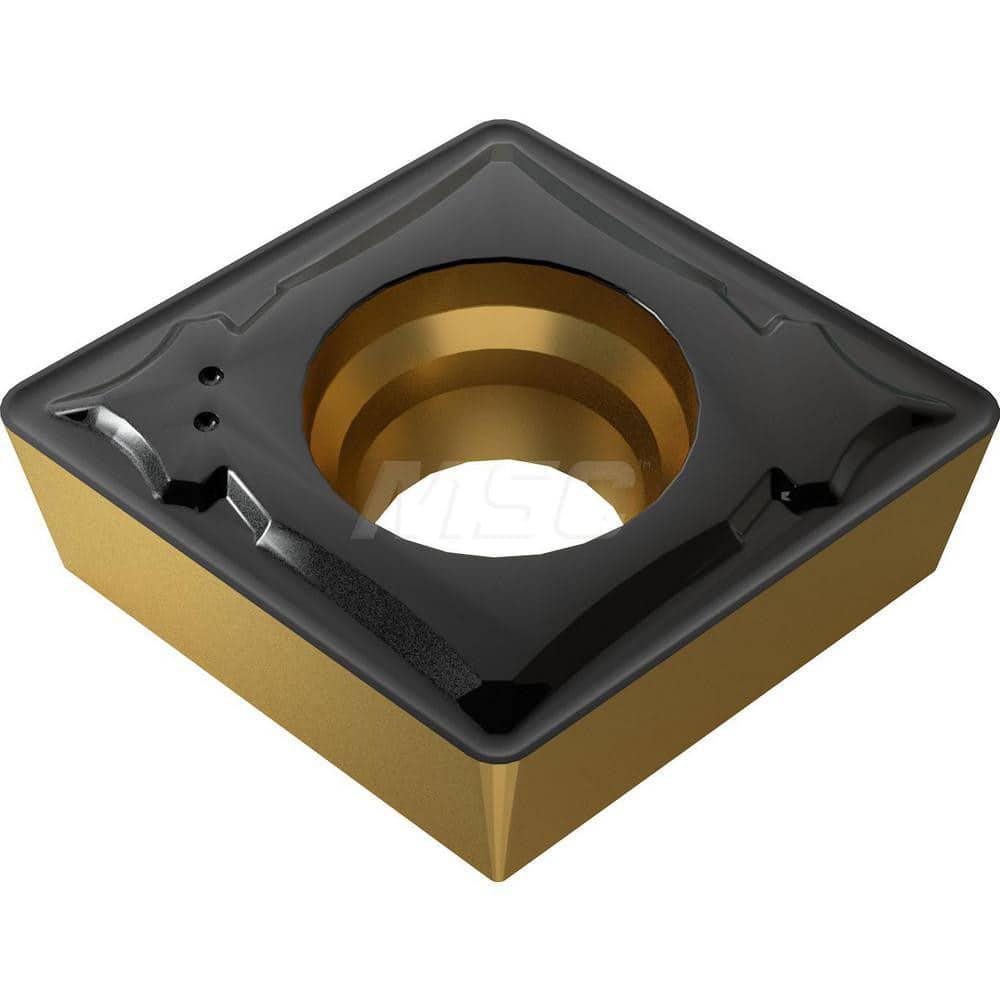

Carbide TURNING INSERT
by YG-1

Add To Quote

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Overview

CCMT120408UGYG3015/CCMT432UG

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Technical Details

Details

Category:

Holemaking

Subcategory:

Drilling

Subtype:

Indexable Drill Inserts

# of Cutting Edges:

Application:

Chipbreaker:

Chipbreaker Application:

First Choice for medium (stable application)

Chipbreaker Geometry:

Clearance Angle:

7°

Corner Radius (Decimal Inch):

0.03125

Corner Radius (frac):

0.03125

Corner Radius (in):

0.03125

Corner Radius (mm):

0.8

Depth of Cut:

Edge Length (fraction):

0.488

Edge Length (in):

0.488

Edge Length (mm):

12.3952

Grade:

YG3015

Height Tolerance (± inch):

0.005

Height Tolerance (± mm):

0.127

IC Tolerance (± inch):

0.003

IC Tolerance (± mm):

0.0762

Insert IC (fraction):

0.5

Insert IC (inch):

0.5

Insert IC (mm):

12.7

Insert Style:

With Screw hole, chipbreaker on one side only

Insert Type:

With Screw hole, chipbreaker on one side only

Material:

Carbide

Package Height (inches):

0.625

Package Length (inches):

Package Weight (lbs):

0.2175

Package Width (inches):

1.75

Shape:

Rhombic 80°

Sys. Of Measurement:

Inch

Thickness (fraction):

0.1875

Thickness (in):

0.1875

Thickness (mm):

4.7625

Thickness Tolerance (± inch):

0.005

Thickness Tolerance (± mm):

0.127

Type:

TURNING POSITIVE INSERT

Wiper Edge Clearance:

7°

Manufactured By:

YG-1
