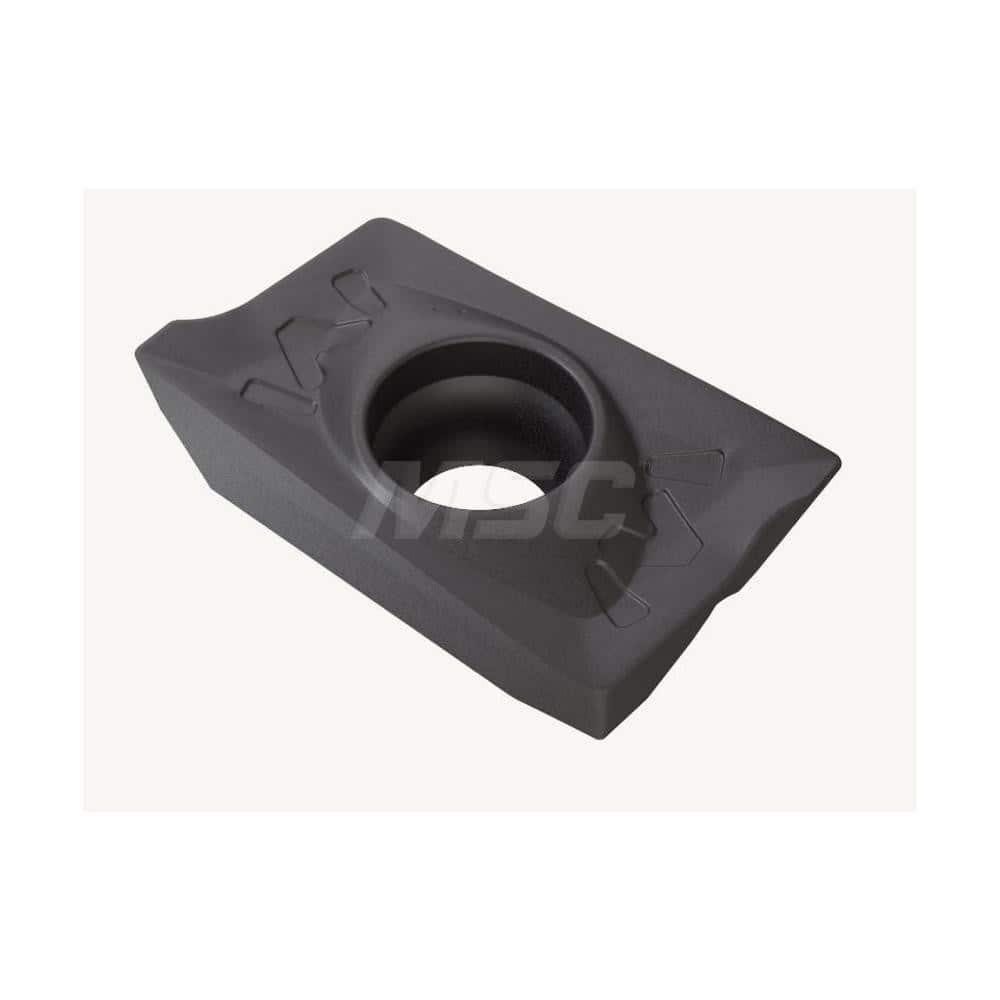

Carbide MILLING INSERT

Carbide MILLING INSERT
by YG-1

Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview
APKT160404TRYG622
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Technical Details
Details
Category:
Holemaking
Subcategory:
Drilling
Subtype:
Indexable Drill Inserts
# of Cutting Edges:
2
Application:
P
Chipbreaker:
TR
Chipbreaker Application:
For Hardened Steels, Reinforced Geometry
Chipbreaker Geometry:
TR
Clearance Angle:
11°
Corner Radius (Decimal Inch):
0.015625
Corner Radius (frac):
0.015625
Corner Radius (in):
0.015625
Corner Radius (mm):
0.396875
Cutting Edge Angle:
90°
Cutting Edge Length (fraction):
0.598
Cutting Edge Length (in):
0.598
Cutting Edge Lgth (mm):
15.1892
Depth of Cut:
14
Edge Condition:
Chamfered
Edge Length (fraction):
0.598425197
Edge Length (in):
0.598425197
Edge Length (mm):
15.2
Grade:
YG622
Height Tolerance (± inch):
0.000984252
Height Tolerance (± mm):
0.025
IC Tolerance (± inch):
0.002
IC Tolerance (± mm):
0.0508
Insert IC (fraction):
0.37
Insert IC (inch):
0.37
Insert IC (mm):
9.398
Insert Style:
With Screw hole, chipbreaker on one side only
Insert Type:
With Screw hole, chipbreaker on one side only
Material:
Carbide
Package Height (inches):
0.625
Package Length (inches):
4
Package Weight (lbs):
0.185
Package Width (inches):
1.75
Shape:
Parallelogram 80°
Sys. Of Measurement:
Inch
Thickness (fraction):
0.209
Thickness (in):
0.209
Thickness (mm):
5.3086
Thickness Tolerance (± inch):
0.005
Thickness Tolerance (± mm):
0.127
Type:
MILLING INSERT
Wiper Edge Clearance:
11°
Wiper Edge Length:
0.068
Manufactured By:
YG-1
