Item Sales Info
Part Number: 12000482 / Vendor ID Number: 10477 / Custom:

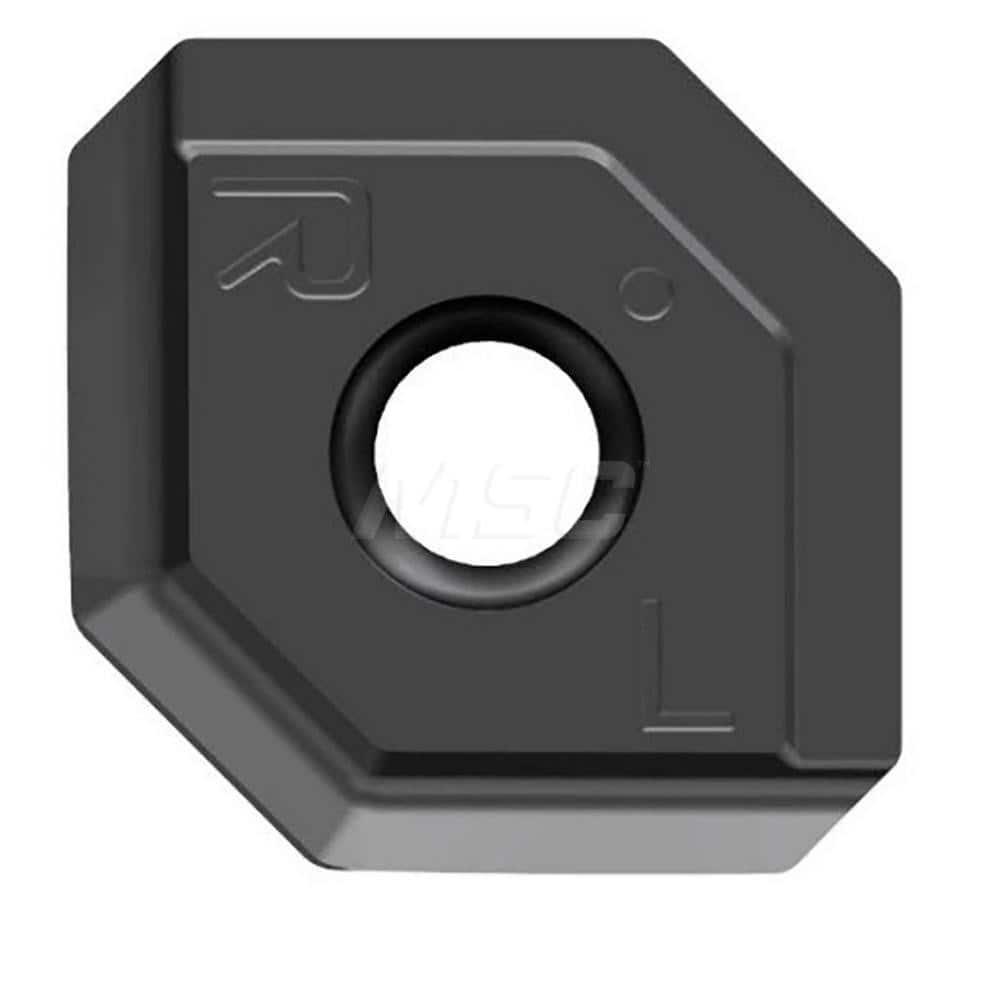

Carbide MILLING INSERT

Carbide MILLING INSERT
by YG-1

Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview
ONHU080612YG5020
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Technical Details
Details
Category:
Holemaking
Subcategory:
Drilling
Subtype:
Indexable Drill Inserts
# of Cutting Edges:
16
Application:
K
Chipbreaker Application:
General Application
Clearance Angle:
0°
Corner Radius (Decimal Inch):
0.046875
Corner Radius (frac):
0.046875
Corner Radius (in):
0.046875
Corner Radius (mm):
1.190625
Cutting Edge Angle:
45°
Depth of Cut:
5.5
Grade:
YG5020
Height Tolerance (± inch):
0.000984252
Height Tolerance (± mm):
0.025
IC Tolerance (± inch):
0.0005
IC Tolerance (± mm):
0.01
Insert IC (fraction):
0.795
Insert IC (inch):
0.795
Insert IC (mm):
8
Insert Style:
With Screw hole, chipbreaker on both sides
Insert Type:
With Screw hole, chipbreaker on both sides
Material:
Carbide
Package Height (inches):
0.75
Package Length (inches):
5.625
Package Weight (lbs):
0.588
Package Width (inches):
2.375
Shape:
Octogonal
Sys. Of Measurement:
Inch
Thickness (fraction):
0.228
Thickness (in):
0.228
Thickness (mm):
5.7912
Thickness Tolerance (± inch):
0.001
Thickness Tolerance (± mm):
0.01
Type:
MILLING INSERT
Wiper Edge Clearance:
0°
Wiper Edge Length:
0.417
Manufactured By:
YG-1
