Part Number: 3964134 / Vendor ID Number: 12061 / Custom:

KM50TSST2075M

KM50TSST2075M
by WIDIA

Add To Quote

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Overview

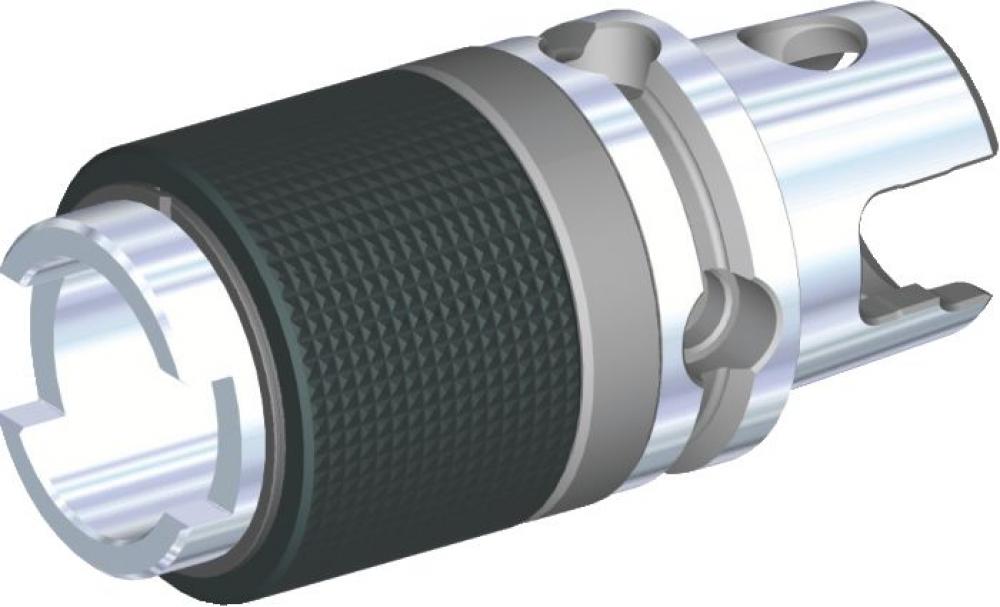

KM50TS SOLID TAP CHUCK Ø31X75MM

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Technical Details

Details

Category:

Tooling Systems

Subcategory:

Tool Holders

Subtype:

End Mill Holders, Adapters and Accessories

Adapter Style Machine Side:

KM

Adapter Style Machine Side-Marcom Calc:

KM

Adapter Type Machine Side:

Taper Shank

Adapter Type Workpiece Side:

SWB - Tap Chuck Adapter

ANSI Catalog Number:

KM50TSST2075M

Coolant Entry Style:

Concentric Axial Coolant

Coolant Exit:

Concentric Axial Coolant

Coolant Supply:

Yes

Front End Tool Type:

Tap Chuck Adapter

Hand of Tool:

N - Neutral

ISO Catalog Number:

KM50TSST2075M

MAKTX (SAP Description):

KM50TS SOLID TAP CHUCK Ø31X75MM

SAP Material Number:

3964134

[A]Coolant Hole Dia Inch:

0.1575

[A]Coolant Hole Diameter Metric:

4.0000

[CSMS]System Size Machine Side:

KM50TS

[CUBMS]Unit of Tool:

MM - Metric

[D1]Adapt/Shank/BoreDiaWKPS In:

1.2215

[D1]Adapt/Shank/BoreDiaWKPS In_12:

1.2215

[D1]Adapt/Shank/BoreDiaWKPS mm:

31.0270

[D1]Adapt/Shank/BoreDiaWKPS mm_13:

31.0270

[D2]Body Dia 1 Workpce Side In:

2.0000

[D2]Body Dia 1 Workpce Side In_25:

2.0000

[D2]Body Dia 1 Workpce Side mm:

50.8000

[D2]Body Dia 1 Workpce Side mm_26:

50.8000

[D]Adapter/Shank/Bore Dia Frac:

1.9685

[D]Adapter/Shank/Bore Dia Inch:

1.9685

[D]Adapter/Shank/Bore Dia mm:

50.0000

[H1] Centerline Height Inch:

0.0000

[H1] Centerline Height Inch_75:

0.0000

[H1] Centerline Height Metric:

0.0000

[H1] Centerline Height Metric_76:

0.0000

[L1]Gage Length 1 Inch:

2.9550

[L1]Gage Length 1 Inch_123:

2.9550

[L1]Gage Length 1 Metric:

75.0500

[L1]Gage Length 1 Metric_124:

75.0500

[L2]Usable Length Inch:

2.9547

[L2]Usable Length Metric:

75.0500

[L4] Flange-Front End Dist In:

2.3248

[L4] Flange-Front End Dist mm:

59.0500

[L9]Clamping Length Inch:

2.2047

[L9]Clamping Length Inch_153:

2.2047

[L9]Clamping Length Metric:

56.0000

[L9]Clamping Length Metric_154:

56.0000

[LF]Functional Length Inch:

2.9550

[LF]Functional Length Inch_158:

2.9550

[LF]Functional Length Metric:

75.0500

[LF]Functional Length Metric_159:

75.0500

[LS] Shank Length Inch:

1.2579

[LS] Shank Length Metric:

31.9500

[LTA]Tool Assembly Length Inch:

2.9550

[LTA]Tool Assembly Length mm:

75.0500

[L] Overall Length Inch:

4.2130

[L] Overall Length Inch_103:

4.2130

[L] Overall Length Metric:

107.0000

[L] Overall Length Metric_104:

107.0000

[TQCS]Tap Quick Change Size:

2

Manufactured By:

WIDIA
