Item Sales Info

Part Number: 1014178 / Vendor ID Number: 12061 / Custom:

100DA110M
by WIDIA

Add To Quote

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Overview

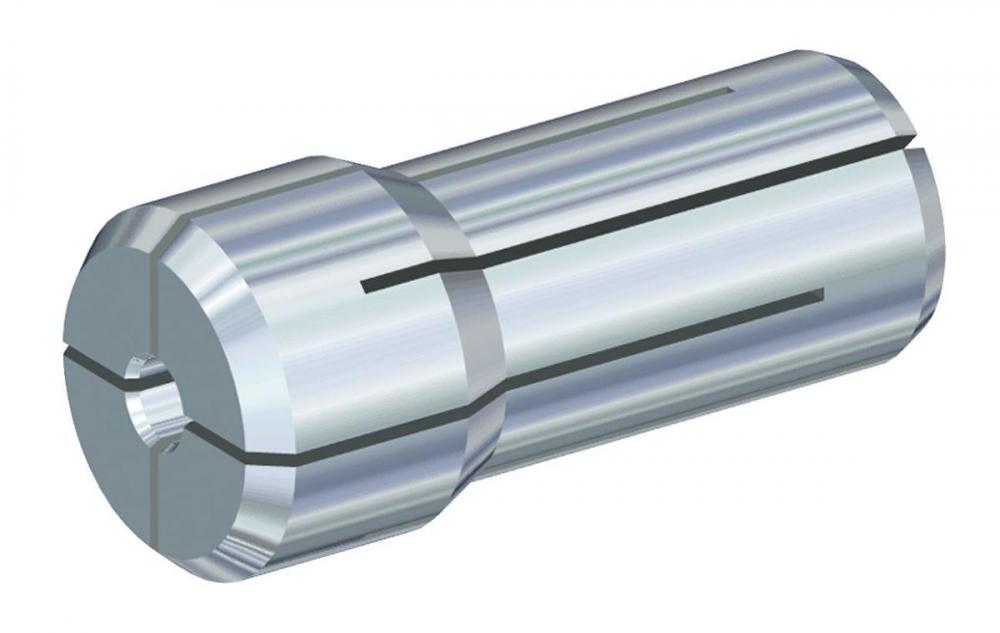

COLLET DA100

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Technical Details

Details

Category:

Tooling Systems

Subcategory:

Collets

Subtype:

DA Collets

ANSI Catalog Number:

100DA110M

Collet Style:

DA-Double Angle

Coolant Entry Style:

No Coolant

Coolant Exit:

No Coolant

Coolant Supply:

ISO Catalog Number:

100DA110M

MAKTX (SAP Description):

COLLET DA100

SAP Material Number:

1014178

[BDX]Body Diameter Max Inch:

0.7690

[BDX]Body Diameter Max Metric:

19.5330

[CCCN]Collet Capacity Min Inch:

0.4016

[CCCN]Collet Capacity Min mm:

10.2000

[CCCX]Collet Capacity Max Inch:

0.4331

[CCCX]Collet Capacity Max mm:

11.0000

[CST]Catalog Collet Series:

DA100

[CUBMS]Unit of Tool:

B - Both Metric & Inch

[D1]Clamping Diameter Max Frac:

.4331

[D1]Clamping Diameter Max Inch:

0.4331

[D1]Clamping Diameter Max mm:

11.0000

[L9]Clamping Hole Length Inch:

1.4370

[L9]Clamping Hole Length mm:

36.5000

[L]Overall Length Inch:

1.4380

[L]Overall Length Metric:

36.5250

Manufactured By:

WIDIA
