Part Number: U104417 / Vendor ID Number: 1128931 / Custom:
GNDLR166M-100

GNDLR166M-100
by Sumitomo

Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview

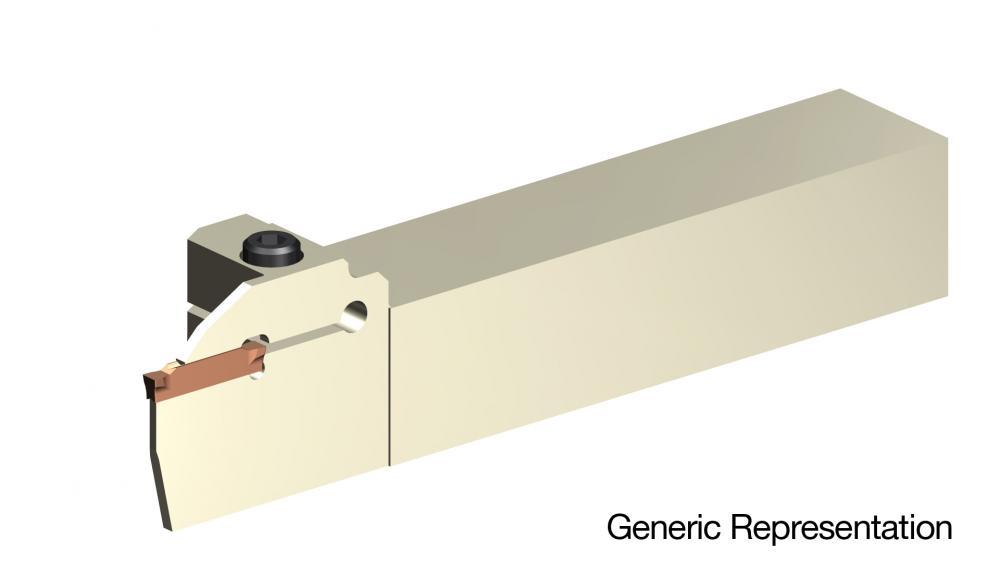

Groove Width 6mm, 6.35mm, 0.236", 0.250", Max Groove Depth 1 Inch, Deep OD Grooving Tool
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Maximum Depth of Cut:
Hand of Holder:
Head Length (mm):
Additional options that would change other selections
Insert Width (Decimal Inch):
Additional options that would change other selections
Specific Products:
Technical Details
Details
Maximum Depth of Cut:
1
Series:
GND
EDP No.:
U104417
Hand:
R
Head Length:
1.969
Insert Compatibility:
GCMN6250R0.5, 6mm, 6.35mm, 0.236", 0.250"
Insert Holding Method:
Clamp
Insert Holding Method:
Clamp
Insert Width:
0.25
Insert Width-2:
6.35
Maximum Depth of Cut-2:
25.4
Overall Length (OAL):
6
Product Code - ANSI:
GNDLR166M-100
Product Code - Sumitomo:
GNDLR166M-100
Shank Height:
1
Shank Width:
1
Tool Holder Style:
Deep OD Grooving Tool
Manufactured By:
Sumitomo
